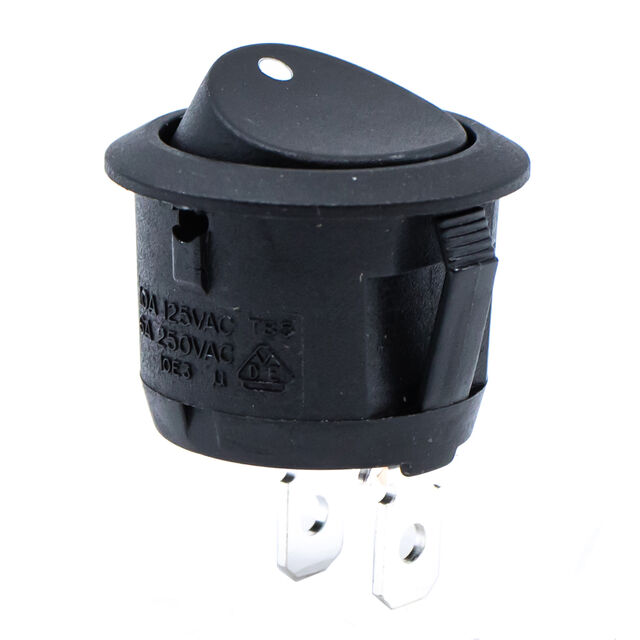

RR3112ABLKBLKNAF0
ActiveE-Switch
ROCKER; SPST-NO; POS: 2; ON-OFF; 10A/250VAC; BLACK; NONE; RR3112
Deep-Dive with AI
Search across all available documentation for this part.
RR3112ABLKBLKNAF0
ActiveE-Switch
ROCKER; SPST-NO; POS: 2; ON-OFF; 10A/250VAC; BLACK; NONE; RR3112
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RR3112ABLKBLKNAF0 |
|---|---|
| Actuator Marking | Dot |
| Actuator Type | Round |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 20000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [diameter] | 20.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
RR3112L Series
| Part | Actuator Type | Circuit | Color - Actuator/Cap | Switch Function | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Actuator Marking | Voltage Rating - AC | Mounting Type | Electrical Life | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | Round | SPST | Black | On-Off | 16 A | 20.2 mm | 20000 Cycles | 65 °C | 0 °C | Quick Connect - 0.187" (4.7mm) | Dot | 125 V | Panel Mount Snap-In | 6000 Cycles | ||
E-Switch | Round - Illuminated | SPST | Black | On-Off | 16 A | 20.2 mm | 20000 Cycles | 65 °C | 0 °C | Quick Connect - 0.187" (4.7mm) | No Marking | 125 V | Panel Mount Snap-In | 6000 Cycles | 3 VDC | LED Red |
E-Switch | Round - Illuminated | SPST | Black | On-Off | 16 A | 20.2 mm | 20000 Cycles | 65 °C | 0 °C | Quick Connect - 0.187" (4.7mm) | No Marking | 125 V | Panel Mount Snap-In | 6000 Cycles | 12 VDC | Blue LED |
E-Switch | Round - Illuminated | SPST | Black | On-Off | 16 A | 20.2 mm | 20000 Cycles | 65 °C | 0 °C | Quick Connect - 0.187" (4.7mm) | No Marking | 125 V | Panel Mount Snap-In | 6000 Cycles | 3 VDC | Green LED |
E-Switch | Round - Illuminated | SPST | Black | On-Off | 16 A | 20.2 mm | 20000 Cycles | 65 °C | 0 °C | Quick Connect - 0.187" (4.7mm) | No Marking | 125 V | Panel Mount Snap-In | 6000 Cycles | Neon Red | |
E-Switch | Round - Illuminated | SPST | Red | On-Off | 16 A | 20.2 mm | 20000 Cycles | 65 °C | 0 °C | Quick Connect - 0.187" (4.7mm) | No Marking | 125 V | Panel Mount Snap-In | 6000 Cycles | 12 VDC | LED Red |
E-Switch | Round - Illuminated | SPST | Black | On-Off | 16 A | 20.2 mm | 20000 Cycles | 65 °C | 0 °C | Quick Connect - 0.187" (4.7mm) | No Marking | 125 V | Panel Mount Snap-In | 6000 Cycles | 12 VDC | LED Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.51 | |
| 10 | $ 1.35 | |||
| 100 | $ 1.16 | |||
| 1000 | $ 1.00 | |||
Description
General part information
RR3112L Series
Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
