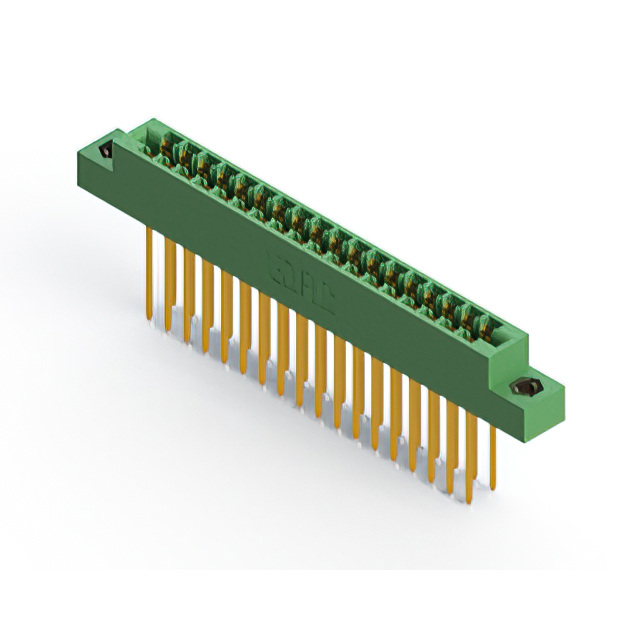

338-036-541-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 36POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

338-036-541-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 36POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	338-036-541-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Threaded Insert, Flush Mount, M3-0.5
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	36
Number of Positions/Bay/Row [custom]	18
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

338-036 Series

Part	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Mounting Type	Termination	Contact Material	Read Out	Contact Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Finish	Number of Positions	Card Type	Material - Insulation	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Termination Rows	Number of Rows	Features
EDAC Inc. 338-036-541-203	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Through Hole	Wire Wrap	Copper Alloy	Dual	Cantilever	Female	10 Áin	0.25 Ám	Green	Gold	36	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	18	125 °C	-65 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	2
EDAC Inc. 338-036-541-268		4-40 Flush Mount Threaded Insert Top Opening		Through Hole	Wire Wrap	Copper Alloy	Dual	Cantilever	Female	10 Áin	0.25 Ám	Green	Gold	36	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	18	125 °C	-65 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	2	Card Guides
EDAC Inc. 338-036-541-202	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Through Hole	Wire Wrap	Copper Alloy	Dual	Cantilever	Female	10 Áin	0.25 Ám	Green	Gold	36	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	18	125 °C	-65 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	2
EDAC Inc. 338-036-541-207		Flush Mount M3-0.5 Threaded Insert Top Opening		Through Hole	Wire Wrap	Copper Alloy	Dual	Cantilever	Female	10 Áin	0.25 Ám	Green	Gold	36	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	18	125 °C	-65 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	2
EDAC Inc. 338-036-541-258		4-40 Flush Mount Threaded Insert Top Opening		Through Hole	Wire Wrap	Copper Alloy	Dual	Cantilever	Female	10 Áin	0.25 Ám	Green	Gold	36	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	18	125 °C	-65 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	2	Card Guides
EDAC Inc. 338-036-541-201				Through Hole	Wire Wrap	Copper Alloy	Dual	Cantilever	Female	10 Áin	0.25 Ám	Green	Gold	36	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	18	125 °C	-65 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	2
EDAC Inc. 338-036-541-278		4-40 Flush Mount Threaded Insert Top Opening		Through Hole	Wire Wrap	Copper Alloy	Dual	Cantilever	Female	10 Áin	0.25 Ám	Green	Gold	36	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	18	125 °C	-65 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	2	Card Guides
EDAC Inc. 338-036-541-204	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Through Hole	Wire Wrap	Copper Alloy	Dual	Cantilever	Female	10 Áin	0.25 Ám	Green	Gold	36	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	18	125 °C	-65 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 41.33

Description

General part information

338-036 Series

36 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
