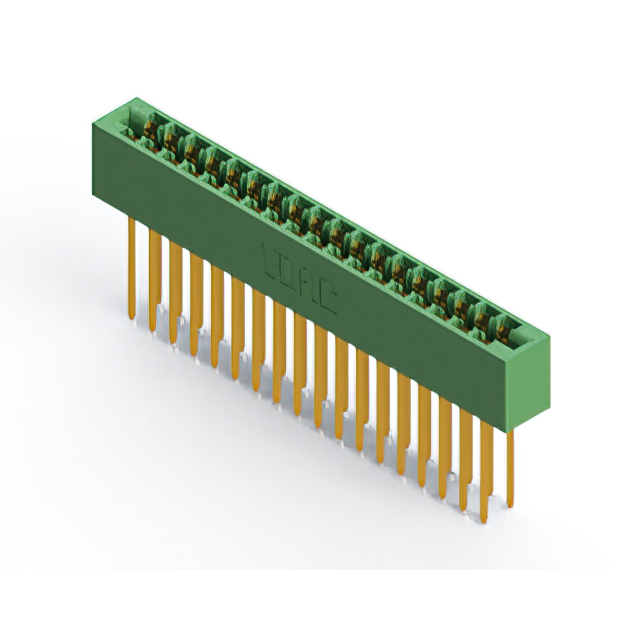

338-036-541-201
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
338-036-541-201
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 338-036-541-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
338-036 Series
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Termination | Contact Material | Read Out | Contact Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Finish | Number of Positions | Card Type | Material - Insulation | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Termination Rows | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Through Hole | Wire Wrap | Copper Alloy | Dual | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Gold | 36 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 18 | 125 °C | -65 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 2 | 2 | |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Wire Wrap | Copper Alloy | Dual | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Gold | 36 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 18 | 125 °C | -65 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 2 | 2 | Card Guides | ||
EDAC Inc. | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Through Hole | Wire Wrap | Copper Alloy | Dual | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Gold | 36 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 18 | 125 °C | -65 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 2 | 2 | |
EDAC Inc. | Flush Mount M3-0.5 Threaded Insert Top Opening | Through Hole | Wire Wrap | Copper Alloy | Dual | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Gold | 36 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 18 | 125 °C | -65 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 2 | 2 | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Wire Wrap | Copper Alloy | Dual | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Gold | 36 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 18 | 125 °C | -65 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 2 | 2 | Card Guides | ||
EDAC Inc. | Through Hole | Wire Wrap | Copper Alloy | Dual | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Gold | 36 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 18 | 125 °C | -65 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 2 | 2 | ||||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Wire Wrap | Copper Alloy | Dual | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Gold | 36 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 18 | 125 °C | -65 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 2 | 2 | Card Guides | ||
EDAC Inc. | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Through Hole | Wire Wrap | Copper Alloy | Dual | Cantilever | Female | 10 Áin | 0.25 Ám | Green | Gold | 36 | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 18 | 125 °C | -65 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 2 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
338-036 Series
36 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
