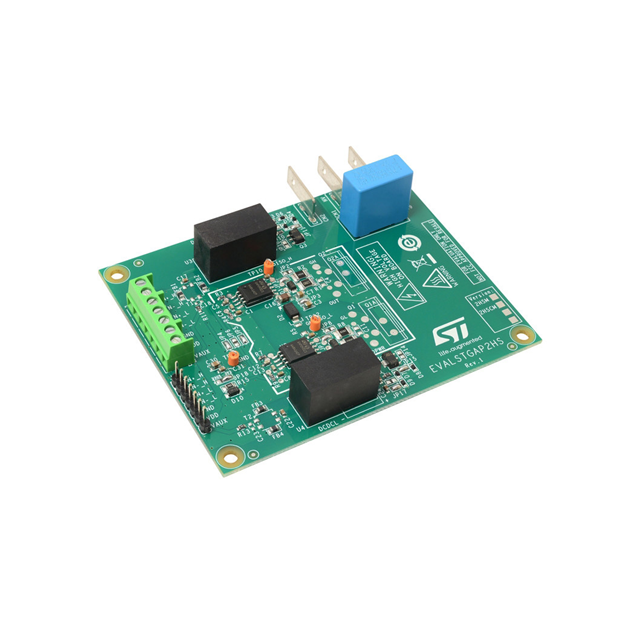

EVALSTGAP2HSM
ActiveDEMONSTRATION BOARD FOR STGAP2HSM ISOLATED 4 A SINGLE GATE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
EVALSTGAP2HSM
ActiveDEMONSTRATION BOARD FOR STGAP2HSM ISOLATED 4 A SINGLE GATE DRIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALSTGAP2HSM |
|---|---|
| Contents | Board(s) |
| Function | Gate Driver |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | STGAP2HSM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVALSTGAP2HSCM Series
The EVALSTGAP2HSCM is an isolated single gate driver.
The gate driver is characterized by 4 A current capability and rail-to-rail outputs, making the device suitable also for high power inverter applications such as motor drivers in industrial applications equipped with MOSFET / IGBT power switch.
The configuration featuring single output pin and Miller CLAMP function allows avoiding gate spikes during fast commutations in half-bridge topologies.
