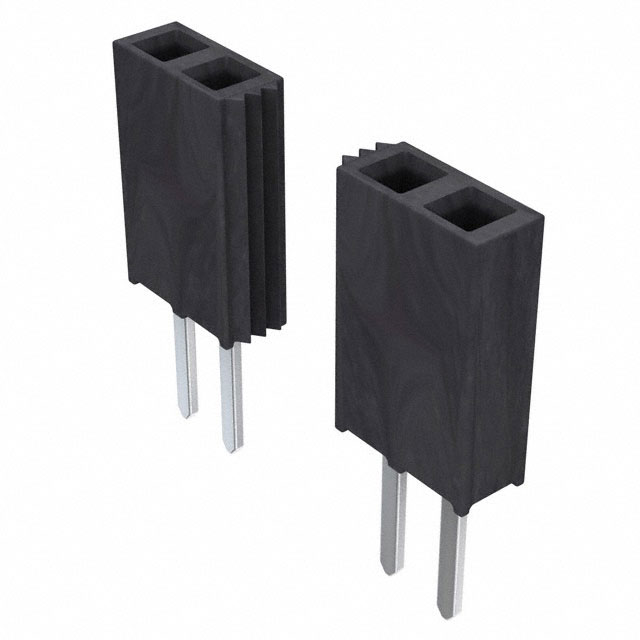

SSW-149-02-T-S

Active

Samtec Inc.

CONN RCPT 49POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SSW, SSQ Datasheet - Thru Hole

SSW-149-02-T-S

Active

Samtec Inc.

CONN RCPT 49POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet SSW, SSQ Datasheet - Thru Hole

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSW-149-02-T-S

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	4.93 mm
Contact Length - Post	0.194 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	4.7 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	49
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder

SSW-149 Series

Part	Material Flammability Rating	Number of Rows	Fastening Type	Contact Material	Insulation Height	Insulation Height	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Type	Connector Type	Termination	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Shape	Style	Number of Positions	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. SSW-149-02-T-D-RA	UL94 V-0	2	Push-Pull	Phosphor Bronze	0.195 in	4.95 mm	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	105 ░C	-55 °C	4.7 A	Through Hole Right Angle	Receptacle	Solder	Tin	2.54 mm	0.1 in	Black	Square	Board to Board Cable	98	All	Forked
Samtec Inc. SSW-149-02-T-D	UL94 V-0	2	Push-Pull	Phosphor Bronze	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	105 ░C	-55 °C	4.7 A	Through Hole	Receptacle	Solder	Tin	4.93 mm	0.194 in	Black	Square	Board to Board Cable	98	All	Forked
Samtec Inc. SSW-149-02-G-D	UL94 V-0	2	Push-Pull	Phosphor Bronze	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	125 °C	-55 °C	4.7 A	Through Hole	Receptacle	Solder	Gold	4.93 mm	0.194 in	Black	Square	Board to Board Cable	98	All	Forked	0.51 µm	20 µin	Gold	3 µin	0.076 µm
Samtec Inc. SSW-149-03-S-D-RA	UL94 V-0	2	Push-Pull	Phosphor Bronze	0.195 in	4.95 mm	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	125 °C	-55 °C	4.7 A	Through Hole Right Angle	Receptacle	Solder	Tin			Black	Square	Board to Board Cable	98	All	Forked	0.76 Ám	30 Áin	Gold			7.62 mm	0.3 "
Samtec Inc. SSW-149-02-G-D-RA	UL94 V-0	2	Push-Pull	Phosphor Bronze	0.195 in	4.95 mm	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	125 °C	-55 °C	4.7 A	Through Hole Right Angle	Receptacle	Solder	Gold	2.54 mm	0.1 in	Black	Square	Board to Board Cable	98	All	Forked	0.51 µm	20 µin	Gold	3 µin	0.076 µm
Samtec Inc. SSW-149-21-S-T	UL94 V-0	3	Push-Pull	Phosphor Bronze	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	125 °C	-55 °C	4.7 A	Through Hole	Receptacle	Solder	Tin	2.64 mm	0.104 in	Black	Square	Board to Board Cable	147	All	Forked	0.76 Ám	30 Áin	Gold
Samtec Inc. SSW-149-03-G-D-RA	UL94 V-0	2	Push-Pull	Phosphor Bronze	0.195 in	4.95 mm	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	125 °C	-55 °C	4.7 A	Through Hole Right Angle	Receptacle	Solder	Gold			Black	Square	Board to Board Cable	98	All	Forked	0.51 µm	20 µin	Gold	3 µin	0.076 µm	7.62 mm	0.3 "
Samtec Inc. SSW-149-02-T-S	UL94 V-0	1	Push-Pull	Phosphor Bronze	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)			0.1 in	2.54 mm	105 ░C	-55 °C	4.7 A	Through Hole	Receptacle	Solder	Tin	4.93 mm	0.194 in	Black	Square	Board to Board Cable	49	All	Forked
Samtec Inc. SSW-149-01-F-D	UL94 V-0	2	Push-Pull	Phosphor Bronze	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.1 in	2.54 mm	125 °C	-55 °C	4.7 A	Through Hole	Receptacle	Solder	Tin	2.64 mm	0.104 in	Black	Square	Board to Board Cable	98	All	Forked	0.076 µm	3 µin	Gold
Samtec Inc. SSW-149-02-S-S	UL94 V-0	1	Push-Pull	Phosphor Bronze	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)			0.1 in	2.54 mm	125 °C	-55 °C	4.7 A	Through Hole	Receptacle	Solder	Tin	4.93 mm	0.194 in	Black	Square	Board to Board Cable	49	All	Forked	0.76 Ám	30 Áin	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.77
		10	$ 5.21
		100	$ 4.57
		500	$ 3.85
		1000	$ 3.36

Description

General part information

SSW-149 Series

49 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
