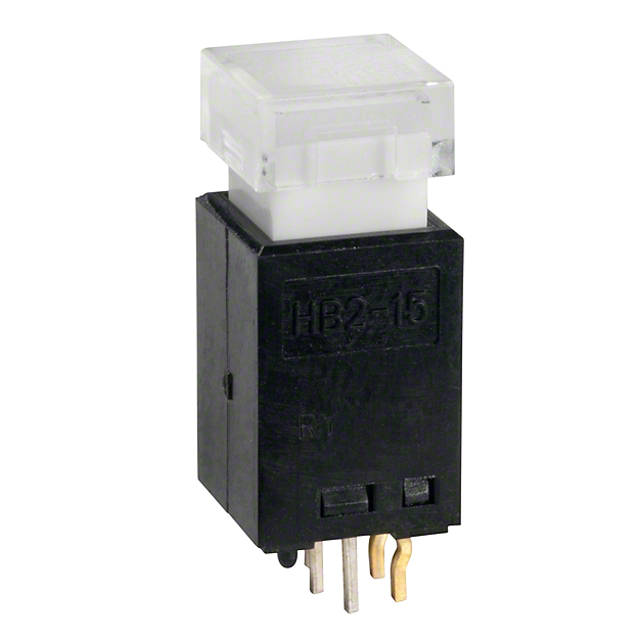

HB215SKG03CE-JB

NKK Switches

SUBMINIATURE AUDIO/VIDEO PUSHBUTTON

Search across all available documentation for this part.

NKK Switches

SUBMINIATURE AUDIO/VIDEO PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Specification	HB215SKG03CE-JB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Illumination Type, Color	LED, Red/Yellow
Illumination Voltage (Nominal)	2 VDC, 2.1 VDC
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Mechanical Life	Current Rating (Amps)	Color - Actuator/Cap	Type	Circuit	Actuator Type	Illumination Voltage (Nominal)	Termination Style	Voltage Rating - DC	Voltage Rating - AC	Mounting Type	Switch Function	Illumination Type, Color	Electrical Life	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches HB215SKG03CF-JB	100000 Cycles	0.4 VA	Clear	Illuminated Standard	SPST-NO	Button Square	2 VDC 2.25 VDC	PC Pin	28 V	28 V	Through Hole	Off-Mom	Green/Red LED	100000 Cycles	No Marking	50 °C	-25 °C
NKK Switches HB215SKG03CE	100000 Cycles	0.4 VA		Illuminated Standard	SPST-NO	Plunger for Cap	2 VDC 2.1 VDC	PC Pin	28 V	28 V	Through Hole	Off-Mom	LED Red/Yellow	100000 Cycles	No Marking	50 °C	-25 °C
NKK Switches HB215SKG03CE-JB	100000 Cycles	0.4 VA	Clear	Illuminated Standard	SPST-NO	Button Square	2 VDC 2.1 VDC	PC Pin	28 V	28 V	Through Hole	Off-Mom	LED Red/Yellow	100000 Cycles	No Marking	50 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Through Hole
