HB215SKG03CF-JB

Active

NKK Switches

PUSHBUTTON SWITCH, HB2 SERIES, SPST-NO, OFF-(ON), SQUARE, TRANSPARENT

Find alt

Alpha

HB215SKG03CF-JB

Active

NKK Switches

PUSHBUTTON SWITCH, HB2 SERIES, SPST-NO, OFF-(ON), SQUARE, TRANSPARENT

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

HB215SK Series

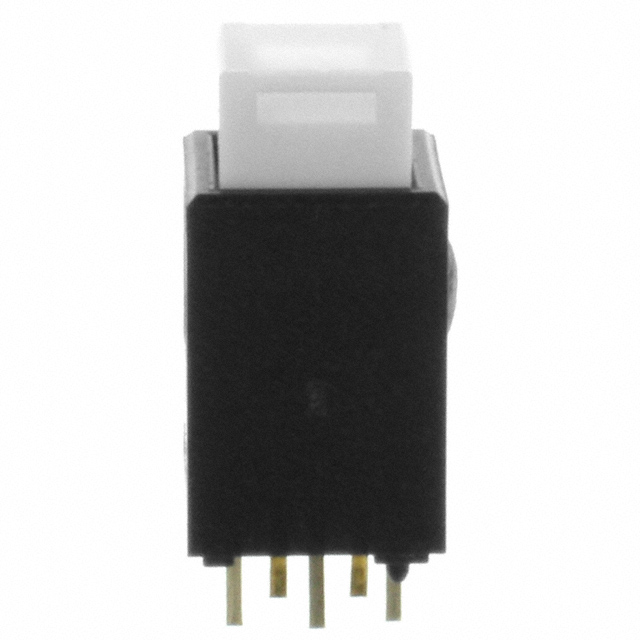

The HB215SKG03CF-JB is a subminiature red-green bicoloured illuminated SPST square Pushbutton Switch with cap having clear lens and white diffuser. The PC terminals are made of phosphor bronze with gold finish and crimped power terminals ensure secure PCB mounting and prevent dislodging during soldering. Quiet actuation combined with crisp tactile feedback suited for broadcast equipment. The sliding twin crossbar (STC) mechanism provides unequalled logic-level reliability, contact stability, smooth positive detent actuation and long life.

Technical Specifications

Parameters and characteristics for this part

Specification	HB215SKG03CF-JB

Actuator Marking	No Marking
Actuator Type	Square, Button
Circuit	SPST-NO
Color	Green, Red
Color - Actuator/Cap	Clear (White Filter/Diffuser)
Current Rating	0.4 VA
Electrical Life (Cycles)	100000 Cycles
Illumination Type	LED
Illumination Voltage (Nominal)	2.0, 2.25 VDC
Illumination Voltage (Nominal)	2 VDC, 2.25 VDC
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Through Hole
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-25 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard, Illuminated
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

HB215SK Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Color	Illumination Type	Termination Style	Illumination Voltage (Nominal)	Illumination Voltage (Nominal)	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating	Switch Function	Voltage Rating - DC	Type	Actuator Marking	Mounting Type	Voltage Rating - AC	Circuit	Actuator Type	Color - Actuator/Cap
NKK Switches HB215SKG03CF	100000 Cycles	100000 Cycles	Green Red	LED	PC Pin	2.0 2.25 VDC	2 VDC 2.25 VDC	-25 °C	50 °C	0.4 VA	Off-Mom	28 V	Illuminated Standard	No Marking	Through Hole	28 V	SPST-NO	Plunger for Cap
NKK Switches HB215SKG03CF-JB	100000 Cycles	100000 Cycles	Green Red	LED	PC Pin	2.0 2.25 VDC	2 VDC 2.25 VDC	-25 °C	50 °C	0.4 VA	Off-Mom	28 V	Illuminated Standard	No Marking	Through Hole	28 V	SPST-NO	Button Square	Clear (White Filter/Diffuser)
NKK Switches HB215SKG03CE-JB	100000 Cycles	100000 Cycles	Red Yellow	LED	PC Pin	2.0 2.1 VDC	2 VDC 2.1 VDC	-25 °C	50 °C	0.4 VA	Off-Mom	28 V	Illuminated Standard	No Marking	Through Hole	28 V	SPST-NO	Button Square	Clear (White Filter/Diffuser)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

Product Change Notice EN

Datasheet

Technical Data Sheet EN
