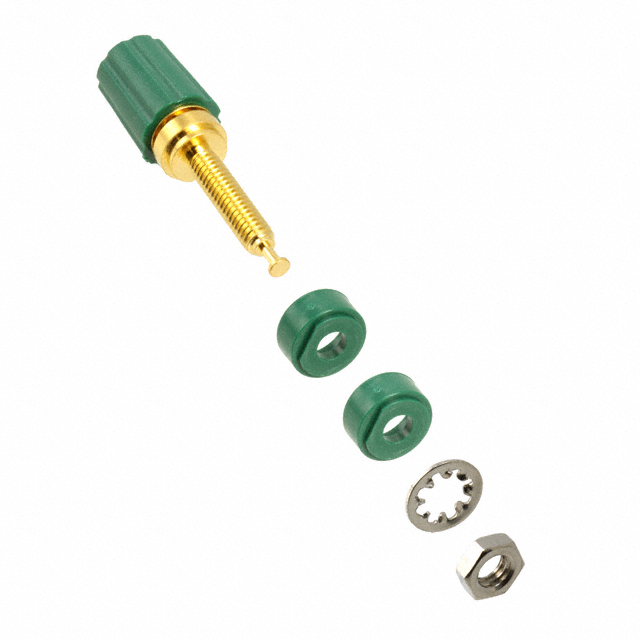

3750-5

Active

Pomona Electronics

CONN BIND POST KNURLED GREEN

Search across all available documentation for this part.

Active

Pomona Electronics

CONN BIND POST KNURLED GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	3750-5

Color	Green
Cross Hole Diameter [diameter]	0.096 in
Cross Hole Diameter [diameter]	2.43 mm
Current Rating (Amps)	15 A
Head Size	11.18 mm
Head Size [diameter]	0.44 "
Material - Body	Brass
Material - Insulation	Polycarbonate
Material - Insulation	PC
Nut Material	Brass
Nut Plating	Nickel
Plating - Body [custom]	Gold
Termination	Turret, Threaded
Termination Thread	8-32
Type	Standard
Voltage Rating	33 VAC, 70 VDC

Part	Head Size [diameter]	Head Size	Nut Material	Nut Plating	Current Rating (Amps)	Termination	Type	Material - Insulation	Material - Insulation	Cross Hole Diameter [diameter]	Cross Hole Diameter [diameter]	Material - Body	Voltage Rating	Termination Thread	Plating - Body [custom]	Color
Pomona Electronics 3750-2	0.44 "	11.18 mm	Brass	Nickel	15 A	Threaded Turret	Standard	Polycarbonate	PC	0.096 in	2.43 mm	Brass	33 VAC 70 VDC	8-32	Gold	Red
Pomona Electronics 3750-8	0.44 "	11.18 mm	Brass	Nickel	15 A	Threaded Turret	Standard	Polycarbonate	PC	0.096 in	2.43 mm	Brass	33 VAC 70 VDC	8-32	Gold	Gray
Pomona Electronics 3750-0	0.44 "	11.18 mm	Brass	Nickel	15 A	Threaded Turret	Standard	Polycarbonate	PC	0.096 in	2.43 mm	Brass	33 VAC 70 VDC	8-32	Gold	Black
Pomona Electronics 3750-5	0.44 "	11.18 mm	Brass	Nickel	15 A	Threaded Turret	Standard	Polycarbonate	PC	0.096 in	2.43 mm	Brass	33 VAC 70 VDC	8-32	Gold	Green
Pomona Electronics 3750-4	0.44 "	11.18 mm	Brass	Nickel	15 A	Threaded Turret	Standard	Polycarbonate	PC	0.096 in	2.43 mm	Brass	33 VAC 70 VDC	8-32	Gold	Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Binding Post Connector Standard Knurled Green Gold
