3750-2

Active

Pomona Electronics

BANANA CONNECTORS / ALLIGATOR CLIPS ROHS

Search across all available documentation for this part.

Active

Pomona Electronics

BANANA CONNECTORS / ALLIGATOR CLIPS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	3750-2

Color	Red
Cross Hole Diameter [diameter]	0.096 in
Cross Hole Diameter [diameter]	2.43 mm
Current Rating (Amps)	15 A
Head Size	11.18 mm
Head Size [diameter]	0.44 "
Material - Body	Brass
Material - Insulation	Polycarbonate
Material - Insulation	PC
Nut Material	Brass
Nut Plating	Nickel
Plating - Body [custom]	Gold
Termination	Turret, Threaded
Termination Thread	8-32
Type	Standard
Voltage Rating	33 VAC, 70 VDC

Part	Head Size [diameter]	Head Size	Nut Material	Nut Plating	Current Rating (Amps)	Termination	Type	Material - Insulation	Material - Insulation	Cross Hole Diameter [diameter]	Cross Hole Diameter [diameter]	Material - Body	Voltage Rating	Termination Thread	Plating - Body [custom]	Color
Pomona Electronics 3750-2	0.44 "	11.18 mm	Brass	Nickel	15 A	Threaded Turret	Standard	Polycarbonate	PC	0.096 in	2.43 mm	Brass	33 VAC 70 VDC	8-32	Gold	Red
Pomona Electronics 3750-8	0.44 "	11.18 mm	Brass	Nickel	15 A	Threaded Turret	Standard	Polycarbonate	PC	0.096 in	2.43 mm	Brass	33 VAC 70 VDC	8-32	Gold	Gray
Pomona Electronics 3750-0	0.44 "	11.18 mm	Brass	Nickel	15 A	Threaded Turret	Standard	Polycarbonate	PC	0.096 in	2.43 mm	Brass	33 VAC 70 VDC	8-32	Gold	Black
Pomona Electronics 3750-5	0.44 "	11.18 mm	Brass	Nickel	15 A	Threaded Turret	Standard	Polycarbonate	PC	0.096 in	2.43 mm	Brass	33 VAC 70 VDC	8-32	Gold	Green
Pomona Electronics 3750-4	0.44 "	11.18 mm	Brass	Nickel	15 A	Threaded Turret	Standard	Polycarbonate	PC	0.096 in	2.43 mm	Brass	33 VAC 70 VDC	8-32	Gold	Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

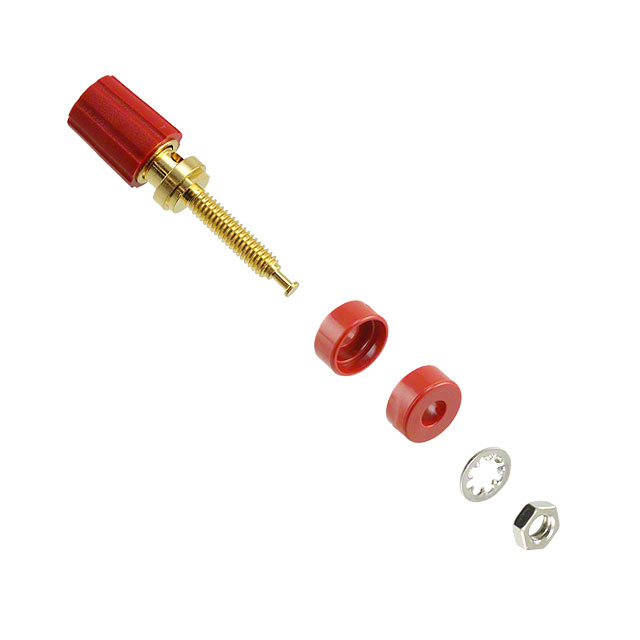

Binding Post Connector Standard Knurled Red Gold
