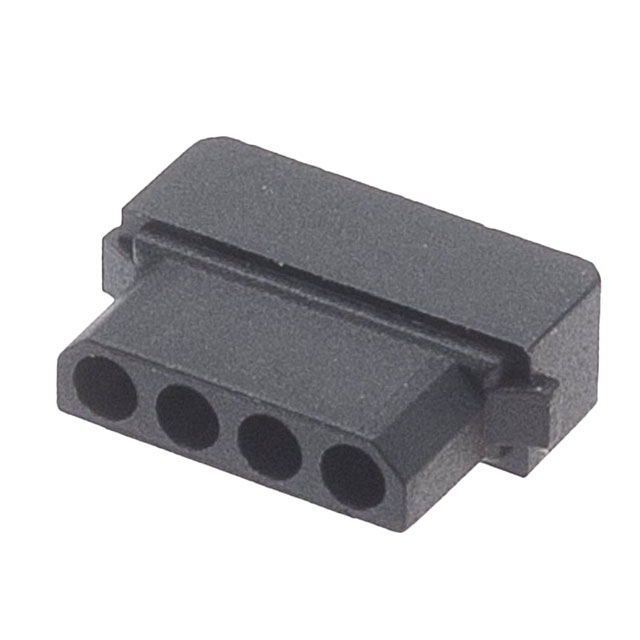

M80-1010498S
ActiveHarwin Inc.
RECTANGULAR CONNECTOR, DATAMATE L-TEK M80-101 SERIES, 4 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 1 ROW
M80-1010498S
ActiveHarwin Inc.
RECTANGULAR CONNECTOR, DATAMATE L-TEK M80-101 SERIES, 4 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 1 ROW
Description
General part information
M80-101 Series
4 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-1010498S |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polyester, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
