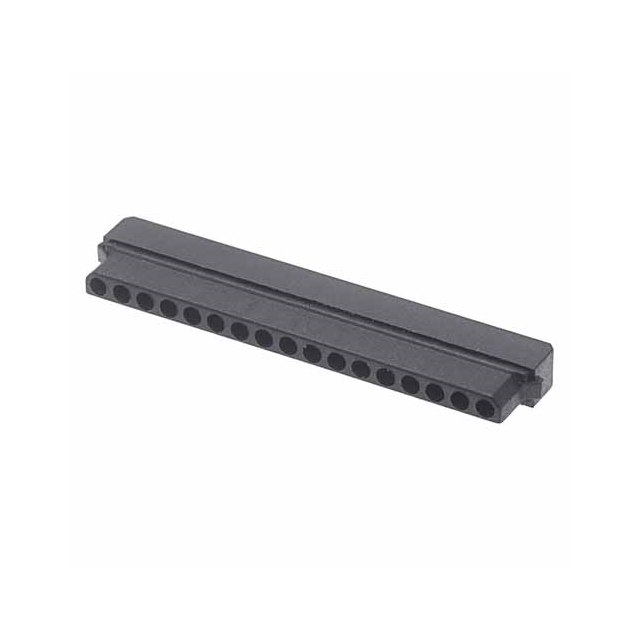

M80-1011798S

Active

Harwin Inc.

17 POS. FEMALE SIL CABLE HOUSING FOR LATCHES ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

17 POS. FEMALE SIL CABLE HOUSING FOR LATCHES ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Insulation Material	Contact Termination	Contact Type	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Fastening Type	Note	Connector Type	Number of Positions
Harwin Inc. M80-1010598S	-55 °C	125 °C	Black	Polyester Glass Filled	Crimp	Female Socket	1	0.079 in	2 mm	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Receptacle
Harwin Inc. M80-1011798S	-55 °C	125 °C	Black	Polyester Glass Filled	Crimp	Female Socket	1	0.079 in	2 mm	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Receptacle
Harwin Inc. M80-1010298S	-55 °C	125 °C	Black	Polyester Glass Filled	Crimp	Female Socket	1	0.079 in	2 mm	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Receptacle	2
Harwin Inc. M80-1010698S	-55 °C	125 °C	Black	Polyester Glass Filled	Crimp	Female Socket	1	0.079 in	2 mm	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Receptacle	6
Harwin Inc. M80-1010498S	-55 °C	125 °C	Black	Polyester Glass Filled	Crimp	Female Socket	1	0.079 in	2 mm	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Receptacle	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
