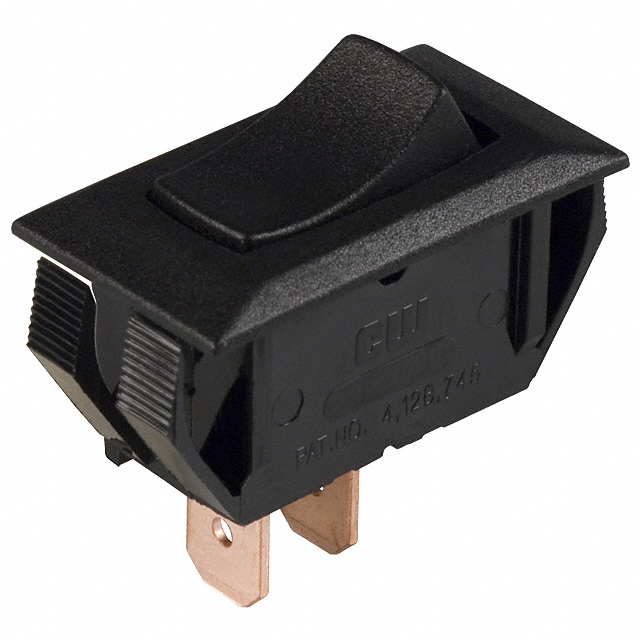

GRS-2011-2600
ActiveCW Industries
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GRS-2011-2600
ActiveCW Industries
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GRS-2011-2600 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 25000 Steps |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 28.58 mm |
| Panel Cutout Dimensions [y] | 13.97 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
GRS-2011 Series
| Part | Mechanical Life | Termination Style | Mounting Type | Electrical Life | Actuator Marking | Actuator Type | Circuit | Voltage Rating - AC | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Switch Function | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | 25000 Steps | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 25000 Steps | ON OFF Vertical | Concave (Curved) | SPST | 125 V | Black | -20 C | 105 ░C | 13.97 mm | 28.58 mm | On-Off | 13 A | |
CW Industries | 100000 Cycles | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 25000 Steps | No Marking | Concave (Curved) | SPST | 125 V | Black | -20 C | 105 ░C | 13.97 mm | 28.58 mm | On-Off | 16 A | |
CW Industries | 25000 Steps | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 25000 Steps | No Marking | Concave (Curved) | SPST | 125 V | Black | -20 C | 105 ░C | 13.97 mm | 28.58 mm | On-Off | 16 A | Terminal Barriers |
CW Industries | 25000 Steps | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 25000 Steps | O - | Concave (Curved) | SPST | 125 V | White | -20 C | 105 ░C | 13.97 mm | 28.58 mm | On-Off | 8 A | |
CW Industries | 25000 Steps | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 25000 Steps | No Marking | Concave (Curved) | SPST-NO | 125 V | Black | -20 C | 105 ░C | 12.19 mm | 27.23 mm | Off-Mom | 13 A | Terminal Barriers |
CW Industries | 25000 Steps | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 25000 Steps | No Marking | Concave (Curved) | SPST | 125 V | Black | -20 C | 105 ░C | 12.19 mm | 27.23 mm | On-Off | 16 A | Terminal Barriers |
CW Industries | 100000 Cycles | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 25000 Steps | O - | Concave (Curved) | SPST | 125 V | Black | -20 C | 105 ░C | 13.97 mm | 28.58 mm | On-Off | 16 A | |
CW Industries | 25000 Steps | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 25000 Steps | No Marking | Concave (Curved) | SPST-NC | 125 V | Black | -20 C | 105 ░C | 12.19 mm | 27.23 mm | On-Mom | 13 A | Polarized |
CW Industries | 25000 Steps | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 25000 Steps | No Marking | Concave (Curved) | SPST | 125 V | Black | -20 C | 105 ░C | 12.19 mm | 27.23 mm | On-Off | 16 A | Terminal Barriers |
CW Industries | 25000 Steps | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | 25000 Steps | HI LO | Concave (Curved) | SPST | 125 V | Black | -20 C | 105 ░C | 13.97 mm | 28.58 mm | On-Off | 13 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.85 | |
| 10 | $ 0.73 | |||
| 25 | $ 0.69 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.59 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.54 | |||
Description
General part information
GRS-2011 Series
Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
