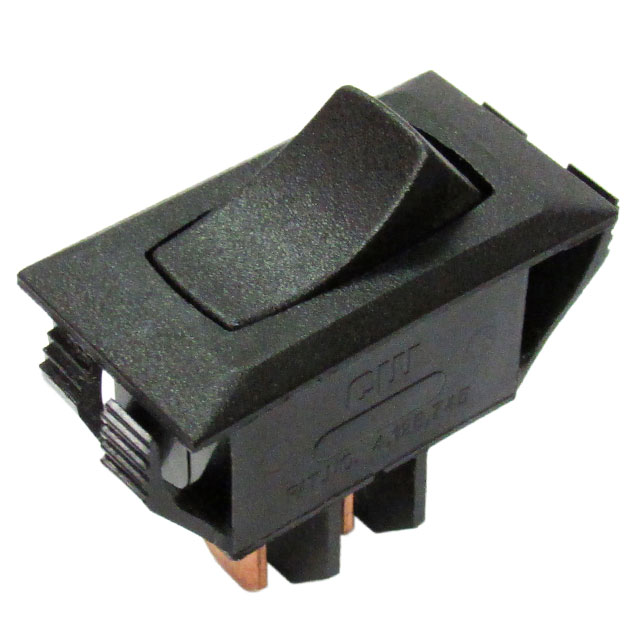

GRS-2011B-3003

Active

CW Industries

SWITCH ROCKER SPST-NO 13A 125V

Deep-Dive with AI

Search across all available documentation for this part.

GRS-2011B-3003

Active

CW Industries

SWITCH ROCKER SPST-NO 13A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GRS-2011B-3003

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	13 A
Electrical Life	25000 Steps
Features	Terminal Barriers
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	27.23 mm
Panel Cutout Dimensions [y]	12.19 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

GRS-2011 Series

Part	Mechanical Life	Termination Style	Mounting Type	Electrical Life	Actuator Marking	Actuator Type	Circuit	Voltage Rating - AC	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Switch Function	Current Rating (Amps)	Features
CW Industries GRS-2011-2020	25000 Steps	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	25000 Steps	ON OFF Vertical	Concave (Curved)	SPST	125 V	Black	-20 C	105 ░C	13.97 mm	28.58 mm	On-Off	13 A
CW Industries GRS-2011-2600	100000 Cycles	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	25000 Steps	No Marking	Concave (Curved)	SPST	125 V	Black	-20 C	105 ░C	13.97 mm	28.58 mm	On-Off	16 A
CW Industries GRS-2011-2004	25000 Steps	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	25000 Steps	No Marking	Concave (Curved)	SPST	125 V	Black	-20 C	105 ░C	13.97 mm	28.58 mm	On-Off	16 A	Terminal Barriers
CW Industries GRS-2011-2068	25000 Steps	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	25000 Steps	O -	Concave (Curved)	SPST	125 V	White	-20 C	105 ░C	13.97 mm	28.58 mm	On-Off	8 A
CW Industries GRS-2011B-3003	25000 Steps	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	25000 Steps	No Marking	Concave (Curved)	SPST-NO	125 V	Black	-20 C	105 ░C	12.19 mm	27.23 mm	Off-Mom	13 A	Terminal Barriers
CW Industries GRS-2011-3004	25000 Steps	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	25000 Steps	No Marking	Concave (Curved)	SPST	125 V	Black	-20 C	105 ░C	12.19 mm	27.23 mm	On-Off	16 A	Terminal Barriers
CW Industries GRS-2011-2080	100000 Cycles	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	25000 Steps	O -	Concave (Curved)	SPST	125 V	Black	-20 C	105 ░C	13.97 mm	28.58 mm	On-Off	16 A
CW Industries GRS-2011C-3002	25000 Steps	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	25000 Steps	No Marking	Concave (Curved)	SPST-NC	125 V	Black	-20 C	105 ░C	12.19 mm	27.23 mm	On-Mom	13 A	Polarized
CW Industries GRS-2011-3014	25000 Steps	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	25000 Steps	No Marking	Concave (Curved)	SPST	125 V	Black	-20 C	105 ░C	12.19 mm	27.23 mm	On-Off	16 A	Terminal Barriers
CW Industries GRS-2011-2053	25000 Steps	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	25000 Steps	HI LO	Concave (Curved)	SPST	125 V	Black	-20 C	105 ░C	13.97 mm	28.58 mm	On-Off	13 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 1.60

Description

General part information

GRS-2011 Series

Rocker Switch SPST-NO 13A (AC) 125 V Panel Mount, Snap-In
