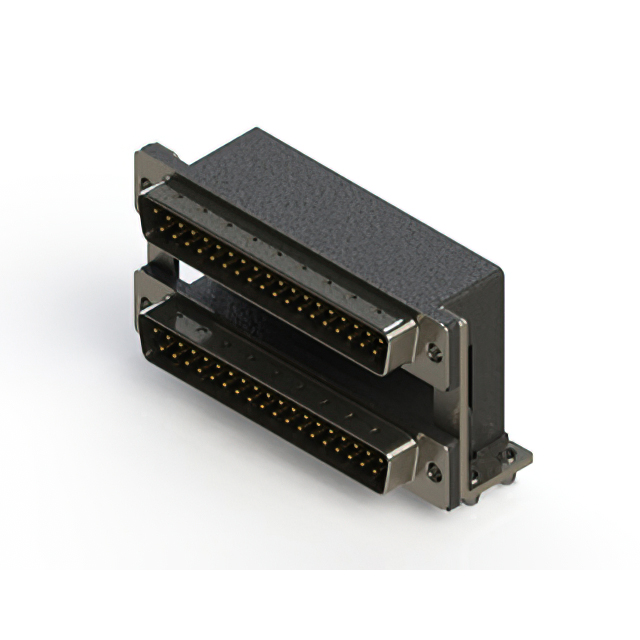

Specification	661-037-664-047

Backset Spacing	0.318 in
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Brass
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	37 pos
Number of Positions	37
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

661-037 Series

...

Part	Mounting Type	Termination	Contact Finish Thickness	Connector Style	Number of Rows	Current Rating (Per Contact)	Shell Material	Finish	Flange Feature	Number of Positions	Number of Positions	Material Flammability Rating	Contact Finish	Features	Contact Type	Backset Spacing	Connector Type	Shell Size, Connector Layout	Dielectric Material	Color	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 661-037-664-047	Panel Mount Right Angle Through Hole	Solder	30 µin	D-Sub - Stacked	2	3 A	Steel	Nickel Plated	Housing Shell (Unthreaded)	37 pos	37	UL94 V-0	Gold	Board Lock Grounding Indents Mounting Brackets Shielded	Signal	0.318 in	Male Pins Plug	4 (DC C)	Polyester Thermoplastic	Black	-55 °C	85 °C	Brass
EDAC Inc. 661-037-664-041	Panel Mount Right Angle Through Hole	Solder	30 µin	D-Sub - Stacked	2	3 A	Steel	Nickel Plated	Housing Shell (M3)	37 pos	37	UL94 V-0	Gold	Board Lock Grounding Indents Mounting Brackets Shielded	Signal	0.318 in	Male Pins Plug	4 (DC C)	Polyester Thermoplastic	Black	-55 °C	85 °C	Brass
EDAC Inc. 661-037-664-05A	Panel Mount Right Angle Through Hole	Solder	30 µin	D-Sub - Stacked	2	3 A	Steel	Nickel Plated	Housing Shell (M3)	37 pos	37	UL94 V-0	Gold	Grounding Indents Mounting Brackets Shielded	Signal	0.318 in	Male Pins Plug	4 (DC C)	Polyester Thermoplastic	Black	-55 °C	85 °C	Brass
EDAC Inc. 661-037-364-052	Panel Mount Right Angle Through Hole	Solder	15 µin	D-Sub - Stacked	2	3 A	Steel	Nickel Plated	Housing Shell (4-40)	37 pos	37	UL94 V-0	Gold	Grounding Indents Mounting Brackets Shielded	Signal	0.318 in	Male Pins Plug	4 (DC C)	Polyester Thermoplastic	Black	-55 °C	85 °C	Brass
EDAC Inc. 661-037-364-033	Panel Mount Right Angle Through Hole	Solder	15 µin	D-Sub - Stacked	2	3 A	Steel	Nickel Plated	Female Screwlock (4-40) Mating Side	37 pos	37	UL94 V-0	Gold	Board Lock Grounding Indents Mounting Brackets Shielded	Signal	0.318 in	Male Pins Plug	4 (DC C)	Polyester Thermoplastic	Black	-55 °C	85 °C	Brass
EDAC Inc. 661-037-364-030	Panel Mount Right Angle Through Hole	Solder	15 µin	D-Sub - Stacked	2	3 A	Steel	Nickel Plated	Housing Shell (Unthreaded)	37 pos	37	UL94 V-0	Gold	Board Lock Grounding Indents Mounting Brackets Shielded	Signal	0.318 in	Male Pins Plug	4 (DC C)	Polyester Thermoplastic	Black	-55 °C	85 °C	Brass
EDAC Inc. 661-037-664-044	Panel Mount Right Angle Through Hole	Solder	30 µin	D-Sub - Stacked	2	3 A	Steel	Nickel Plated	Housing Shell (Unthreaded)	37 pos	37	UL94 V-0	Gold	Board Lock Grounding Indents Mounting Brackets Shielded	Signal	0.318 in	Male Pins Plug	4 (DC C)	Polyester Thermoplastic	Black	-55 °C	85 °C	Brass
EDAC Inc. 661-037-364-002	Panel Mount Right Angle Through Hole	Solder	15 µin	D-Sub - Stacked	2	3 A	Steel	Nickel Plated	Housing Shell (4-40)	37 pos	37	UL94 V-0	Gold	Grounding Indents Mounting Brackets Shielded	Signal	0.318 in	Male Pins Plug	4 (DC C)	Polyester Thermoplastic	Black	-55 °C	85 °C	Brass
EDAC Inc. 661-037-664-006	Panel Mount Right Angle Through Hole	Solder	30 µin	D-Sub - Stacked	2	3 A	Steel	Nickel Plated	Female Screwlock (4-40) Mating Side	37 pos	37	UL94 V-0	Gold	Grounding Indents Mounting Brackets Shielded	Signal	0.318 in	Male Pins Plug	4 (DC C)	Polyester Thermoplastic	Black	-55 °C	85 °C	Brass
EDAC Inc. 661-037-264-004	Panel Mount Right Angle Through Hole	Solder	0	D-Sub - Stacked	2	3 A	Steel	Nickel Plated	Housing Shell (Unthreaded)	37 pos	37	UL94 V-0	Gold	Grounding Indents Mounting Brackets Shielded	Signal	0.318 in	Male Pins Plug	4 (DC C)	Polyester Thermoplastic	Black	-55 °C	85 °C	Brass	Flash	Flash
