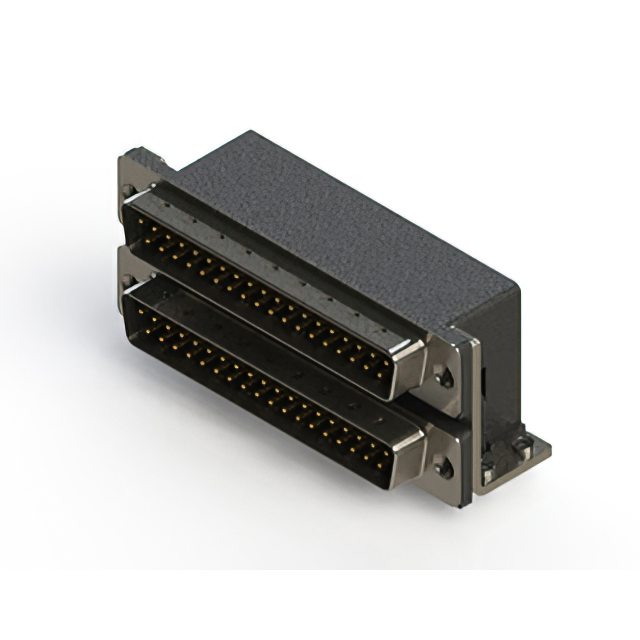

661-037-364-052

Active

EDAC Inc.

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

661-037-364-052

Active

EDAC Inc.

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	661-037-364-052

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

661-037 Series

Part	Current Rating (Amps)	Contact Material	Flange Feature	Features	Color	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Shell Size, Connector Layout	Shell Material, Finish	Number of Rows	Termination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Backset Spacing	Backset Spacing	Connector Style	Number of Positions	Material Flammability Rating
EDAC Inc. 661-037-664-047	3 A	Brass	Housing/Shell (Unthreaded)	Board Lock Grounding Indents Mounting Brackets Shielded	Black	Polyester Thermoplastic	0.76 Ám	30 Áin	Male Pins Plug	Gold	4	Nickel Plated Steel	2	Solder	Panel Mount Right Angle Through Hole	85 °C	-55 °C	Signal	8.08 mm	0.318 "	D-Sub - Stacked	37	UL94 V-0
EDAC Inc. 661-037-664-041	3 A	Brass	Housing/Shell (M3)	Board Lock Grounding Indents Mounting Brackets Shielded	Black	Polyester Thermoplastic	0.76 Ám	30 Áin	Male Pins Plug	Gold	4	Nickel Plated Steel	2	Solder	Panel Mount Right Angle Through Hole	85 °C	-55 °C	Signal	8.08 mm	0.318 "	D-Sub - Stacked	37	UL94 V-0
EDAC Inc. 661-037-664-05A	3 A	Brass	Housing/Shell (M3)	Grounding Indents Mounting Brackets Shielded	Black	Polyester Thermoplastic	0.76 Ám	30 Áin	Male Pins Plug	Gold	4	Nickel Plated Steel	2	Solder	Panel Mount Right Angle Through Hole	85 °C	-55 °C	Signal	8.08 mm	0.318 "	D-Sub - Stacked	37	UL94 V-0
EDAC Inc. 661-037-364-052	3 A	Brass	Housing/Shell (4-40)	Grounding Indents Mounting Brackets Shielded	Black	Polyester Thermoplastic	0.38 µm	15 µin	Male Pins Plug	Gold	4	Nickel Plated Steel	2	Solder	Panel Mount Right Angle Through Hole	85 °C	-55 °C	Signal	8.08 mm	0.318 "	D-Sub - Stacked	37	UL94 V-0
EDAC Inc. 661-037-364-030	3 A	Brass	Housing/Shell (Unthreaded)	Board Lock Grounding Indents Mounting Brackets Shielded	Black	Polyester Thermoplastic	0.38 µm	15 µin	Male Pins Plug	Gold	4	Nickel Plated Steel	2	Solder	Panel Mount Right Angle Through Hole	85 °C	-55 °C	Signal	8.08 mm	0.318 "	D-Sub - Stacked	37	UL94 V-0
EDAC Inc. 661-037-664-044	3 A	Brass	Housing/Shell (Unthreaded)	Board Lock Grounding Indents Mounting Brackets Shielded	Black	Polyester Thermoplastic	0.76 Ám	30 Áin	Male Pins Plug	Gold	4	Nickel Plated Steel	2	Solder	Panel Mount Right Angle Through Hole	85 °C	-55 °C	Signal	8.08 mm	0.318 "	D-Sub - Stacked	37	UL94 V-0
EDAC Inc. 661-037-364-002	3 A	Brass	Housing/Shell (4-40)	Grounding Indents Mounting Brackets Shielded	Black	Polyester Thermoplastic	0.38 µm	15 µin	Male Pins Plug	Gold	4	Nickel Plated Steel	2	Solder	Panel Mount Right Angle Through Hole	85 °C	-55 °C	Signal	8.08 mm	0.318 "	D-Sub - Stacked	37	UL94 V-0
EDAC Inc. 661-037-364-009	3 A	Brass	Female Screwlock (4-40) Mating Side	Grounding Indents Mounting Brackets Shielded	Black	Polyester Thermoplastic	0.38 µm	15 µin	Male Pins Plug	Gold	4	Nickel Plated Steel	2	Solder	Panel Mount Right Angle Through Hole	85 °C	-55 °C	Signal	8.08 mm	0.318 "	D-Sub - Stacked	37	UL94 V-0
EDAC Inc. 661-037-364-050	3 A	Brass	Housing/Shell (Unthreaded)	Grounding Indents Mounting Brackets Shielded	Black	Polyester Thermoplastic	0.38 µm	15 µin	Male Pins Plug	Gold	4	Nickel Plated Steel	2	Solder	Panel Mount Right Angle Through Hole	85 °C	-55 °C	Signal	8.08 mm	0.318 "	D-Sub - Stacked	37	UL94 V-0
EDAC Inc. 661-037-664-050	3 A	Brass	Housing/Shell (Unthreaded)	Grounding Indents Mounting Brackets Shielded	Black	Polyester Thermoplastic	0.76 Ám	30 Áin	Male Pins Plug	Gold	4	Nickel Plated Steel	2	Solder	Panel Mount Right Angle Through Hole	85 °C	-55 °C	Signal	8.08 mm	0.318 "	D-Sub - Stacked	37	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 17.05
Newark	Each	1	$ 21.16
		250	$ 15.39
		500	$ 14.11
		1000	$ 11.94

Description

General part information

661-037 Series

37, 37 Position D-Sub - Stacked Plug, Male Pins Connector
