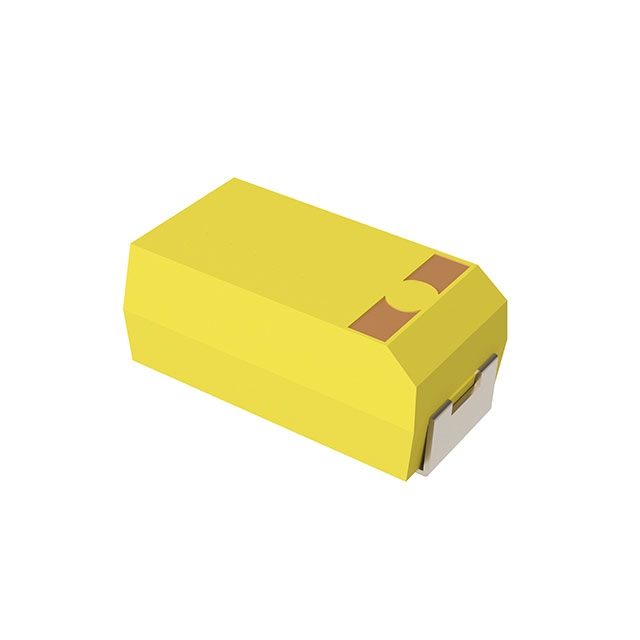

T498C106K025ATE1K1 - T498 Series

T498C106K025ATE1K1

Active
KEMET

SURFACE MOUNT TANTALUM CAPACITOR, 10 ΜF, 25 V, 2312 [6032 METRIC], ± 10%, 1.1 OHM, C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetT498C106K025ATE1K1+1
T498C106K025ATE1K1 - T498 Series

T498C106K025ATE1K1

Active
KEMET

SURFACE MOUNT TANTALUM CAPACITOR, 10 ΜF, 25 V, 2312 [6032 METRIC], ± 10%, 1.1 OHM, C

Deep-Dive with AI

DocumentsDatasheetT498C106K025ATE1K1+1

Technical Specifications

Parameters and characteristics for this part

SpecificationT498C106K025ATE1K1
Capacitance10 µF
ESR (Equivalent Series Resistance)1.1 Ohm
FeaturesAutomotive
GradeAutomotive
Lifetime @ Temp.2000 Hrs
Mounting TypeSurface Mount
Operating Temperature [Max]150 °C
Operating Temperature [Min]-55 °C
Package / Case6032 Metric
Package / Case2312
QualificationAEC-Q200
RatingsAEC-Q200
Size / Dimension [x]6 mm
Size / Dimension [x]0.236 in
Size / Dimension [y]3.2 mm
Size / Dimension [y]0.126 "
Tolerance10 %
TypeMolded
Voltage - Rated25 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.07
10$ 0.80
50$ 0.73
100$ 0.60
Digi-Reel® 1$ 1.07
10$ 0.80
50$ 0.73
100$ 0.60
Tape & Reel (TR) 500$ 0.48
1000$ 0.42
2500$ 0.39
5000$ 0.38
12500$ 0.36
25000$ 0.35
NewarkEach (Supplied on Full Reel) 1$ 0.50
1000$ 0.48
2000$ 0.44
4000$ 0.39
6000$ 0.38
10000$ 0.37

Description

General part information

T498C Series

The T498 series SMD Tantalum Capacitor offers optimum performance characteristics in applications with operating temperatures up to 150°C. Advanced materials and testing allow this series to perform with a reliability level of 0.5%/1000hrs at rated voltage and temperature.
