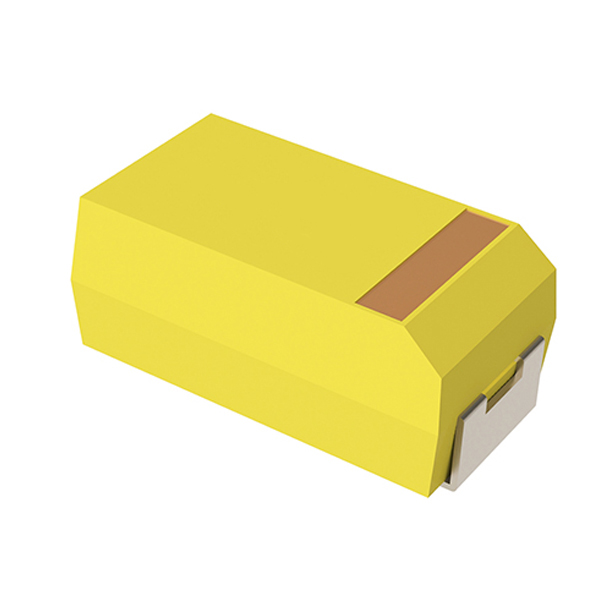

T498C685M020ATE1K3

Active

KEMET

CAP TANT 6.8UF 20% 20V 2312

Search across all available documentation for this part.

Active

KEMET

CAP TANT 6.8UF 20% 20V 2312

Technical Specifications

Parameters and characteristics for this part

Specification	T498C685M020ATE1K3

Capacitance	6.8 ÁF
ESR (Equivalent Series Resistance)	1.3 Ohm
Features	Automotive
Grade	Automotive
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	6032 Metric
Package / Case	2312
Qualification	AEC-Q200
Ratings	AEC-Q200
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Tolerance	20 %
Type	Molded
Voltage - Rated	20 V

Part	Lifetime @ Temp.	Ratings	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Capacitance	Tolerance	Voltage - Rated	Type	Mounting Type	Grade	Package / Case	Package / Case	ESR (Equivalent Series Resistance)
KEMET T498C685M020ATE1K3	2000 Hrs	AEC-Q200	Automotive	3.2 mm	6 mm	0.236 in	0.126 "	-55 °C	150 °C	AEC-Q200	6.8 ÁF	20 %	20 V	Molded	Surface Mount	Automotive	6032 Metric	2312	1.3 Ohm
KEMET T498C106K025ATE1K1	2000 Hrs	AEC-Q200	Automotive	3.2 mm	6 mm	0.236 in	0.126 "	-55 °C	150 °C	AEC-Q200	10 µF	10 %	25 VDC	Molded	Surface Mount	Automotive	6032 Metric	2312	1.1 Ohm
KEMET T498C225K035ATE2K2	2000 Hrs	AEC-Q200	Automotive	3.2 mm	6 mm	0.236 in	0.126 "	-55 °C	150 °C	AEC-Q200	2.2 µF	10 %	35 V	Molded	Surface Mount	Automotive	6032 Metric	2312	2.2 Ohms
KEMET T498C226K016ATE1K0	2000 Hrs	AEC-Q200	Automotive	3.2 mm	6 mm	0.236 in	0.126 "	-55 °C	150 °C	AEC-Q200	22 µF	10 %	16 V	Molded	Surface Mount	Automotive	6032 Metric	2312	1 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.31

General part information

6.8 µF Molded Tantalum Capacitors 20 V 2312 (6032 Metric) 1.3Ohm @ 100kHz

Technical documentation and resources
