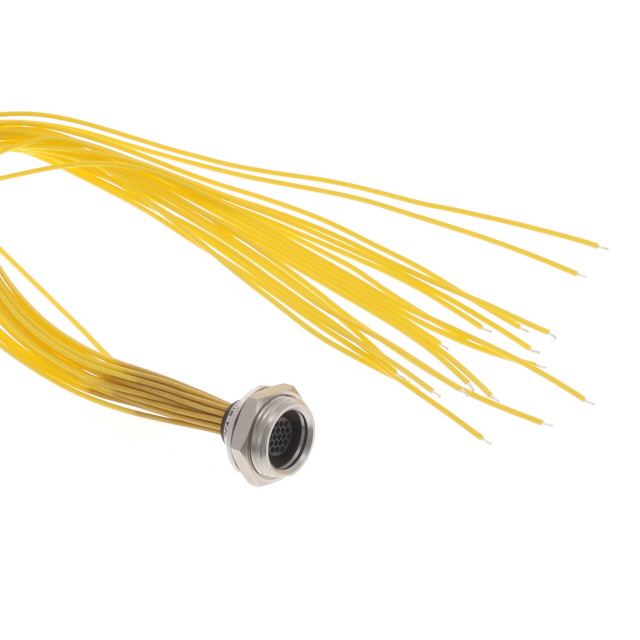

MIKQ9-19PH011

Active

ITT Cannon, LLC

CABLE ASSEMBLY INSULATED ROUND HOOK-UP WIRE 0.914M 24-32AWG 19 POS MICROMINIATURE CIRCULAR PIN CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MIKQ9-19PH011

Active

ITT Cannon, LLC

CABLE ASSEMBLY INSULATED ROUND HOOK-UP WIRE 0.914M 24-32AWG 19 POS MICROMINIATURE CIRCULAR PIN CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MIKQ9-19PH011

1st Connector Gender	Male Pins
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	19
1st Connector Number of Positions Loaded	All
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Type	Individual
Color	Yellow
Length [x]	3 ft
Length [x]	914.4 mm
Shielding	Unshielded

MIKQ9 Series

Part	2nd Connector Type	1st Connector Mounting Type	1st Connector Number of Positions	1st Connector Gender	Length [x]	Length [x]	1st Connector Orientation [custom]	Shielding	1st Connector Type	Assembly Configuration	Color	Cable Type	1st Connector Number of Positions Loaded	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Connector Type	Mounting Feature	Contact Finish - Mating	Fastening Type	Termination	Shell Finish	Applications	Insert Material	Current Rating (Amps)	Number of Positions	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material
ITT Cannon, LLC MIKQ9-19PH003	Wire Leads	Panel Mount	19	Male Pins	457.2 mm	1.5 ft	Keyed	Unshielded	Receptacle	Standard	Multiple	Individual	All
ITT Cannon, LLC MIKQ9-37PL2								Unshielded			Silver			Keyed	-55 °C	125 °C	Brass	Male Pins Receptacle	Bulkhead - Front Side Nut	Gold	Push-Pull	Crimp	Electroless Nickel	Instrumentation Medical	Thermoplastic	3 A	37	Metal	1.27 µm	50 µin	Copper Alloy
ITT Cannon, LLC MIKQ9-19PL79	Wire Leads	Panel Mount	19	Male Pins			Keyed	Unshielded	Receptacle	Standard		Individual	All
ITT Cannon, LLC MIKQ9-19PH011	Wire Leads	Panel Mount	19	Male Pins	914.4 mm	3 ft		Unshielded	Receptacle	Standard	Yellow	Individual	All
ITT Cannon, LLC MIKQ9-7PS1								Unshielded			Silver			Keyed	-55 °C	125 °C	Brass	Male Pins Receptacle	Bulkhead - Front Side Nut	Gold	Push-Pull	Crimp	Electroless Nickel	Instrumentation Medical	Thermoplastic	3 A	7	Metal	1.27 µm	50 µin	Copper Alloy
ITT Cannon, LLC MIKQ9-7PH17	Wire Leads	Panel Mount	7	Male Pins			Keyed	Unshielded	Receptacle	Standard		Individual	All
ITT Cannon, LLC MIKQ9-7PL1								Unshielded			Silver			Keyed	-55 °C	125 °C	Brass	Male Pins Receptacle	Bulkhead - Front Side Nut	Gold	Push-Pull	Crimp	Electroless Nickel	Instrumentation Medical	Thermoplastic	3 A	7	Metal	1.27 µm	50 µin	Copper Alloy
ITT Cannon, LLC MIKQ9-7PH25	Wire Leads	Panel Mount	7	Male Pins			Keyed	Unshielded	Receptacle	Standard		Individual	All
ITT Cannon, LLC MIKQ9-7PH2	Wire Leads	Panel Mount	7	Male Pins			Keyed	Unshielded	Receptacle	Standard		Individual	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 209.40
		10	$ 194.05
		25	$ 187.07

Description

General part information

MIKQ9 Series

Cable Assembly 3.00' (914.40mm)
