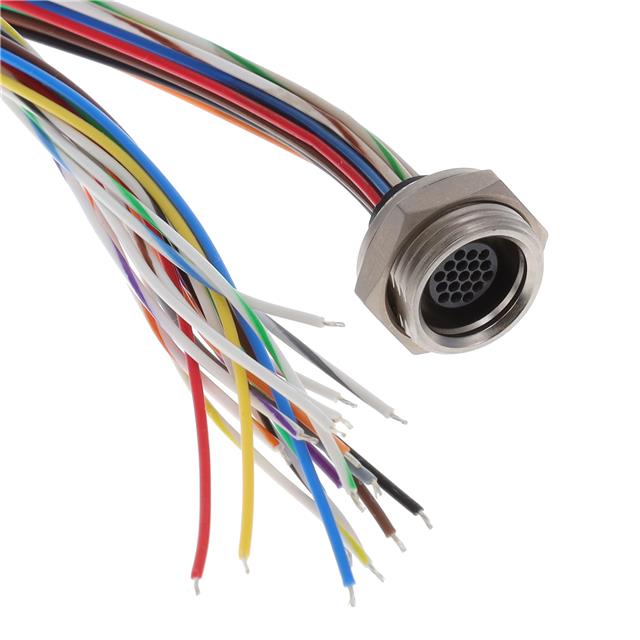

MIKQ9-19PH003

Active

ITT Cannon, LLC

CIRC CBL 19POS RCPT TO WIRE 1.5'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MIKQ9-19PH003

Active

ITT Cannon, LLC

CIRC CBL 19POS RCPT TO WIRE 1.5'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MIKQ9-19PH003

1st Connector Gender	Male Pins
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	19
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Type	Individual
Color	Multiple
Length [x]	457.2 mm
Length [x]	1.5 ft
Shielding	Unshielded

MIKQ9 Series

Part	2nd Connector Type	1st Connector Mounting Type	1st Connector Number of Positions	1st Connector Gender	Length [x]	Length [x]	1st Connector Orientation [custom]	Shielding	1st Connector Type	Assembly Configuration	Color	Cable Type	1st Connector Number of Positions Loaded	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Connector Type	Mounting Feature	Contact Finish - Mating	Fastening Type	Termination	Shell Finish	Applications	Insert Material	Current Rating (Amps)	Number of Positions	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material
ITT Cannon, LLC MIKQ9-19PH003	Wire Leads	Panel Mount	19	Male Pins	457.2 mm	1.5 ft	Keyed	Unshielded	Receptacle	Standard	Multiple	Individual	All
ITT Cannon, LLC MIKQ9-37PL2								Unshielded			Silver			Keyed	-55 °C	125 °C	Brass	Male Pins Receptacle	Bulkhead - Front Side Nut	Gold	Push-Pull	Crimp	Electroless Nickel	Instrumentation Medical	Thermoplastic	3 A	37	Metal	1.27 µm	50 µin	Copper Alloy
ITT Cannon, LLC MIKQ9-19PL79	Wire Leads	Panel Mount	19	Male Pins			Keyed	Unshielded	Receptacle	Standard		Individual	All
ITT Cannon, LLC MIKQ9-19PH011	Wire Leads	Panel Mount	19	Male Pins	914.4 mm	3 ft		Unshielded	Receptacle	Standard	Yellow	Individual	All
ITT Cannon, LLC MIKQ9-7PS1								Unshielded			Silver			Keyed	-55 °C	125 °C	Brass	Male Pins Receptacle	Bulkhead - Front Side Nut	Gold	Push-Pull	Crimp	Electroless Nickel	Instrumentation Medical	Thermoplastic	3 A	7	Metal	1.27 µm	50 µin	Copper Alloy
ITT Cannon, LLC MIKQ9-7PH17	Wire Leads	Panel Mount	7	Male Pins			Keyed	Unshielded	Receptacle	Standard		Individual	All
ITT Cannon, LLC MIKQ9-7PL1								Unshielded			Silver			Keyed	-55 °C	125 °C	Brass	Male Pins Receptacle	Bulkhead - Front Side Nut	Gold	Push-Pull	Crimp	Electroless Nickel	Instrumentation Medical	Thermoplastic	3 A	7	Metal	1.27 µm	50 µin	Copper Alloy
ITT Cannon, LLC MIKQ9-7PH25	Wire Leads	Panel Mount	7	Male Pins			Keyed	Unshielded	Receptacle	Standard		Individual	All
ITT Cannon, LLC MIKQ9-7PH2	Wire Leads	Panel Mount	7	Male Pins			Keyed	Unshielded	Receptacle	Standard		Individual	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 291.29

Description

General part information

MIKQ9 Series

Circular Cable Assembly Unshielded 1.50' (457.20mm)

Documents

Technical documentation and resources
