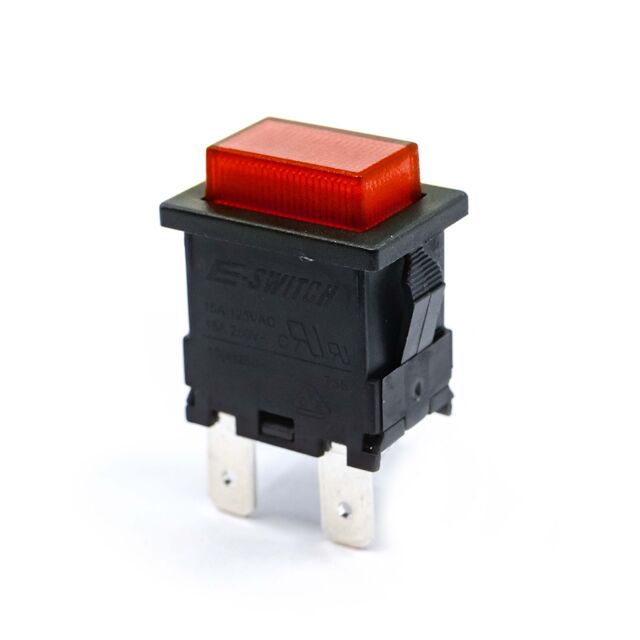

PB1973BBLKRILEF0
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 2; SPST; 15A/250VAC; RED; RCONT MAX: 20MΩ
Deep-Dive with AI
Search across all available documentation for this part.
PB1973BBLKRILEF0
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 2; SPST; 15A/250VAC; RED; RCONT MAX: 20MΩ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PB1973BBLKRILEF0 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 10 A, 15 A |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 13 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Standard |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PB1973 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
