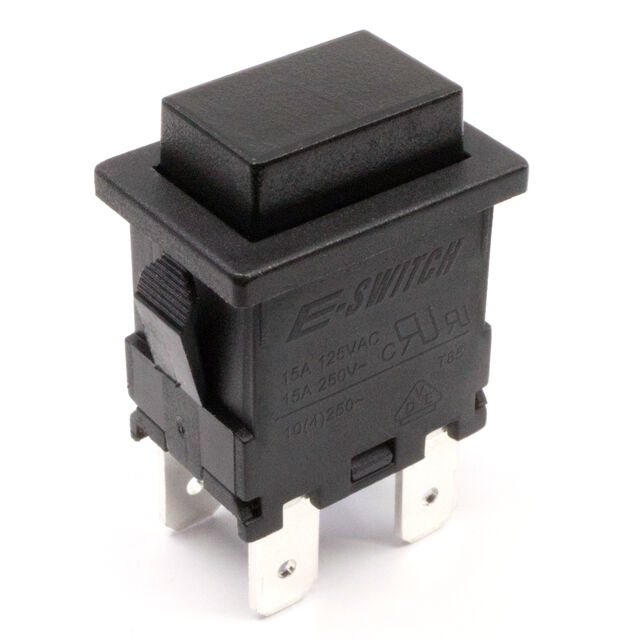

PB1973EBLKBLKEF0

Active

E-Switch

SWITCH PUSHBUTTON DPST 15A 250V

Deep-Dive with AI

Search across all available documentation for this part.

PB1973EBLKBLKEF0

Active

E-Switch

SWITCH PUSHBUTTON DPST 15A 250V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PB1973EBLKBLKEF0

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A, 15 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	13 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Standard
Voltage Rating - AC	250 V
Voltage Rating - DC	125 VDC

PB1973 Series

Part	Electrical Life	Current Rating (Amps)	Type	Mounting Type	Actuator Type	Actuator Marking	Voltage Rating - DC	Mechanical Life	Voltage Rating - AC	Termination Style	Switch Function	Color - Actuator/Cap	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Type, Color	Illumination Voltage (Nominal)
E-Switch PB1973EBLKBLKEF0	10000 Cycles	10 A 15 A	Standard	Panel Mount Snap-In	Rectangular Button	No Marking	125 VDC	30000 Steps	250 V	Quick Connect - 0.187" (4.7mm)	On-Off	Black	55 °C	-10 °C	DPST	13 mm	19.2 mm
E-Switch PB1973BBLKRILEF0	10000 Cycles	10 A 15 A	Standard	Panel Mount Snap-In	Rectangular Button	No Marking	125 VDC	30000 Steps	250 V	Quick Connect - 0.187" (4.7mm)	Off-Mom	Red	55 °C	-10 °C	SPST-NO	13 mm	19.2 mm
E-Switch PB1973BBLKGILEF0	10000 Cycles	10 A 15 A	Standard	Panel Mount Snap-In	Rectangular Button	No Marking	125 VDC	30000 Steps	250 V	Quick Connect - 0.187" (4.7mm)	Off-Mom	Green	55 °C	-10 °C	SPST-NO	13 mm	19.2 mm
E-Switch PB1973GBLKRILEF4	10000 Cycles	10 A 15 A	Illuminated Standard	Panel Mount Snap-In	Rectangular Button	No Marking	125 VDC	30000 Steps	250 V	Quick Connect - 0.187" (4.7mm)	On-Off	Red	55 °C	-10 °C	DPST	13 mm	19.2 mm	Incandescent Red	24 V
E-Switch PB1973DBLKRILEF2	10000 Cycles	10 A 15 A	Illuminated Standard	Panel Mount Snap-In	Rectangular Button	No Marking	125 VDC	30000 Steps	250 V	Quick Connect - 0.187" (4.7mm)	Off-Mom	Red	55 °C	-10 °C	SPST-NO	13 mm	19.2 mm	Neon Red	250 VAC
E-Switch PB1973DBLKGILEF4	10000 Cycles	10 A 15 A	Illuminated Standard	Panel Mount Snap-In	Rectangular Button	No Marking	125 VDC	30000 Steps	250 V	Quick Connect - 0.187" (4.7mm)	Off-Mom	Green	55 °C	-10 °C	SPST-NO	13 mm	19.2 mm	Green Incandescent	24 V
E-Switch PB1973DBLKGILEF3	10000 Cycles	10 A 15 A	Illuminated Standard	Panel Mount Snap-In	Rectangular Button	No Marking	125 VDC	30000 Steps	250 V	Quick Connect - 0.187" (4.7mm)	Off-Mom	Green	55 °C	-10 °C	SPST-NO	13 mm	19.2 mm	Green Incandescent	12 VDC
E-Switch PB1973BBLKBLKEF0	10000 Cycles	10 A 15 A	Standard	Panel Mount Snap-In	Rectangular Button	No Marking	125 VDC	30000 Steps	250 V	Quick Connect - 0.187" (4.7mm)	Off-Mom	Black	55 °C	-10 °C	SPST-NO	13 mm	19.2 mm
E-Switch PB1973CBLKGILEF3	10000 Cycles	10 A 15 A	Illuminated Standard	Panel Mount Snap-In	Rectangular Button	No Marking	125 VDC	30000 Steps	250 V	Quick Connect - 0.187" (4.7mm)	On-Off	Green	55 °C	-10 °C	SPST	13 mm	19.2 mm	Green Incandescent	12 VDC
E-Switch PB1973DBLKYILEF4	10000 Cycles	10 A 15 A	Illuminated Standard	Panel Mount Snap-In	Rectangular Button	No Marking	125 VDC	30000 Steps	250 V	Quick Connect - 0.187" (4.7mm)	Off-Mom	Yellow	55 °C	-10 °C	SPST-NO	13 mm	19.2 mm	Incandescent Yellow	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	600	$ 2.49

Description

General part information

PB1973 Series

Pushbutton Switch DPST Standard Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
