2M809-088

Active

Amphenol Aerospace Operations

2M PLASTIC INS/EXT TOOL 23

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

2M PLASTIC INS/EXT TOOL 23

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

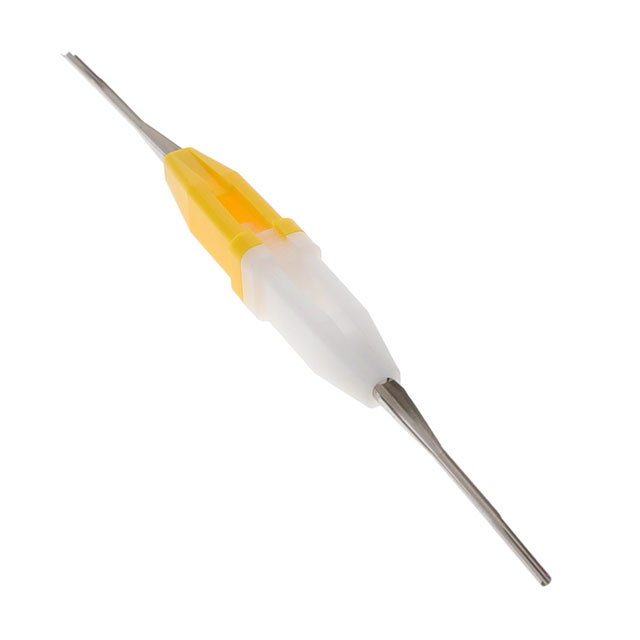

Insertion/Extraction Tool For Circular Contacts

Technical documentation and resources

Specification	2M809-088	2M809 Series

Contact Finish	-	Gold
Contact Material	-	Copper Alloy
Contact Size	-	23
Contact Termination	-	Crimp
Contact Type	-	Pin
For Use With/Related Products	Circular Contacts	Circular Contacts
Tool Type	Insertion/Extraction Tool	Extraction Tool, Insertion/Extraction Tool
Type	-	Power, Machined
Wire Gauge or Range - AWG	-	28 AWG
Wire Gauge or Range - AWG	-	22 AWG

Part	Contact Finish	Contact Material	Type	Contact Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Size	Contact Termination	For Use With/Related Products	Tool Type
Amphenol Aerospace Operations 2M809-001	Gold	Copper Alloy	Power, Machined	Pin	28 AWG	22 AWG	23	Crimp
Amphenol Aerospace Operations 2M809-20HDR									Circular Contacts	Extraction Tool
Amphenol Aerospace Operations 2M809-088									Circular Contacts	Insertion/Extraction Tool
