2M809-20HDR

Active

Amphenol Aerospace Operations

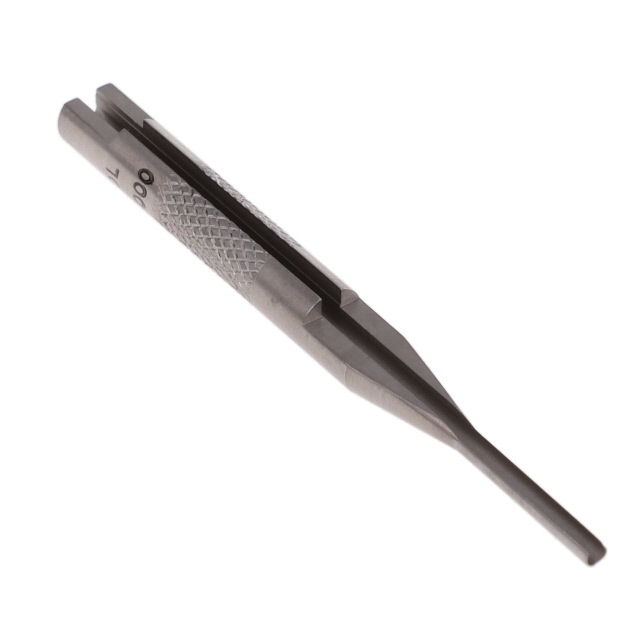

2M EXTRACTION TOOL SZ 20HD

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

2M EXTRACTION TOOL SZ 20HD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2M809-20HDR	2M809 Series

Contact Finish	-	Gold
Contact Material	-	Copper Alloy
Contact Size	-	23
Contact Termination	-	Crimp
Contact Type	-	Pin
For Use With/Related Products	Circular Contacts	Circular Contacts
Tool Type	Extraction Tool	Extraction Tool, Insertion/Extraction Tool
Type	-	Power, Machined
Wire Gauge or Range - AWG	-	28 AWG
Wire Gauge or Range - AWG	-	22 AWG

CONTACT PIN 22-28AWG CRIMP GOLD

Part	Contact Finish	Contact Material	Type	Contact Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Size	Contact Termination	For Use With/Related Products	Tool Type
Amphenol Aerospace Operations 2M809-001	Gold	Copper Alloy	Power, Machined	Pin	28 AWG	22 AWG	23	Crimp
Amphenol Aerospace Operations 2M809-20HDR									Circular Contacts	Extraction Tool
Amphenol Aerospace Operations 2M809-088									Circular Contacts	Insertion/Extraction Tool

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Extraction Tool For Circular Contacts
