415-023-000-112

Active

EDAC Inc.

CARD EDGE METAL TO METAL 2 PIECE CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

415-023-000-112

Active

EDAC Inc.

CARD EDGE METAL TO METAL 2 PIECE CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	415-023-000-112

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Green
Flange Feature	3.25 mm
Flange Feature	0.128 in
Material - Insulation	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Note	Contacts Not Included
Number of Positions	23
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm

415-023 Series

Part	Termination Rows	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Contact Finish	Flange Feature	Flange Feature	Termination	Card Thickness	Card Thickness	Contact Material	Gender	Material - Insulation	Mounting Type	Color	Features	Note	Material Flammability Rating
EDAC Inc. 415-023-540-122	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Wire Wrap	0.093 in	2.36 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green
EDAC Inc. 415-023-542-222	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Wire Wrap	0.093 in	2.36 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green	Card Guides
EDAC Inc. 415-023-500-112	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Solder Eyelet(s)	0.062 in	1.57 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green
EDAC Inc. 415-023-540-212	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Wire Wrap	0.062 in	1.57 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green	Card Guides
EDAC Inc. 415-023-520-112	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Solder	0.062 in	1.57 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green
EDAC Inc. 415-023-541-112	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Wire Wrap	0.062 in	1.57 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green
EDAC Inc. 415-023-542-112	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Wire Wrap	0.062 in	1.57 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green
EDAC Inc. 415-023-542-212	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Wire Wrap	0.062 in	1.57 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green	Card Guides
EDAC Inc. 415-023-000-112			0.2 in	5.08 mm	23	125 °C	-65 ░C			Non Specified - Dual Edge		3.25 mm	0.128 in		0.062 in	1.57 mm			Polyphenylene Sulfide (PPS)		Green		Contacts Not Included	UL94 V-0
EDAC Inc. 415-023-000-212			0.2 in	5.08 mm	23	125 °C	-65 ░C			Non Specified - Dual Edge		3.25 mm	0.128 in		0.062 in	1.57 mm			Diallyl Phthalate (DAP)		Green	Card Guides	Contacts Not Included	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 7.78
Newark	Each	25	$ 9.46
		50	$ 9.24
		100	$ 8.80
		250	$ 8.58
		500	$ 8.28

Description

General part information

415-023 Series

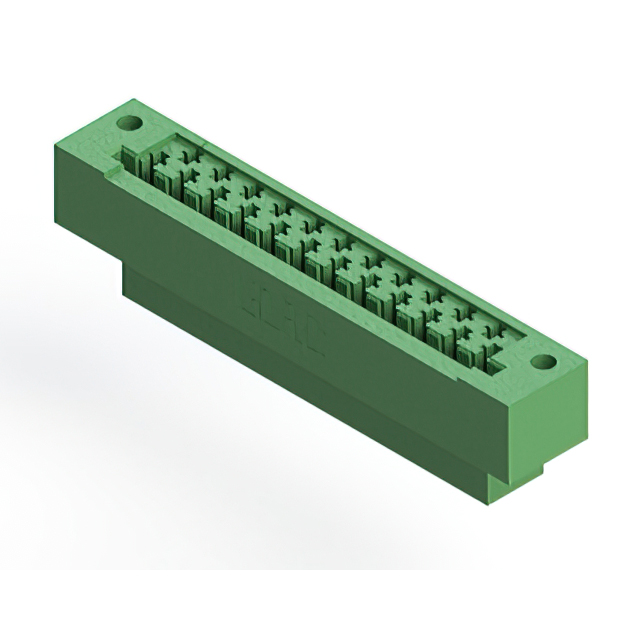

23 Position Card Edge Connector Housing Green 0.200" (5.08mm)
