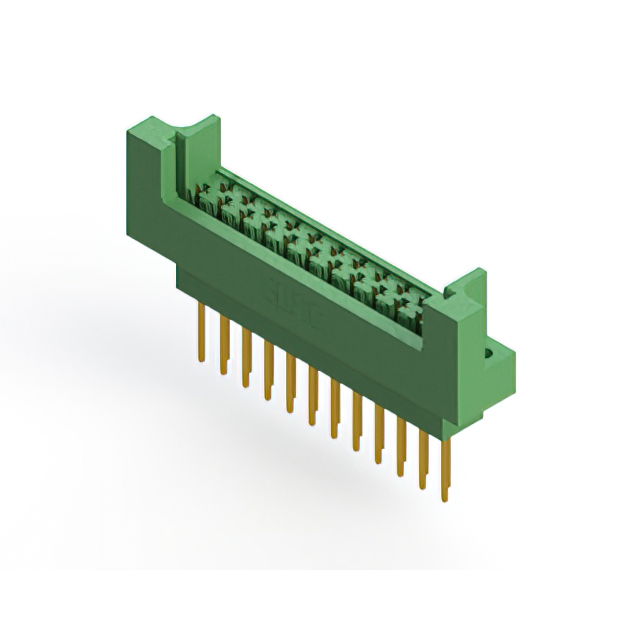

415-023-540-212

Active

EDAC Inc.

CONN EDGE DL FMALE 23P 0.200 2PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	415-023-540-212

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Features	Card Guides
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Panel Mount
Number of Positions	23
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Termination	Wire Wrap
Termination Rows	2

415-023 Series

Part	Termination Rows	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Contact Finish	Flange Feature	Flange Feature	Termination	Card Thickness	Card Thickness	Contact Material	Gender	Material - Insulation	Mounting Type	Color	Features	Note	Material Flammability Rating
EDAC Inc. 415-023-540-122	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Wire Wrap	0.093 in	2.36 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green
EDAC Inc. 415-023-542-222	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Wire Wrap	0.093 in	2.36 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green	Card Guides
EDAC Inc. 415-023-500-112	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Solder Eyelet(s)	0.062 in	1.57 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green
EDAC Inc. 415-023-540-212	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Wire Wrap	0.062 in	1.57 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green	Card Guides
EDAC Inc. 415-023-520-112	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Solder	0.062 in	1.57 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green
EDAC Inc. 415-023-541-112	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Wire Wrap	0.062 in	1.57 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green
EDAC Inc. 415-023-542-112	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Wire Wrap	0.062 in	1.57 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green
EDAC Inc. 415-023-542-212	2	2	0.2 in	5.08 mm	23	125 °C	-65 ░C	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Wire Wrap	0.062 in	1.57 mm	Copper Alloy	Female	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Green	Card Guides
EDAC Inc. 415-023-000-112			0.2 in	5.08 mm	23	125 °C	-65 ░C			Non Specified - Dual Edge		3.25 mm	0.128 in		0.062 in	1.57 mm			Polyphenylene Sulfide (PPS)		Green		Contacts Not Included	UL94 V-0
EDAC Inc. 415-023-000-212			0.2 in	5.08 mm	23	125 °C	-65 ░C			Non Specified - Dual Edge		3.25 mm	0.128 in		0.062 in	1.57 mm			Diallyl Phthalate (DAP)		Green	Card Guides	Contacts Not Included	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 24.80

Description

General part information

415-023 Series

23 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
