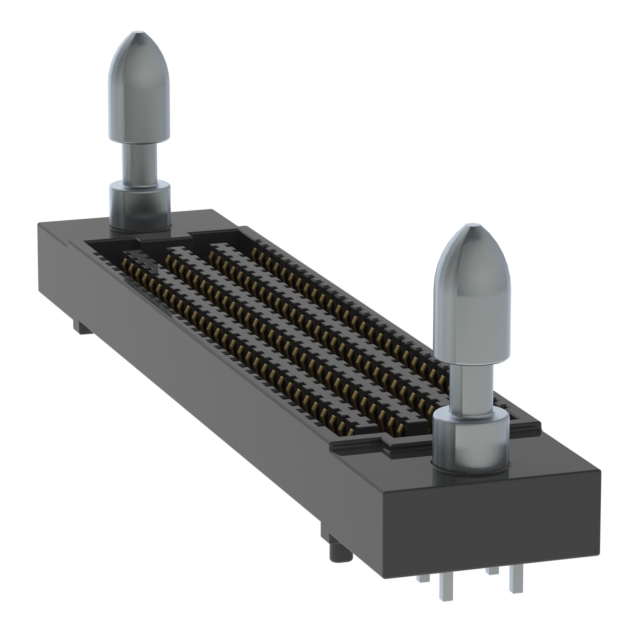

SEAF-30-05.0-L-08-2-A-LP-K-TR

Active

Samtec Inc.

CONN HD ARRAY RCPT 240P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsConn Array Rcpt 160POS SMD Gold / Fill Rows 3, 4, 7, 8 Only, Not Available As Standard.SEAF Series Other Related Documents 03 +2

SEAF-30-05.0-L-08-2-A-LP-K-TR

Active

Samtec Inc.

CONN HD ARRAY RCPT 240P SMD GOLD

Deep-Dive with AI

DocumentsConn Array Rcpt 160POS SMD Gold / Fill Rows 3, 4, 7, 8 Only, Not Available As Standard.SEAF Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAF-30-05.0-L-08-2-A-LP-K-TR

Connector Type	High Density Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Pick and Place, Latches
Height Above Board	5.05 mm
Height Above Board	0.199 in
Mated Stacking Heights	12 mm, 14 mm, 16 mm, 7 mm, 18 mm, 11.5 mm, 8.5 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	240
Number of Rows	8
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAF-30 Series

Board to Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket

Part	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Features	Mated Stacking Heights	Pitch [x]	Pitch [x]	Mounting Type
Samtec Inc. SEAF-30-05.0-L-05-2-A-K-TR	5	150	5.05 mm	0.199 in	10 Áin	0.25 Ám	High Density Array Female	Gold	Board Guide Pick and Place	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	0.05 in	1.27 mm	Surface Mount
Samtec Inc. SEAF-30-05.0-L-08-2-A-LP-K-TR	8	240	5.05 mm	0.199 in	10 Áin	0.25 Ám	High Density Array Female	Gold	Board Guide Latches Pick and Place	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	0.05 in	1.27 mm	Surface Mount
Samtec Inc. SEAF-30-01-L-04-1-RA-TR		120	7.9 mm	0.311 in	10 Áin	0.25 Ám	High Density Array Female	Gold	Board Guide		0.05 in	1.27 mm	Surface Mount Right Angle
Samtec Inc. SEAF-30-05.0-L-08-1-A-K-TR	8	240	5.05 mm	0.199 in	10 Áin	0.25 Ám	High Density Array Female	Gold	Board Guide Pick and Place	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	0.05 in	1.27 mm	Surface Mount
Samtec Inc. SEAF-30-05.0-L-10-1-A-K-TR	10	300	5.05 mm	0.199 in	10 Áin	0.25 Ám	High Density Array Female	Gold	Board Guide Pick and Place	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	0.05 in	1.27 mm	Surface Mount
Samtec Inc. SEAF-30-01-L-04-2-RA-GP-K-TR		120	7.9 mm	0.311 in	10 Áin	0.25 Ám	High Density Array Female	Gold	Board Guide Mating Flange Pick and Place		0.05 in	1.27 mm	Surface Mount Right Angle
Samtec Inc. SEAF-30-01-S-06-1-RA-GP-K-TR	6	180	10.45 mm	0.411 in	30 Áin	0.76 Ám	High Density Array Female	Gold	Board Guide Mating Flange Pick and Place		0.05 in	1.27 mm	Surface Mount Right Angle
Samtec Inc. SEAF-30-01-S-04-1-RA-K-TR		120	7.9 mm	0.311 in	30 Áin	0.76 Ám	High Density Array Female	Gold	Board Guide Pick and Place		0.05 in	1.27 mm	Surface Mount Right Angle
Samtec Inc. SEAF-30-01-S-06-1-RA-K-TR	6	180	10.45 mm	0.411 in	30 Áin	0.76 Ám	High Density Array Female	Gold	Board Guide Pick and Place		0.05 in	1.27 mm	Surface Mount Right Angle
Samtec Inc. SEAF-30-01-S-04-1-RA-GP-K-TR		120	7.9 mm	0.311 in	30 Áin	0.76 Ám	High Density Array Female	Gold	Board Guide Mating Flange Pick and Place		0.05 in	1.27 mm	Surface Mount Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100	$ 14.67
		300	$ 13.39

Description

General part information

SEAF-30 Series

Board to Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket

Documents

Technical documentation and resources

Conn Array Rcpt 160POS SMD Gold / Fill Rows 3, 4, 7, 8 Only, Not Available As Standard.

SEAF Series Other Related Documents 03

SEAF-10-05.0-L-05-1-A-K-TR Datasheet 02

Datasheet
