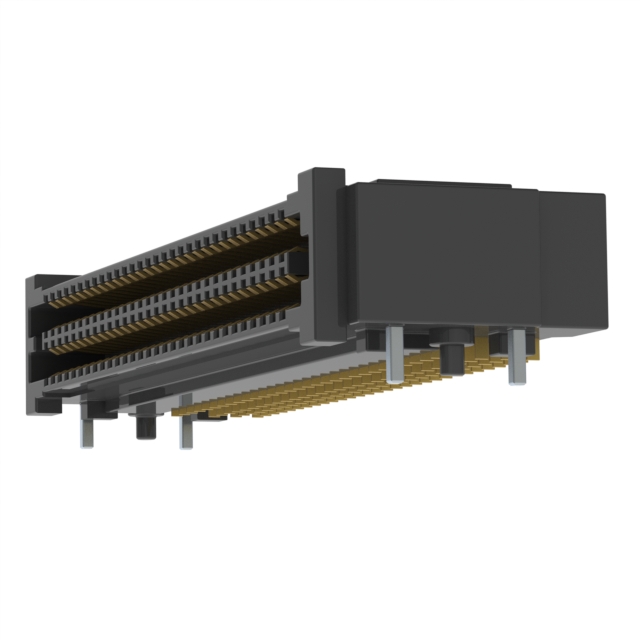

SEAF-30-01-S-04-1-RA-K-TR

Active

Samtec Inc.

CONN HD ARRAY RCPT 120P R/A SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEAF-30-01-S-04-1-RA-K-TR

Active

Samtec Inc.

CONN HD ARRAY RCPT 120P R/A SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAF-30-01-S-04-1-RA-K-TR

Connector Type	High Density Array, Female
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Pick and Place, Board Guide
Height Above Board	7.9 mm
Height Above Board	0.311 in
Mounting Type	Surface Mount, Right Angle
Number of Positions	120
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAF-30 Series

Board to Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket

Part	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Features	Mated Stacking Heights	Pitch [x]	Pitch [x]	Mounting Type
Samtec Inc. SEAF-30-05.0-L-05-2-A-K-TR	5	150	5.05 mm	0.199 in	10 Áin	0.25 Ám	High Density Array Female	Gold	Board Guide Pick and Place	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	0.05 in	1.27 mm	Surface Mount
Samtec Inc. SEAF-30-05.0-L-08-2-A-LP-K-TR	8	240	5.05 mm	0.199 in	10 Áin	0.25 Ám	High Density Array Female	Gold	Board Guide Latches Pick and Place	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	0.05 in	1.27 mm	Surface Mount
Samtec Inc. SEAF-30-01-L-04-1-RA-TR		120	7.9 mm	0.311 in	10 Áin	0.25 Ám	High Density Array Female	Gold	Board Guide		0.05 in	1.27 mm	Surface Mount Right Angle
Samtec Inc. SEAF-30-05.0-L-08-1-A-K-TR	8	240	5.05 mm	0.199 in	10 Áin	0.25 Ám	High Density Array Female	Gold	Board Guide Pick and Place	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	0.05 in	1.27 mm	Surface Mount
Samtec Inc. SEAF-30-05.0-L-10-1-A-K-TR	10	300	5.05 mm	0.199 in	10 Áin	0.25 Ám	High Density Array Female	Gold	Board Guide Pick and Place	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	0.05 in	1.27 mm	Surface Mount
Samtec Inc. SEAF-30-01-L-04-2-RA-GP-K-TR		120	7.9 mm	0.311 in	10 Áin	0.25 Ám	High Density Array Female	Gold	Board Guide Mating Flange Pick and Place		0.05 in	1.27 mm	Surface Mount Right Angle
Samtec Inc. SEAF-30-01-S-06-1-RA-GP-K-TR	6	180	10.45 mm	0.411 in	30 Áin	0.76 Ám	High Density Array Female	Gold	Board Guide Mating Flange Pick and Place		0.05 in	1.27 mm	Surface Mount Right Angle
Samtec Inc. SEAF-30-01-S-04-1-RA-K-TR		120	7.9 mm	0.311 in	30 Áin	0.76 Ám	High Density Array Female	Gold	Board Guide Pick and Place		0.05 in	1.27 mm	Surface Mount Right Angle
Samtec Inc. SEAF-30-01-S-06-1-RA-K-TR	6	180	10.45 mm	0.411 in	30 Áin	0.76 Ám	High Density Array Female	Gold	Board Guide Pick and Place		0.05 in	1.27 mm	Surface Mount Right Angle
Samtec Inc. SEAF-30-01-S-04-1-RA-GP-K-TR		120	7.9 mm	0.311 in	30 Áin	0.76 Ám	High Density Array Female	Gold	Board Guide Mating Flange Pick and Place		0.05 in	1.27 mm	Surface Mount Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	175	$ 14.75

Description

General part information

SEAF-30 Series

Board to Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket
