MU10-4R/SK

Active

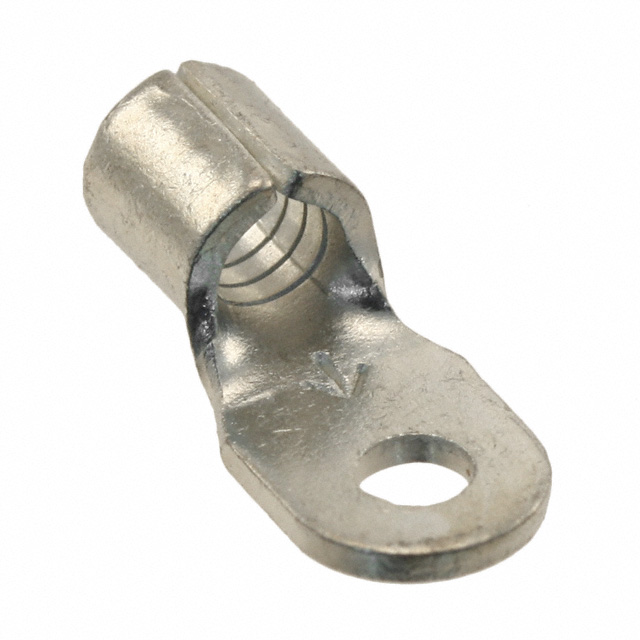

RING TONGUE TERMINAL 10-12AWG ETP COPPER 17.27MM TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MU10-4R/SK

Active

RING TONGUE TERMINAL 10-12AWG ETP COPPER 17.27MM TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.53
		10	$ 0.45
		25	$ 0.42
		50	$ 0.40
		100	$ 0.38
		250	$ 0.36
		500	$ 0.34
		1000	$ 0.32
		2500	$ 0.30

Description

General part information

MU10 Series

Ring Terminal Connector 4 Stud Circular 10-12 AWG Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MU10-4R/SK	MU10 Series

Color	-	Yellow
Contact Finish	Tin	Tin, Nickel
Contact Material	ETP, Copper	ETP, Copper, Steel
Features	-	Butted Seam
Insulation	Non-Insulated	Non-Insulated, Fully Insulated
Length - Overall [x]	17.27 mm	17.27 - 18.54 mm
Length - Overall [x]	0.68 in	0.68 - 0.73 in
Length - Ring Center to Termination	-	7.11 - 7.37 mm
Length - Ring Center to Termination	-	0.28 - 0.29 in
Length - Termination	-	6.35 mm
Length - Termination	-	0.25 "
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	4 Stud	4 - 10 Stud
Stud/Tab Size	-	8 Stud
Terminal Type	Circular	Snap, Spring, Standard, Flanged, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	0.04 in	0.04 in
Thickness	1.02 mm	1.02 mm
Width - Outer Edges	-	0.36 - 0.38 in
Width - Outer Edges	-	9.14 - 9.65 mm
Width - Outer Edges [y]	7.11 mm	7.11 - 8.13 mm
Width - Outer Edges [y]	0.28 in	0.28 - 0.32 in
Wire Gauge [Max]	12 AWG	12 AWG
Wire Gauge [Min]	10 AWG	10 AWG

MU10 Series

CONN SPADE TERM 10-12AWG 10 50PC

Part	Length - Termination	Length - Termination [x]	Contact Material	Insulation	Length - Overall [x]	Length - Overall [x]	Terminal Type	Termination	Length - Ring Center to Termination	Length - Ring Center to Termination	Mounting Type	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Stud/Tab Size	Thickness	Thickness	Number of Wire Entries	Color
3M MU10-10FLX-BOTTLE	6.35 mm	0.25 "	Copper, ETP	Non-Insulated	18.54 mm	0.73 in	Snap, Spring	Crimp	7.11 mm	0.28 in	Free Hanging (In-Line)	Tin	0.36 in	9.14 mm	12 AWG	10 AWG	10 Stud
3M MU10-10FBK	6.35 mm	0.25 "	Copper	Non-Insulated	18.54 mm	0.73 in	Standard	Crimp	7.37 mm	0.29 in	Free Hanging (In-Line)	Tin			12 AWG	10 AWG	10 Stud	8.13 mm	0.32 in	Butted Seam
3M MU10-10FFBK	6.35 mm	0.25 "	Copper, ETP	Non-Insulated	18.54 mm	0.73 in	Flanged	Crimp	7.37 mm	0.29 in	Free Hanging (In-Line)	Tin			12 AWG	10 AWG	10 Stud	8.13 mm	0.32 in	Butted Seam
3M MU10-10FK	6.35 mm	0.25 "	Copper, ETP	Non-Insulated	18.54 mm	0.73 in	Standard	Crimp	7.37 mm	0.29 in	Free Hanging (In-Line)	Tin	0.38 "	9.65 mm	12 AWG	10 AWG	10 Stud			Butted Seam
3M MU10-8FBK	6.35 mm	0.25 "	Copper	Non-Insulated	18.54 mm	0.73 in	Standard	Crimp	7.37 mm	0.29 in	Free Hanging (In-Line)	Tin			12 AWG	10 AWG		8.13 mm	0.32 in	Butted Seam	8 Stud
3M MU10-10FLK	6.35 mm	0.25 "	Copper, ETP	Non-Insulated	18.54 mm	0.73 in	Snap, Spring	Crimp	7.11 mm	0.28 in	Free Hanging (In-Line)	Tin			12 AWG	10 AWG	10 Stud	8.13 mm	0.32 in	Butted Seam
3M MU10-4R/SK			Copper, ETP	Non-Insulated	17.27 mm	0.68 in	Circular	Crimp			Free Hanging (In-Line)	Tin			12 AWG	10 AWG	4 Stud	7.11 mm	0.28 in			0.04 in	1.02 mm
3M MU10BCX				Non-Insulated			Butt Splice, Individual Openings, Inline	Crimp							12 AWG	10 AWG								2
3M MU10-10FHTK	6.35 mm	0.25 "	Steel	Non-Insulated	18.54 mm	0.73 in	Standard	Crimp	7.11 mm	0.28 in	Free Hanging (In-Line)	Nickel	0.38 "	9.65 mm	12 AWG	10 AWG	10 Stud			Butted Seam
3M MU10BCHTX-BOTTLE				Fully Insulated			Butt Splice, Individual Openings, Inline	Crimp							12 AWG	10 AWG								2	Yellow
