MU10-10FFBK

Active

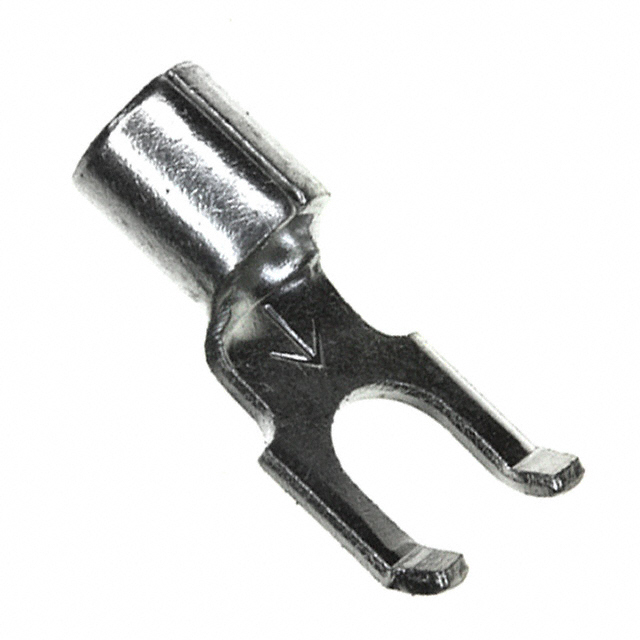

CONN SPADE TERM 10-12AWG #10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMU18-6FFB thru MU10-10FFB Datasheet

MU10-10FFBK

Active

CONN SPADE TERM 10-12AWG #10

Deep-Dive with AI

DocumentsMU18-6FFB thru MU10-10FFB Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MU10 Series

10 Stud Spade Terminal Connector Crimp 10-12 AWG

Documents

Technical documentation and resources

MU18-6FFB thru MU10-10FFB

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MU10-10FFBK	MU10 Series

Color	-	Yellow
Contact Finish	Tin	Tin, Nickel
Contact Material	ETP, Copper	ETP, Copper, Steel
Features	Butted Seam	Butted Seam
Insulation	Non-Insulated	Non-Insulated, Fully Insulated
Length - Overall [x]	18.54 mm	17.27 - 18.54 mm
Length - Overall [x]	0.73 in	0.68 - 0.73 in
Length - Ring Center to Termination	0.29 in	0.28 - 0.29 in
Length - Ring Center to Termination	7.37 mm	7.11 - 7.37 mm
Length - Termination	6.35 mm	6.35 mm
Length - Termination [x]	0.25 "	0.25 "
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	10 Stud	4 - 10 Stud
Stud/Tab Size	-	8 Stud
Terminal Type	Flanged	Snap, Spring, Standard, Flanged, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.04 in
Thickness	-	1.02 mm
Width - Outer Edges	-	0.36 - 0.38 in
Width - Outer Edges	-	9.14 - 9.65 mm
Width - Outer Edges [y]	8.13 mm	7.11 - 8.13 mm
Width - Outer Edges [y]	0.32 in	0.28 - 0.32 in
Wire Gauge [Max]	12 AWG	12 AWG
Wire Gauge [Min]	10 AWG	10 AWG

MU10 Series

CONN SPADE TERM 10-12AWG 10 50PC

Part	Length - Termination	Length - Termination [x]	Contact Material	Insulation	Length - Overall [x]	Length - Overall [x]	Terminal Type	Termination	Length - Ring Center to Termination	Length - Ring Center to Termination	Mounting Type	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Stud/Tab Size	Thickness	Thickness	Number of Wire Entries	Color
3M MU10-10FLX-BOTTLE	6.35 mm	0.25 "	Copper, ETP	Non-Insulated	18.54 mm	0.73 in	Snap, Spring	Crimp	7.11 mm	0.28 in	Free Hanging (In-Line)	Tin	0.36 in	9.14 mm	12 AWG	10 AWG	10 Stud
3M MU10-10FBK	6.35 mm	0.25 "	Copper	Non-Insulated	18.54 mm	0.73 in	Standard	Crimp	7.37 mm	0.29 in	Free Hanging (In-Line)	Tin			12 AWG	10 AWG	10 Stud	8.13 mm	0.32 in	Butted Seam
3M MU10-10FFBK	6.35 mm	0.25 "	Copper, ETP	Non-Insulated	18.54 mm	0.73 in	Flanged	Crimp	7.37 mm	0.29 in	Free Hanging (In-Line)	Tin			12 AWG	10 AWG	10 Stud	8.13 mm	0.32 in	Butted Seam
3M MU10-10FK	6.35 mm	0.25 "	Copper, ETP	Non-Insulated	18.54 mm	0.73 in	Standard	Crimp	7.37 mm	0.29 in	Free Hanging (In-Line)	Tin	0.38 "	9.65 mm	12 AWG	10 AWG	10 Stud			Butted Seam
3M MU10-8FBK	6.35 mm	0.25 "	Copper	Non-Insulated	18.54 mm	0.73 in	Standard	Crimp	7.37 mm	0.29 in	Free Hanging (In-Line)	Tin			12 AWG	10 AWG		8.13 mm	0.32 in	Butted Seam	8 Stud
3M MU10-10FLK	6.35 mm	0.25 "	Copper, ETP	Non-Insulated	18.54 mm	0.73 in	Snap, Spring	Crimp	7.11 mm	0.28 in	Free Hanging (In-Line)	Tin			12 AWG	10 AWG	10 Stud	8.13 mm	0.32 in	Butted Seam
3M MU10-4R/SK			Copper, ETP	Non-Insulated	17.27 mm	0.68 in	Circular	Crimp			Free Hanging (In-Line)	Tin			12 AWG	10 AWG	4 Stud	7.11 mm	0.28 in			0.04 in	1.02 mm
3M MU10BCX				Non-Insulated			Butt Splice, Individual Openings, Inline	Crimp							12 AWG	10 AWG								2
3M MU10-10FHTK	6.35 mm	0.25 "	Steel	Non-Insulated	18.54 mm	0.73 in	Standard	Crimp	7.11 mm	0.28 in	Free Hanging (In-Line)	Nickel	0.38 "	9.65 mm	12 AWG	10 AWG	10 Stud			Butted Seam
3M MU10BCHTX-BOTTLE				Fully Insulated			Butt Splice, Individual Openings, Inline	Crimp							12 AWG	10 AWG								2	Yellow
