SFW12R-1STE1

Obsolete

Amphenol ICC (FCI)

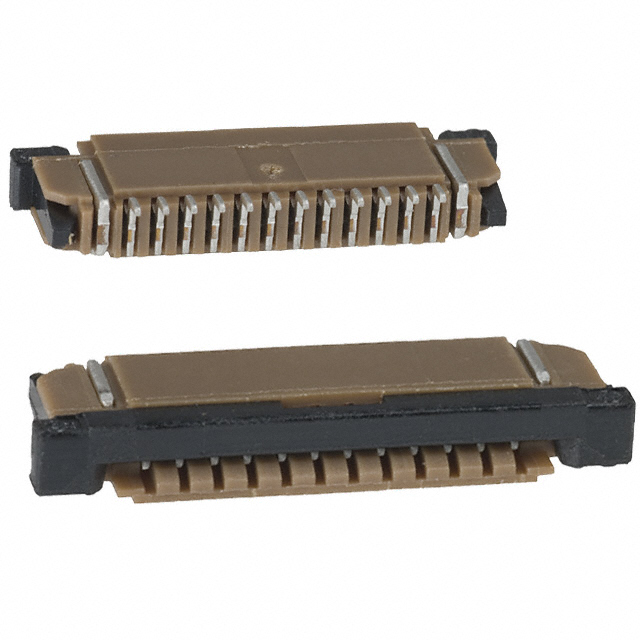

CONN FFC FPC BOTTOM 12POS 1MM RA

SFW12R-1STE1

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC BOTTOM 12POS 1MM RA

Description Specifications Series Pricing CAD Documents

Description

General part information

SFW12R Series

12 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification	SFW12R-1STE1

Actuator Color	Black
Actuator Material	Glass Filled, Polyphenylene Sulfide (PPS)
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin Alloy
Contact Material	Phosphor Bronze
FCB Thickness	0.33 mm
Features	Zero Insertion Force (ZIF)
FFC Thickness	0.3 mm
Flat Flex Type	FFC, FPC
Height Above Board	0.106 in
Housing Color	Brown
Housing Material	PPS, Glass Filled, Polyphenylene Sulfide
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	12
Pitch	0.039 in
Termination	Solder

SFW12R Series

Part	Housing Material	Contact Material	FFC, FCB Thickness	Features	Termination	Contact Finish	Cable End Type	Mounting Type	Actuator Material	Height Above Board	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Flat Flex Type	Pitch	Connector/Contact Type	Voltage Rating	Number of Positions	Housing Color	Mating Cycles	Current Rating	FCB Thickness	FFC Thickness	Locking Feature	Actuator Color
Amphenol ICC (FCI) SFW12R-2STAE1LF	Glass Filled Polyphenylene Sulfide PPS	Phosphor Bronze	0.3 mm	Zero Insertion Force (ZIF)	Solder	Gold	Straight	Right Angle Surface Mount	Glass Filled Polyphenylene Sulfide (PPS)	0.106 in	UL94 V-0	-55 °C	105 °C	FPC	0.039 in	Contacts Top	100 VAC	12	Brown	20 cycles	1 A
Amphenol ICC (FCI) SFW12R-2STE1LF	Glass Filled Polyphenylene Sulfide PPS	Phosphor Bronze		Solder Retention Zero Insertion Force (ZIF)	Solder	Tin	Straight Tapered	Right Angle Surface Mount	Glass Filled Polyphenylene Sulfide (PPS)	0.106 in	UL94 V-0	-55 °C	105 °C	FFC FPC	0.039 in	Contacts Top	100 VAC	12	Brown	20 cycles	1 A	0.33 mm	0.3 mm	Slide Lock	Black
Amphenol ICC (FCI) SFW12R-3STAE1LF	Glass Filled Polyphenylene Sulfide PPS	Phosphor Bronze	0.33 mm	Zero Insertion Force (ZIF)	Solder	Gold	Notched	Right Angle Surface Mount	Glass Filled Polyphenylene Sulfide (PPS)	0.106 in	UL94 V-0	-55 °C	105 °C	FPC	0.039 in	Bottom Contacts	100 VAC	12	Black	20 cycles	1 A			Slide Lock	Brown
Amphenol ICC (FCI) SFW12R-6STE9LF	Glass Filled Polyphenylene Sulfide PPS	Phosphor Bronze	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Solder	Tin	Tapered	Right Angle Surface Mount	Glass Filled Polyphenylene Sulfide (PPS)	0.106 in	UL94 V-0			CIC	0.039 in	Contacts Top		12	Brown					Slide Lock	Beige
Amphenol ICC (FCI) SFW12R-1STAE1LF	Glass Filled Polyphenylene Sulfide PPS	Phosphor Bronze	0.33 mm	Zero Insertion Force (ZIF)	Solder	Gold	Tapered	Right Angle Surface Mount	Glass Filled Polyphenylene Sulfide (PPS)	0.106 in	UL94 V-0	-55 °C	105 °C	FPC	0.039 in	Bottom Contacts	100 VAC	12	Brown	20 cycles	1 A			Slide Lock	Brown
Amphenol ICC (FCI) SFW12R-2STE1	Glass Filled Polyphenylene Sulfide PPS	Phosphor Bronze		Zero Insertion Force (ZIF)	Solder	Tin Alloy	Straight Tapered	Right Angle Surface Mount	Glass Filled Polyphenylene Sulfide (PPS)	0.106 in	UL94 V-0			FFC FPC	0.039 in	Contacts Top		12	Brown			0.33 mm	0.3 mm	Slide Lock	Black
Amphenol ICC (FCI) SFW12R-3STE1LF	Glass Filled Polyphenylene Sulfide PPS	Phosphor Bronze	0.3 mm	Zero Insertion Force (ZIF)	Solder	Tin	Tapered	Right Angle Surface Mount	Glass Filled Polyphenylene Sulfide (PPS)	0.106 in	UL94 V-0	-55 °C	105 °C	FFC FPC	0.039 in	Bottom Contacts	100 VAC	12	Black	20 cycles	1 A			Slide Lock	Black
Amphenol ICC (FCI) SFW12R-1STZE1LF	Glass Filled Polyphenylene Sulfide PPS	Phosphor Bronze		Zero Insertion Force (ZIF)	Solder	Tin	Straight Tapered	Right Angle Surface Mount	Glass Filled Polyphenylene Sulfide (PPS)	0.106 in	UL94 V-0	-55 °C	105 °C	FFC FPC	0.039 in	Bottom Contacts	100 VAC	12	Brown	20 cycles	1 A	0.33 mm	0.3 mm	Slide Lock	Black
Amphenol ICC (FCI) SFW12R-1STE1	Glass Filled Polyphenylene Sulfide PPS	Phosphor Bronze		Zero Insertion Force (ZIF)	Solder	Tin Alloy	Straight Tapered	Right Angle Surface Mount	Glass Filled Polyphenylene Sulfide (PPS)	0.106 in	UL94 V-0			FFC FPC	0.039 in	Bottom Contacts		12	Brown			0.33 mm	0.3 mm	Slide Lock	Black
Amphenol ICC (FCI) SFW12R-1STE9LF	Glass Filled Polyphenylene Sulfide PPS	Phosphor Bronze		Zero Insertion Force (ZIF)	Solder	Tin	Straight Tapered	Right Angle Surface Mount	Glass Filled Polyphenylene Sulfide (PPS)	0.106 in	UL94 V-0	-55 °C	105 °C	FFC FPC	0.039 in	Bottom Contacts	100 VAC	12	Brown	20 cycles	1 A	0.33 mm	0.3 mm	Slide Lock	Black
