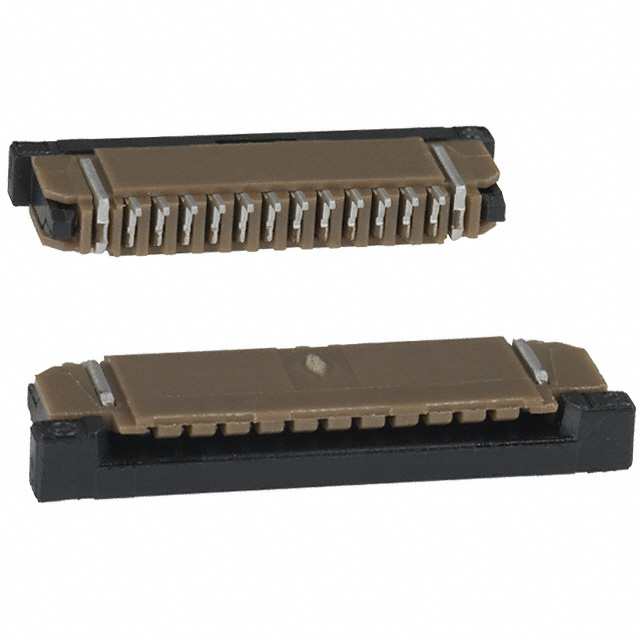

SFW12R-2STE1

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 12POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SFW12R-2STE1

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 12POS 1MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFW12R-2STE1

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Top
Contact Finish	Tin Alloy
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.106 in
Height Above Board [z]	2.7 mm
Housing Color	Brown
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder

SFW12R Series

Part	Termination	Flat Flex Type	Voltage Rating	Pitch [x]	Pitch [x]	Contact Material	Height Above Board [z]	Height Above Board [z]	Housing Color	Connector/Contact Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Number of Positions	Locking Feature	Housing Material	Mounting Type	Cable End Type	Actuator Material	Contact Finish	FFC, FCB Thickness	Actuator Color	Features	FFC, FCB Thickness [z]
Amphenol ICC (FCI) SFW12R-3STAE1LF	Solder	FPC	100 V	0.039 in	1 mm	Phosphor Bronze	0.106 in	2.7 mm	Black	Contacts Bottom	UL94 V-0	105 ░C	-55 °C	20	12	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Notched	Polyphenylene Sulfide (PPS) Glass Filled	Gold	0.33 mm	Brown
Amphenol ICC (FCI) SFW12R-6STE9LF	Solder	CIC		0.039 in	1 mm	Phosphor Bronze	0.106 in	2.7 mm	Brown	Contacts Top	UL94 V-0				12	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin	0.3 mm	Beige	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW12R-1STAE1LF	Solder	FPC	100 V	0.039 in	1 mm	Phosphor Bronze	0.106 in	2.7 mm	Brown	Contacts Bottom	UL94 V-0	105 ░C	-55 °C	20	12	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Gold	0.33 mm	Brown
Amphenol ICC (FCI) SFW12R-2STE1	Solder	FFC FPC		0.039 in	1 mm	Phosphor Bronze	0.106 in	2.7 mm	Brown	Contacts Top	UL94 V-0				12	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin Alloy		Black		0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW12R-3STE1LF	Solder	FFC FPC	100 V	0.039 in	1 mm	Phosphor Bronze	0.106 in	2.7 mm	Black	Contacts Bottom	UL94 V-0	105 ░C	-55 °C	20	12	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin	0.3 mm	Black
Amphenol ICC (FCI) SFW12R-1STZE1LF	Solder	FFC FPC	100 V	0.039 in	1 mm	Phosphor Bronze	0.106 in	2.7 mm	Brown	Contacts Bottom	UL94 V-0	105 ░C	-55 °C	20	12	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin		Black		0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW12R-1STE1	Solder	FFC FPC		0.039 in	1 mm	Phosphor Bronze	0.106 in	2.7 mm	Brown	Contacts Bottom	UL94 V-0				12	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin Alloy		Black		0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW12R-1STE9LF	Solder	FFC FPC	100 V	0.039 in	1 mm	Phosphor Bronze	0.106 in	2.7 mm	Brown	Contacts Bottom	UL94 V-0	105 ░C	-55 °C	20	12	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin		Black		0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW12R-4STE1LF	Solder	FFC FPC	100 V	0.039 in	1 mm	Phosphor Bronze	0.106 in	2.7 mm	Black	Contacts Top	UL94 V-0	105 ░C	-55 °C	20	12	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Notched Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin		Brown	Solder Retention Zero Insertion Force (ZIF)	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW12R-2STE5LF	Solder	FFC FPC	100 V	0.039 in	1 mm	Phosphor Bronze	0.106 in	2.7 mm	Brown	Contacts Top	UL94 V-0	105 ░C	-55 °C	20	12	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin		Black		0.3 mm 0.33 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SFW12R Series

12 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
