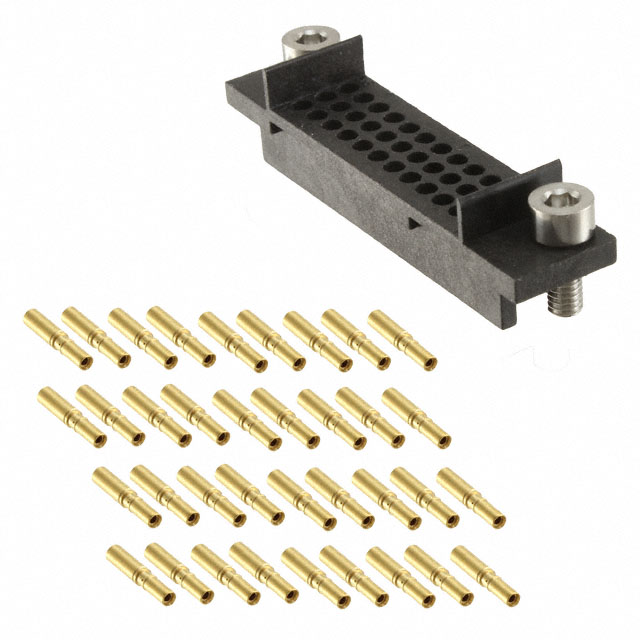

ActiveRECTANGULAR CONNECTOR, DATAMATE J-TEK M80 SERIES, 36 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 3 ROW
Deep-Dive with AI
Search across all available documentation for this part.
M80-7053605
ActiveRECTANGULAR CONNECTOR, DATAMATE J-TEK M80 SERIES, 36 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 3 ROW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-7053605 |
|---|---|
| Cable Termination | Crimp |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 11.8 Áin |
| Contact Type | Female Socket |
| Features | Jackscrews |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 36 |
| Number of Rows | 3 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 2 mm |
| Row Spacing | 0.079 in |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-705 Series
The Datamate J-Tek M80-7 series 2mm pitch female rectangular fully shrouded Unsealed Connector with replaceable contacts for interconnecting board to board and board to wire. The range covers female connector suitable for crimp or through board termination. The connector is intended for use as a connector in high packing density electronic equipment. The connector is polarised to prevent mis-matching and can be produced with a jackscrew feature as required.
