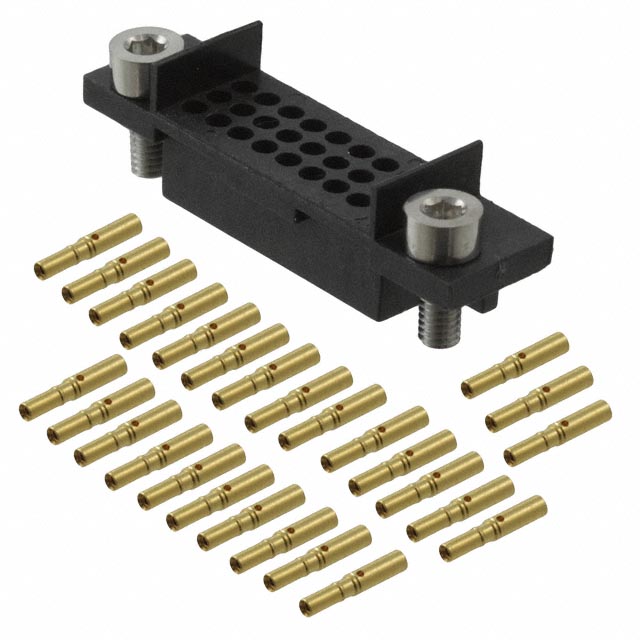

M80-7052705
ActiveHarwin Inc.
CONN RCPT 27POS CRIMP 24-28AWG
Deep-Dive with AI
Search across all available documentation for this part.
M80-7052705
ActiveHarwin Inc.
CONN RCPT 27POS CRIMP 24-28AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-7052705 |
|---|---|
| Cable Termination | Crimp |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 11.8 Áin |
| Contact Type | Female Socket |
| Features | Jackscrews |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 27 |
| Number of Rows | 3 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 2 mm |
| Row Spacing | 0.079 in |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 19.03 | |
| 24 | $ 15.20 | |||
| 120 | $ 13.57 | |||
| 504 | $ 12.27 | |||
Description
General part information
M80-705 Series
27 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
