TL1250F180RRRCLR

Active

E-Switch

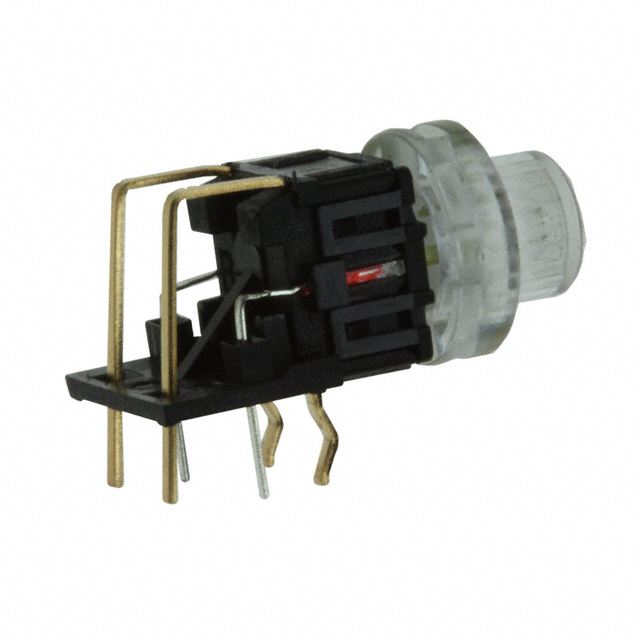

TACTILE SWITCHES 50MA 12VDC RED LED GOLD, ROUND, CLEAR

TL1250F180RRRCLR

Active

E-Switch

TACTILE SWITCHES 50MA 12VDC RED LED GOLD, ROUND, CLEAR

Description Specifications Series Pricing CAD Documents

Description

General part information

TL1250 Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification	TL1250F180RRRCLR

Actuator Length (Right Angle)	10.7 mm
Actuator Orientation	Side Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Color	Red
Contact Rating (Current)	0.05 A
Features	Tactile Feedback
Illumination	Illuminated
Illumination Type	LED
Illumination Voltage (Nominal)	2.3 VDC
Mechanical Life (Cycles)	50000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	180 gf
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Outline Length	8.3 mm
Outline Width	10.3 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	PC Pin

TL1250 Series

Part	Outline Length	Outline Width	Switch Function	Actuator Type	Mounting Type	Illumination Voltage (Nominal)	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Length (Right Angle)	Actuator Orientation	Features	Termination Style	Illumination Type	Color	Operating Force	Circuit	Contact Rating (Current)	Illumination	Switch Travel	Mechanical Life (Cycles)
E-Switch TL1250F180BQRCLR	8.3 mm	10.3 mm	Off-Mom	Round Button	Right Angle Through Hole	4 V	70 °C	-20 °C	10.7 mm	Side Actuated	Tactile Feedback	PC Pin	LED	Blue	180 gf	SPST-NO	0.05 A	Illuminated	0.2 mm	50000 Cycles
E-Switch TL1250F120BQRCLR	8.3 mm	10.3 mm	Off-Mom	Round Button	Right Angle Through Hole	4 V	70 °C	-20 °C	10.7 mm	Side Actuated	Tactile Feedback	PC Pin	LED	Blue	120 gf	SPST-NO	0.05 A	Illuminated	0.2 mm	50000 Cycles
E-Switch TL1250F180RQRCLR	8.3 mm	10.3 mm	Off-Mom	Round Button	Right Angle Through Hole	2.3 VDC	70 °C	-20 °C	10.7 mm	Side Actuated	Tactile Feedback	PC Pin	LED	Red	180 gf	SPST-NO	0.05 A	Illuminated	0.2 mm	50000 Cycles
E-Switch TL1250F280GRRCLR	8.3 mm	10.3 mm	Off-Mom	Round Button	Right Angle Through Hole	2.3 VDC	70 °C	-20 °C	10.7 mm	Side Actuated	Tactile Feedback	PC Pin	LED	Green	280 gf	SPST-NO	0.05 A	Illuminated	0.2 mm	50000 Cycles
E-Switch TL1250F280RQRCLR	8.3 mm	10.3 mm	Off-Mom	Round Button	Right Angle Through Hole	2.3 VDC	70 °C	-20 °C	10.7 mm	Side Actuated	Tactile Feedback	PC Pin	LED	Red	280 gf	SPST-NO	0.05 A	Illuminated	0.2 mm	50000 Cycles
E-Switch TL1250F280ARN	8.3 mm	10.3 mm	Off-Mom	Plunger for Cap	Right Angle Through Hole		70 °C	-20 °C	6.4 mm	Side Actuated	Tactile Feedback	PC Pin			280 gf	SPST-NO	0.05 A	Non-Illuminated	0.2 mm	50000 Cycles
E-Switch TL1250F180GQRCLR	8.3 mm	10.3 mm	Off-Mom	Round Button	Right Angle Through Hole	2.3 VDC	70 °C	-20 °C	10.7 mm	Side Actuated	Tactile Feedback	PC Pin	LED	Green	180 gf	SPST-NO	0.05 A	Illuminated	0.2 mm	50000 Cycles
E-Switch TL1250F180AQRCLR	8.3 mm	10.3 mm	Off-Mom	Round Button	Right Angle Through Hole		70 °C	-20 °C	10.7 mm	Side Actuated	Tactile Feedback	PC Pin			180 gf	SPST-NO	0.05 A	Illuminated	0.2 mm	50000 Cycles
E-Switch TL1250F180RGRRCLR	8.3 mm	10.3 mm	Off-Mom	Round Button	Right Angle Through Hole	2.3 VDC	70 °C	-20 °C	10.7 mm	Side Actuated		PC Pin	LED	Green Red	180 gf	SPST-NO	0.05 A	Illuminated	0.2 mm	50000 Cycles
E-Switch TL1250F180RRRCLR	8.3 mm	10.3 mm	Off-Mom	Round Button	Right Angle Through Hole	2.3 VDC	70 °C	-20 °C	10.7 mm	Side Actuated	Tactile Feedback	PC Pin	LED	Red	180 gf	SPST-NO	0.05 A	Illuminated	0.2 mm	50000 Cycles
