TL1250F280RQRCLR

Active

E-Switch

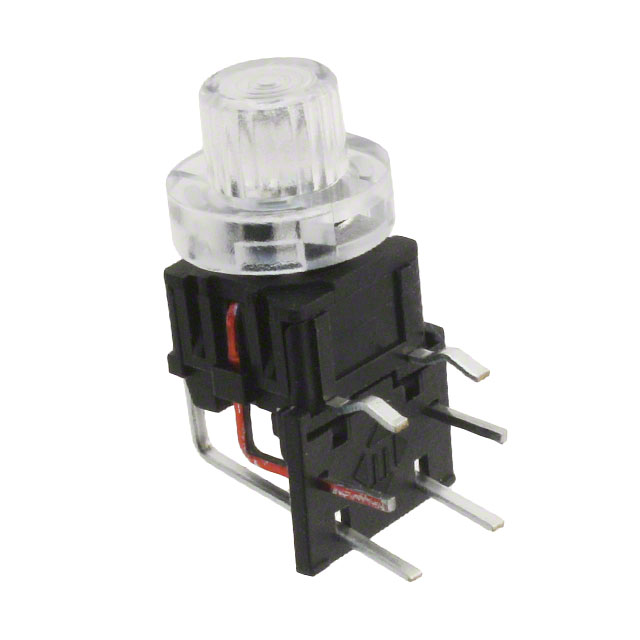

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

TL1250F280RQRCLR

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL1250F280RQRCLR

Actuator Length, Right Angle	10.7 mm
Actuator Orientation	Side Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2.3 VDC
Mounting Type	Through Hole, Right Angle
Operating Force	280 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	8.3 mm
Outline [y]	10.3 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	PC Pin

TL1250 Series

Part	Actuator Length, Right Angle	Switch Function	Circuit	Switch Travel	Termination Style	Outline [y]	Outline [x]	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage	Actuator Orientation	Illumination Voltage (Nominal)	Features	Illumination Type, Color	Actuator Type	Operating Force	Mounting Type
E-Switch TL1250F120BQRCLR	10.7 mm	Off-Mom	SPST-NO	0.2 mm	PC Pin	10.3 mm	8.3 mm	Illuminated	-20 C	70 °C	0.05 A 12 VDC	Side Actuated	4 VDC	Tactile Feedback	Blue LED	Round Button	120 gf	Through Hole Right Angle
E-Switch TL1250F180RQRCLR	10.7 mm	Off-Mom	SPST-NO	0.2 mm	PC Pin	10.3 mm	8.3 mm	Illuminated	-20 C	70 °C	0.05 A 12 VDC	Side Actuated	2.3 VDC	Tactile Feedback	LED Red	Round Button	180 gf	Through Hole Right Angle
E-Switch TL1250F280RQRCLR	10.7 mm	Off-Mom	SPST-NO	0.2 mm	PC Pin	10.3 mm	8.3 mm	Illuminated	-20 C	70 °C	0.05 A 12 VDC	Side Actuated	2.3 VDC	Tactile Feedback	LED Red	Round Button	280 gf	Through Hole Right Angle
E-Switch TL1250F280ARN	6.4 mm	Off-Mom	SPST-NO	0.2 mm	PC Pin	10.3 mm	8.3 mm	Non-Illuminated	-20 C	70 °C	0.05 A 12 VDC	Side Actuated		Tactile Feedback		Plunger for Cap	280 gf	Through Hole Right Angle
E-Switch TL1250F180GQRCLR	10.7 mm	Off-Mom	SPST-NO	0.2 mm	PC Pin	10.3 mm	8.3 mm	Illuminated	-20 C	70 °C	0.05 A 12 VDC	Side Actuated	2.3 VDC	Tactile Feedback	Green LED	Round Button	180 gf	Through Hole Right Angle
E-Switch TL1250F180AQRCLR	10.7 mm	Off-Mom	SPST-NO	0.2 mm	PC Pin	10.3 mm	8.3 mm	Illuminated	-20 C	70 °C	0.05 A 12 VDC	Side Actuated		Tactile Feedback		Round Button	180 gf	Through Hole Right Angle
E-Switch TL1250F180RGRRCLR	10.7 mm	Off-Mom	SPST-NO	0.2 mm	PC Pin	10.3 mm	8.3 mm	Illuminated	-20 C	70 °C	0.05 A 12 VDC	Side Actuated	2.3 VDC		Green/Red LED	Round Button	180 gf	Through Hole Right Angle
E-Switch TL1250F180RRRCLR	10.7 mm	Off-Mom	SPST-NO	0.2 mm	PC Pin	10.3 mm	8.3 mm	Illuminated	-20 C	70 °C	0.05 A 12 VDC	Side Actuated	2.3 VDC	Tactile Feedback	LED Red	Round Button	180 gf	Through Hole Right Angle
E-Switch TL1250F180GRRCLR	10.7 mm	Off-Mom	SPST-NO	0.2 mm	PC Pin	10.3 mm	8.3 mm	Illuminated	-20 C	70 °C	0.05 A 12 VDC	Side Actuated	2.3 VDC	Tactile Feedback	Green LED	Round Button	180 gf	Through Hole Right Angle
E-Switch TL1250F280GQRCLR	10.7 mm	Off-Mom	SPST-NO	0.2 mm	PC Pin	10.3 mm	8.3 mm	Illuminated	-20 C	70 °C	0.05 A 12 VDC	Side Actuated	2.3 VDC	Tactile Feedback	Green LED	Round Button	280 gf	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	600	$ 1.55

Description

General part information

TL1250 Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
