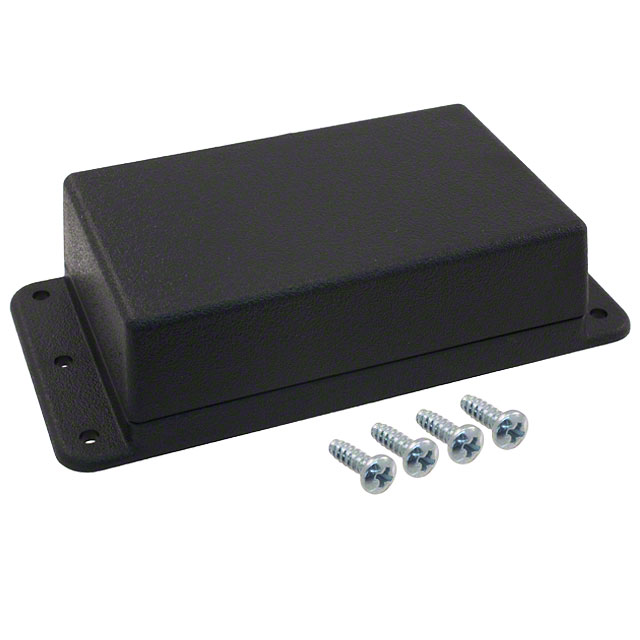

WM011,BK

Active

Serpac

PLASTIC ENCLOSURE, WM SERIES, SURFACE MOUNT, WALL MOUNT, PLASTIC, 27.94 MM, 59 MM, 117 MM, IP40

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

WM011,BK

Active

Serpac

PLASTIC ENCLOSURE, WM SERIES, SURFACE MOUNT, WALL MOUNT, PLASTIC, 27.94 MM, 59 MM, 117 MM, IP40

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM011,BK

Area (L x W)	52.3 cm²
Area (L x W)	8.1 in²
Color	Black
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	27.94 mm
Height [z]	1.1 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	91.44 mm
Size / Dimension [x]	3.6 in
Size / Dimension [y]	57.15 mm
Size / Dimension [y]	2.25 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.117 lb
Weight	53.07 g

WM011 Series

Part	Area (L x W) [custom]	Area (L x W) [custom]	Material Flammability Rating	Color	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Container Type	Material	Thickness	Thickness	Design	Weight	Weight	Ratings	Area (L x W)	Area (L x W)
Serpac WM011R,GY	52.7 cm²	8.17 in²	UL94 HB	Gray	27.94 mm	1.1 in	91.44 mm	3.6 in	57.66 mm	2.27 in	Front Access Mounting Flange PCB Supports Wall Mount	Box	Plastic ABS	2.54 mm	0.1 in	Cover Included	0.117 lb	53.07 g	IP40 NEMA 1
Serpac WM011RI,AL	52.7 cm²	8.17 in²	UL94 HB	Almond	27.94 mm	1.1 in	91.44 mm	3.6 in	57.66 mm	2.27 in	Front Access Mounting Flange PCB Supports Wall Mount	Box	Plastic ABS	2.54 mm	0.1 in	Cover Included	0.117 lb	53.07 g	IP40 NEMA 1
Serpac WM011,BK			UL94 HB	Black	27.94 mm	1.1 in	91.44 mm	3.6 in	57.15 mm	2.25 in	Mounting Flange PCB Supports Wall Mount	Box	Plastic ABS	2.54 mm	0.1 in	Cover Included	0.117 lb	53.07 g	IP40 NEMA 1	52.3 cm²	8.1 in²
Serpac WM011R,AL	52.7 cm²	8.17 in²	UL94 HB	Almond	27.94 mm	1.1 in	91.44 mm	3.6 in	57.66 mm	2.27 in	Front Access Mounting Flange PCB Supports Wall Mount	Box	Plastic ABS	2.54 mm	0.1 in	Cover Included	0.117 lb	53.07 g	IP40 NEMA 1
Serpac WM011I,AL			UL94 HB	Almond	27.94 mm	1.1 in	91.44 mm	3.6 in	57.15 mm	2.25 in	Mounting Flange PCB Supports Wall Mount	Box	Plastic ABS	2.54 mm	0.1 in	Cover Included	0.117 lb	53.07 g	IP40 NEMA 1	52.3 cm²	8.1 in²
Serpac WM011,AL	8.1 in˛	52.3 cm˛	UL94 HB	Almond	27.94 mm	1.1 in	91.44 mm	3.6 in	57.15 mm	2.25 in	Mounting Flange PCB Supports Wall Mount	Box	Plastic ABS	2.54 mm	0.1 in	Cover Included	0.117 lb	53.07 g	IP40 NEMA 1
Serpac WM011I,BK	8.1 in˛	52.3 cm˛	UL94 HB	Black	27.94 mm	1.1 in	91.44 mm	3.6 in	57.15 mm	2.25 in	Mounting Flange PCB Supports Wall Mount	Box	Plastic ABS	2.54 mm	0.1 in	Cover Included	0.117 lb	53.07 g	IP40 NEMA 1
Serpac WM011RI,GY	52.7 cm²	8.17 in²	UL94 HB	Gray	27.94 mm	1.1 in	91.44 mm	3.6 in	57.66 mm	2.27 in	Front Access Mounting Flange PCB Supports Wall Mount	Box	Plastic ABS	2.54 mm	0.1 in	Cover Included	0.117 lb	53.07 g	IP40 NEMA 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.14
		10	$ 7.11
		25	$ 6.46
		50	$ 5.56
		100	$ 4.91
		250	$ 4.14
		500	$ 3.62
		1000	$ 3.36

Description

General part information

WM011 Series

Box Plastic, ABS Black Cover Included 3.600" L x 2.250" W (91.44mm x 57.15mm) X 1.100" (27.94mm)

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
