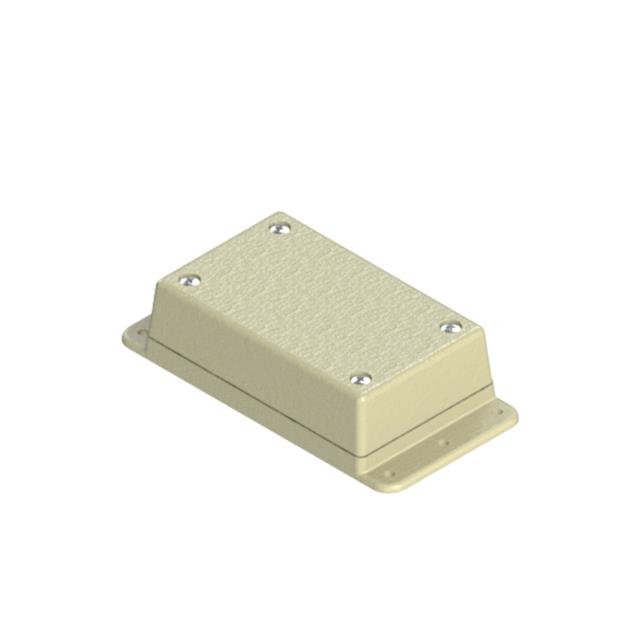

Specification	WM011R,AL

Area (L x W)	8.17 in²
Color	Almond
Container Type	Box
Design	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height	1.1 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	3.6 in
Size / Dimension Width	2.27 in
Thickness	0.1 in
Weight	0.117 lb

WM011 Series

Part	Weight	Color	Thickness	Size / Dimension Width	Size / Dimension Length	Material Flammability Rating	Features	Ratings	Area (L x W)	Design	Container Type	Height	Material
Serpac WM011,GY	0.117 lb	Gray	0.1 in	2.25 in	3.6 in	UL94 HB	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.1 in²	Cover Included	Box	1.1 in	ABS Plastic
Serpac WM011R,BK	0.117 lb	Black	0.1 in	2.27 in	3.6 in	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.17 in²	Cover Included	Box	1.1 in	ABS Plastic
Serpac WM011R,GY	0.117 lb	Gray	0.1 in	2.27 in	3.6 in	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.17 in²	Cover Included	Box	1.1 in	ABS Plastic
Serpac WM011I,GY	0.117 lb	Gray	0.1 in	2.25 in	3.6 in	UL94 HB	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.1 in²	Cover Included	Box	1.1 in	ABS Plastic
Serpac WM011RI,AL	0.117 lb	Almond	0.1 in	2.27 in	3.6 in	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.17 in²	Cover Included	Box	1.1 in	ABS Plastic
Serpac WM011R,AL	0.117 lb	Almond	0.1 in	2.27 in	3.6 in	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.17 in²	Cover Included	Box	1.1 in	ABS Plastic
Serpac WM011I,AL	0.117 lb	Almond	0.1 in	2.25 in	3.6 in	UL94 HB	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.1 in²	Cover Included	Box	1.1 in	ABS Plastic
Serpac WM011I,BK	0.117 lb	Black	0.1 in	2.25 in	3.6 in	UL94 HB	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.1 in²	Cover Included	Box	1.1 in	ABS Plastic
Serpac WM011RI,GY	0.117 lb	Gray	0.1 in	2.27 in	3.6 in	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.17 in²	Cover Included	Box	1.1 in	ABS Plastic
