357-048-424-278

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-048-424-278

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-048-424-278

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	48
Number of Positions/Bay/Row [custom]	24
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

357-048 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Color	Contact Type	Contact Material	Termination	Flange Feature	Termination Rows	Card Type	Read Out	Number of Rows	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Mounting Type	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Features	Gender	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 357-048-558-268	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows	Copper Alloy	Solder Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	2	Non Specified - Dual Edge	Dual	2	24	0.156 in	3.96 mm	Through Hole Right Angle	Polyester Thermoplastic	-40 °C	105 ░C	48	10 Áin	0.25 Ám	Card Guides	Female
EDAC Inc. 357-048-458-278	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Black	Semi Bellows	Copper Alloy	Solder	4-40 Flush Mount Threaded Insert Top Opening	2	Non Specified - Dual Edge	Dual	2	24	0.156 in	3.96 mm	Through Hole Right Angle	Polyester Thermoplastic	-40 °C	105 ░C	48			Card Guides	Female
EDAC Inc. 357-048-555-278	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows	Copper Alloy	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	2	Non Specified - Dual Edge	Dual	2	24	0.156 in	3.96 mm	Board Edge Straddle Mount	Polyester Thermoplastic	-40 °C	105 ░C	48	10 Áin	0.25 Ám		Female
EDAC Inc. 357-048-456-204	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Black	Semi Bellows	Copper Alloy	Solder	Flush Mount Top Opening Unthreaded	2	Non Specified - Dual Edge	Dual	2	24	0.156 in	3.96 mm	Board Edge Straddle Mount	Polyester Thermoplastic	-40 °C	105 ░C	48				Female	3.96 mm	0.156 in
EDAC Inc. 357-048-524-204	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows	Copper Alloy	Solder	Flush Mount Top Opening Unthreaded	2	Non Specified - Dual Edge	Dual	2	24	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	-40 °C	105 ░C	48	10 Áin	0.25 Ám		Female	3.96 mm	0.156 in
EDAC Inc. 357-048-440-207	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Black	Semi Bellows	Copper Alloy	Wire Wrap	Flush Mount M3 Threaded Insert Top Opening	2	Non Specified - Dual Edge	Dual	2	24	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	-40 °C	105 ░C	48				Female
EDAC Inc. 357-048-555-258	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows	Copper Alloy	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	2	Non Specified - Dual Edge	Dual	2	24	0.156 in	3.96 mm	Board Edge Straddle Mount	Polyester Thermoplastic	-40 °C	105 ░C	48	10 Áin	0.25 Ám		Female
EDAC Inc. 357-048-460-203	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Black	Semi Bellows	Copper Alloy	Solder	Floating Bobbin Flush Mount	2	Non Specified - Dual Edge	Dual	2	24	0.156 in	3.96 mm	Board Edge Straddle Mount	Polyester Thermoplastic	-40 °C	105 ░C	48				Female	2.95 mm	0.116 in
EDAC Inc. 357-048-424-278	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Black	Semi Bellows	Copper Alloy	Solder	4-40 Flush Mount Threaded Insert Top Opening	2	Non Specified - Dual Edge	Dual	2	24	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	-40 °C	105 ░C	48			Card Guides	Female
EDAC Inc. 357-048-500-212	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows	Copper Alloy	Solder Eyelet(s)	Flush Mount Side Opening Unthreaded	2	Non Specified - Dual Edge	Dual	2	24	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	-40 °C	105 ░C	48	10 Áin	0.25 Ám		Female	3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 15.75
Newark	Each	1	$ 18.29
		100	$ 11.97
		250	$ 10.43
		500	$ 8.69
		1000	$ 6.57

Description

General part information

357-048 Series

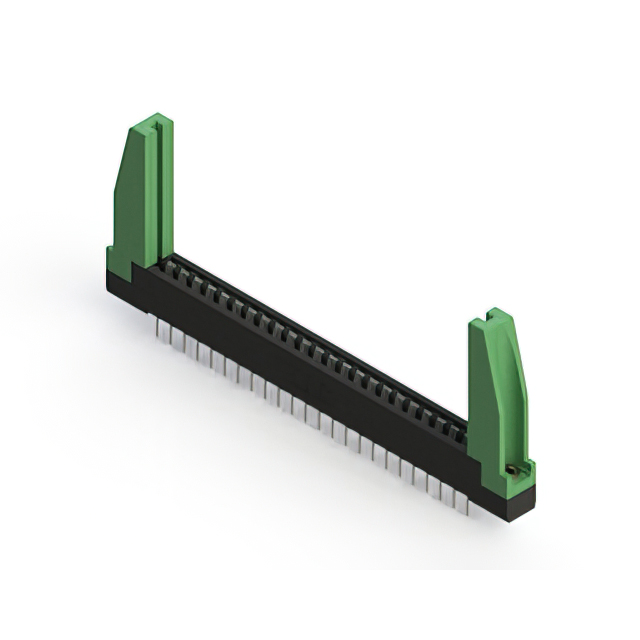

48 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
