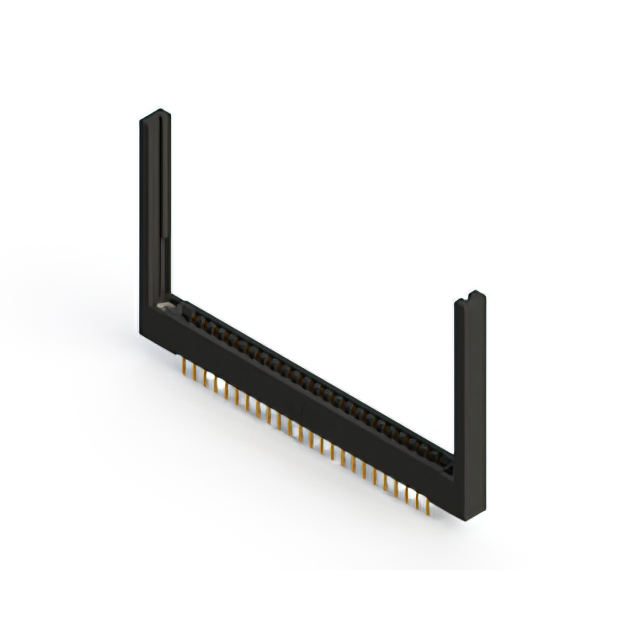

357-048-558-268
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 48POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-048-558-268
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 48POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-048-558-268 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 48 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap, Solder |
| Termination Rows | 2 |
357-048 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Color | Contact Type | Contact Material | Termination | Flange Feature | Termination Rows | Card Type | Read Out | Number of Rows | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Mounting Type | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Features | Gender | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | Semi Bellows | Copper Alloy | Solder Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | Dual | 2 | 24 | 0.156 in | 3.96 mm | Through Hole Right Angle | Polyester Thermoplastic | -40 °C | 105 ░C | 48 | 10 Áin | 0.25 Ám | Card Guides | Female | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Black | Semi Bellows | Copper Alloy | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | Dual | 2 | 24 | 0.156 in | 3.96 mm | Through Hole Right Angle | Polyester Thermoplastic | -40 °C | 105 ░C | 48 | Card Guides | Female | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | Semi Bellows | Copper Alloy | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | Dual | 2 | 24 | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Polyester Thermoplastic | -40 °C | 105 ░C | 48 | 10 Áin | 0.25 Ám | Female | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Black | Semi Bellows | Copper Alloy | Solder | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge | Dual | 2 | 24 | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Polyester Thermoplastic | -40 °C | 105 ░C | 48 | Female | 3.96 mm | 0.156 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | Semi Bellows | Copper Alloy | Solder | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge | Dual | 2 | 24 | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | 48 | 10 Áin | 0.25 Ám | Female | 3.96 mm | 0.156 in | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Black | Semi Bellows | Copper Alloy | Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | Dual | 2 | 24 | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | 48 | Female | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | Semi Bellows | Copper Alloy | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | Dual | 2 | 24 | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Polyester Thermoplastic | -40 °C | 105 ░C | 48 | 10 Áin | 0.25 Ám | Female | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Black | Semi Bellows | Copper Alloy | Solder | Floating Bobbin Flush Mount | 2 | Non Specified - Dual Edge | Dual | 2 | 24 | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Polyester Thermoplastic | -40 °C | 105 ░C | 48 | Female | 2.95 mm | 0.116 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Black | Semi Bellows | Copper Alloy | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | Dual | 2 | 24 | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | 48 | Card Guides | Female | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | Semi Bellows | Copper Alloy | Solder Eyelet(s) | Flush Mount Side Opening Unthreaded | 2 | Non Specified - Dual Edge | Dual | 2 | 24 | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | 48 | 10 Áin | 0.25 Ám | Female | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.88 | |
Description
General part information
357-048 Series
48 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
