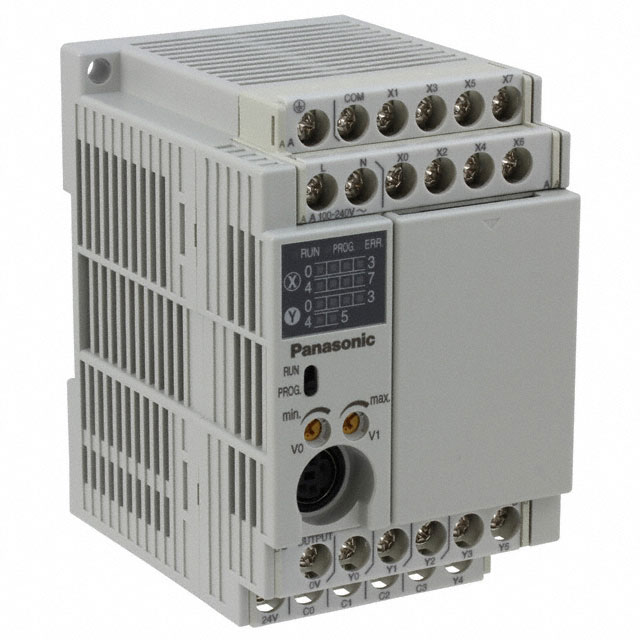

AFPX-C14R

Obsolete

Panasonic Industrial Automation Sales

CONTROL LOG 8 IN 6 OUT 100-240V

Deep-Dive with AI

Search across all available documentation for this part.

AFPX-C14R

Obsolete

Panasonic Industrial Automation Sales

CONTROL LOG 8 IN 6 OUT 100-240V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFPX-C14R

Approval Agency	cULus, CE
Communications	Option Cards Available
Display Type	No Display
Expandable	8 Modules
Memory Size	12 K Words
Mounting Type	Chassis Mount, DIN Rail
Number of Inputs and Type	8
Number of Inputs and Type	Digital
Number of Outputs and Type	Relay
Number of Outputs and Type [x]	6
Software	FPWINPRO7
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC
Weight	0.617 lb
Weight	279.87 g

AFPX-C Series

Part	Memory Size	Display Type	Mounting Type	Number of Inputs and Type	Number of Inputs and Type	Software	Weight	Weight	Expandable	Number of Outputs and Type [custom]	Number of Outputs and Type	Approval Agency	Communications	Voltage - Supply	Number of Outputs and Type	Number of Outputs and Type [custom]	Weight	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Outputs and Type	For Use With/Related Products	Accessory Type	Number of Outputs and Type [x]
Panasonic Industrial Automation Sales AFPX-C30PD	32 K Words	No Display	Chassis Mount DIN Rail	Digital	16	FPWINPRO7	1.1 lbs	499 g	8 Modules	14	Solid State	CE cULus	Option Cards Available USB	24 VDC
Panasonic Industrial Automation Sales AFPX-C60TD	32 K Words	No Display	Chassis Mount DIN Rail		32	FPWINPRO7		1.8 lbs	8 Modules	28		CE cULus	Option Cards Available USB	24 VDC	Option Cards Available	Solid State	816.5 g
Panasonic Industrial Automation Sales AFPX-C30RD	32 K Words	No Display	Chassis Mount DIN Rail	Digital	16	FPWINPRO7	1.1 lbs	499 g	8 Modules			CE cULus	Option Cards Available USB	24 VDC	14 - Relay
Panasonic Industrial Automation Sales AFPX-C14TD	12 K Words	No Display	Chassis Mount DIN Rail	Digital	8	FPWINPRO7	0.617 lb	279.87 g	8 Modules	6		CE cULus	Option Cards Available	24 VDC		Solid State
Panasonic Industrial Automation Sales AFPX-C60R	32 K Words	No Display	Chassis Mount DIN Rail		32	FPWINPRO7		1.8 lbs	8 Modules			CE cULus	Option Cards Available USB		Relay		816.5 g	100 VAC	240 VAC	28
Panasonic Industrial Automation Sales AFPX-COM1																					FP-X Series	Communications Option Card
Panasonic Industrial Automation Sales AFPX-COM2																					FP-X Series	Communications Option Card
Panasonic Industrial Automation Sales AFPX-C14R	12 K Words	No Display	Chassis Mount DIN Rail	Digital	8	FPWINPRO7	0.617 lb	279.87 g	8 Modules			CE cULus	Option Cards Available		Relay			100 VAC	240 VAC				6
Panasonic Industrial Automation Sales AFPX-C14T	12 K Words	No Display	Chassis Mount DIN Rail	Digital	8	FPWINPRO7	0.617 lb	279.87 g	8 Modules	6		CE cULus	Option Cards Available			Solid State		100 VAC	240 VAC
Panasonic Industrial Automation Sales AFPX-C30R	32 K Words	No Display	Chassis Mount DIN Rail	Digital	16	FPWINPRO7	1.1 lbs	499 g	8 Modules			CE cULus	Option Cards Available USB		14 - Relay			100 VAC	240 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AFPX-C Series

Programmable Logic Controller (PLC) Chassis Mount, DIN Rail 100 ~ 240VAC

Documents

Technical documentation and resources

No documents available
