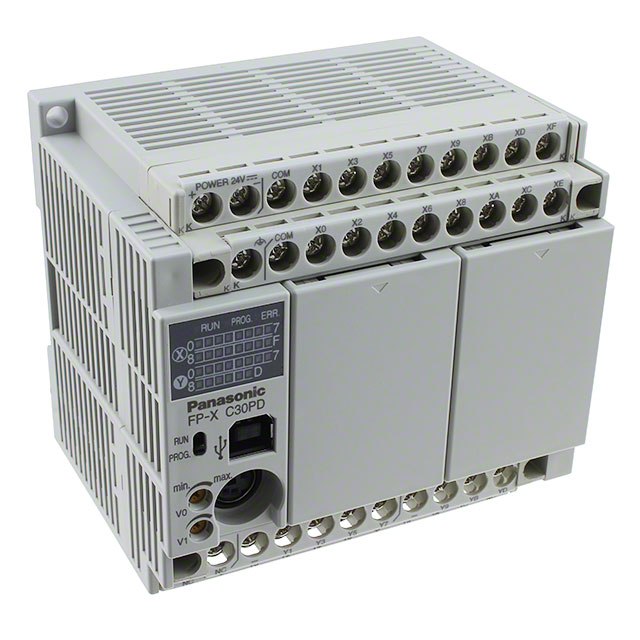

AFPX-C30PD

Obsolete

Panasonic Industrial Automation Sales

CONTROL LOGIC 16 IN 14 OUT 24V

Deep-Dive with AI

Search across all available documentation for this part.

AFPX-C30PD

Obsolete

Panasonic Industrial Automation Sales

CONTROL LOGIC 16 IN 14 OUT 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFPX-C30PD

Approval Agency	cULus, CE
Communications	USB, Option Cards Available
Display Type	No Display
Expandable	8 Modules
Memory Size	32 K Words
Mounting Type	Chassis Mount, DIN Rail
Number of Inputs and Type	Digital
Number of Inputs and Type	16
Number of Outputs and Type	Solid State
Number of Outputs and Type [custom]	14
Software	FPWINPRO7
Voltage - Supply	24 VDC
Weight	1.1 lbs
Weight	499 g

AFPX-C Series

Part	Memory Size	Display Type	Mounting Type	Number of Inputs and Type	Number of Inputs and Type	Software	Weight	Weight	Expandable	Number of Outputs and Type [custom]	Number of Outputs and Type	Approval Agency	Communications	Voltage - Supply	Number of Outputs and Type	Number of Outputs and Type [custom]	Weight	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Outputs and Type	For Use With/Related Products	Accessory Type	Number of Outputs and Type [x]
Panasonic Industrial Automation Sales AFPX-C30PD	32 K Words	No Display	Chassis Mount DIN Rail	Digital	16	FPWINPRO7	1.1 lbs	499 g	8 Modules	14	Solid State	CE cULus	Option Cards Available USB	24 VDC
Panasonic Industrial Automation Sales AFPX-C60TD	32 K Words	No Display	Chassis Mount DIN Rail		32	FPWINPRO7		1.8 lbs	8 Modules	28		CE cULus	Option Cards Available USB	24 VDC	Option Cards Available	Solid State	816.5 g
Panasonic Industrial Automation Sales AFPX-C30RD	32 K Words	No Display	Chassis Mount DIN Rail	Digital	16	FPWINPRO7	1.1 lbs	499 g	8 Modules			CE cULus	Option Cards Available USB	24 VDC	14 - Relay
Panasonic Industrial Automation Sales AFPX-C14TD	12 K Words	No Display	Chassis Mount DIN Rail	Digital	8	FPWINPRO7	0.617 lb	279.87 g	8 Modules	6		CE cULus	Option Cards Available	24 VDC		Solid State
Panasonic Industrial Automation Sales AFPX-C60R	32 K Words	No Display	Chassis Mount DIN Rail		32	FPWINPRO7		1.8 lbs	8 Modules			CE cULus	Option Cards Available USB		Relay		816.5 g	100 VAC	240 VAC	28
Panasonic Industrial Automation Sales AFPX-COM1																					FP-X Series	Communications Option Card
Panasonic Industrial Automation Sales AFPX-COM2																					FP-X Series	Communications Option Card
Panasonic Industrial Automation Sales AFPX-C14R	12 K Words	No Display	Chassis Mount DIN Rail	Digital	8	FPWINPRO7	0.617 lb	279.87 g	8 Modules			CE cULus	Option Cards Available		Relay			100 VAC	240 VAC				6
Panasonic Industrial Automation Sales AFPX-C14T	12 K Words	No Display	Chassis Mount DIN Rail	Digital	8	FPWINPRO7	0.617 lb	279.87 g	8 Modules	6		CE cULus	Option Cards Available			Solid State		100 VAC	240 VAC
Panasonic Industrial Automation Sales AFPX-C30R	32 K Words	No Display	Chassis Mount DIN Rail	Digital	16	FPWINPRO7	1.1 lbs	499 g	8 Modules			CE cULus	Option Cards Available USB		14 - Relay			100 VAC	240 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AFPX-C Series

Programmable Logic Controller (PLC) Chassis Mount, DIN Rail 24VDC

Documents

Technical documentation and resources

No documents available
