AFB0524MB

Active

Delta Electronics

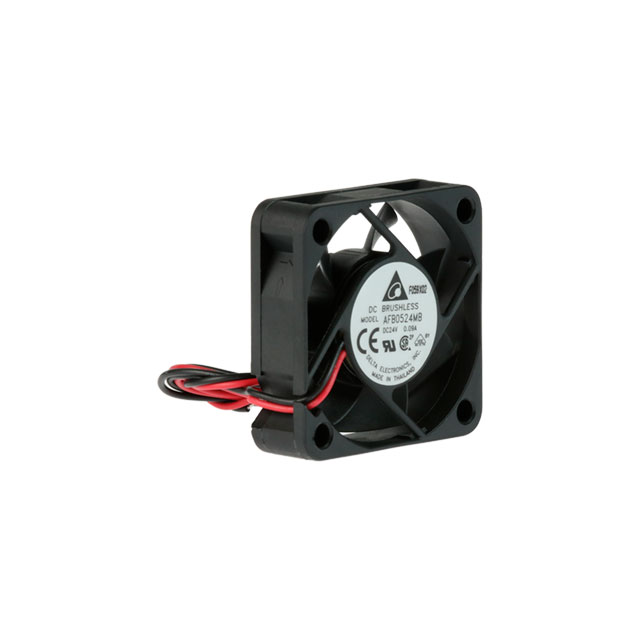

FAN AXIAL 50X15MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AFB0524MB

Active

Delta Electronics

FAN AXIAL 50X15MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.80
		10	$ 12.90
		25	$ 11.70
		50	$ 10.80
		100	$ 9.45
		336	$ 8.85
		672	$ 8.25

Description

General part information

AFB0524 Series

Fan Tubeaxial 24VDC Square - 50mm L x 50mm H Ball 12.4 CFM (0.347m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AFB0524MB	AFB0524 Series

Air Flow	0.347 m³/min	0.347 - 0.568 mł/min
Air Flow	12.4 CFM	12.4 - 20.3 CFM
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	60 mA	0.09 - 100 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Speed Sensor (Tach), Locked Rotor Protection
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	28 dB	28 - 40.5 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	1.44 W	1.44 - 2.4 W
RPM	4800 RPM	4800 - 7000 RPM
Size / Dimension [x]	50 mm	50 mm
Size / Dimension [z]	50 mm	50 mm
Static Pressure	44.8 Pa	44.8 - 78.5 Pa
Static Pressure	0.18 in H2O	0.18 - 0.315 in H2O
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range [Max]	27.6 VDC	27.6 VDC
Voltage Range [Min]	14 VDC	14 VDC
Weight	0.071 lb	0.071 - 0.085 lb
Weight	32.21 g	32.21 - 38.56 g
Width	-	20 mm
Width [x]	15 mm	15 mm

AFB0524 Series

FAN AXIAL 50X15MM 24VDC WIRE

Part	Approval Agency	Width [x]	RPM	Weight	Weight	Termination	Material - Blade	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Lifetime @ Temp.	Power (Watts)	Current Rating (Amps)	Features	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Static Pressure	Static Pressure	Air Flow	Air Flow	Ingress Protection	Width [y]
Delta Electronics AFB0524HB	CE, CSA, UL, VDE	15 mm	5600 RPM	0.071 lb	32.21 g	2 Wire Leads	Plastic	50 mm	50 mm	Tubeaxial	Ball	27.6 VDC	14 VDC	Plastic	70000 Hrs	1.68 W	70 mA	Locked Rotor Protection, Speed Sensor (Tach)	32 dB	70 °C	70 °C	-10 °C	-10 °C	24 VDC	59.8 Pa	0.24 in H2O
Delta Electronics AFB0524VHD-TZW5	CE, CSA, UL, VDE		7000 RPM	0.085 lb	38.56 g	2 Wire Leads	Plastic	50 mm	50 mm	Tubeaxial	Ball	27.6 VDC	14 VDC	Plastic	70000 Hrs	2.4 W	100 mA		40.5 dB(A)	70 °C	70 °C	-10 °C	-10 °C	24 VDC	75.5 Pa	0.303 in H2O	20.3 CFM	0.568 mł/min	IP55 - Dust Protected, Water Resistant	20 mm
Delta Electronics AFB0524HHB	CE, CSA, UL, VDE	15 mm	6400 RPM	0.071 lb	32.21 g	2 Wire Leads	Plastic	50 mm	50 mm	Tubeaxial	Ball	27.6 VDC	14 VDC	Plastic	70000 Hrs	1.92 W			36 dB	70 °C	70 °C	-10 °C	-10 °C	24 VDC	78.5 Pa	0.315 in H2O	16.2 CFM	0.454 m³/min
Delta Electronics AFB0524VHD	CE, CSA, UL, VDE		7000 RPM	0.085 lb	38.56 g	2 Wire Leads	Plastic	50 mm	50 mm	Tubeaxial	Ball	27.6 VDC	14 VDC	Plastic	70000 Hrs	2.4 W	100 mA		40.5 dB(A)	70 °C	70 °C	-10 °C	-10 °C	24 VDC	75.5 Pa	0.303 in H2O	20.3 CFM	0.568 mł/min		20 mm
Delta Electronics AFB0524MB	CE, CSA, UL, VDE	15 mm	4800 RPM	0.071 lb	32.21 g	2 Wire Leads	Plastic	50 mm	50 mm	Tubeaxial	Ball	27.6 VDC	14 VDC	Plastic	70000 Hrs	1.44 W	60 mA		28 dB	70 °C	70 °C	-10 °C	-10 °C	24 VDC	44.8 Pa	0.18 in H2O	12.4 CFM	0.347 m³/min
Delta Electronics AFB0524HHD	CE, CSA, UL, VDE		6400 RPM	0.085 lb	38.56 g	2 Wire Leads	Plastic	50 mm	50 mm	Tubeaxial	Ball	27.6 VDC	14 VDC	Plastic	70000 Hrs	2.16 W	0.09 A		37 dB	70 °C	70 °C	-10 °C	-10 °C	24 VDC	63.3 Pa	0.254 in H2O	18.3 CFM	0.512 m³/min		20 mm
