AFB0524VHD

Active

Delta Electronics

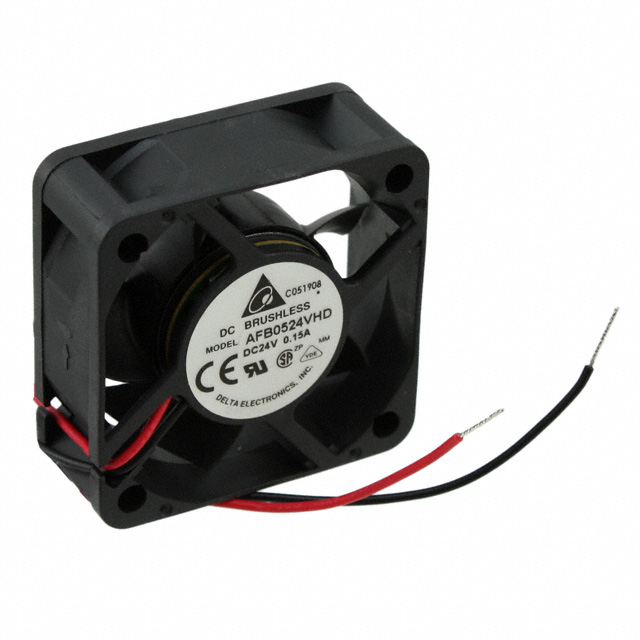

FAN AXIAL 50X20MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans, Blowers CSA Cert +2

AFB0524VHD

Active

Delta Electronics

FAN AXIAL 50X20MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Fans, Blowers CSA Cert +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.80
		10	$ 12.90
		25	$ 11.70
		50	$ 10.80
		100	$ 9.45
		252	$ 8.85
		504	$ 8.25

Description

General part information

AFB0524 Series

Fan Tubeaxial 24VDC Square - 50mm L x 50mm H Ball 20.3 CFM (0.568m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Specification	AFB0524VHD	AFB0524 Series

Air Flow	20.3 CFM	12.4 - 20.3 CFM
Air Flow	0.568 mł/min	0.347 - 0.568 mł/min
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	100 mA	0.09 - 100 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Speed Sensor (Tach), Locked Rotor Protection
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	40.5 dB(A)	28 - 40.5 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	2.4 W	1.44 - 2.4 W
RPM	7000 RPM	4800 - 7000 RPM
Size / Dimension [x]	50 mm	50 mm
Size / Dimension [z]	50 mm	50 mm
Static Pressure	0.303 in H2O	0.18 - 0.315 in H2O
Static Pressure	75.5 Pa	44.8 - 78.5 Pa
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range [Max]	27.6 VDC	27.6 VDC
Voltage Range [Min]	14 VDC	14 VDC
Weight	38.56 g	32.21 - 38.56 g
Weight	0.085 lb	0.071 - 0.085 lb
Width	-	15 mm
Width [y]	20 mm	20 mm

Part	Approval Agency	Width [x]	RPM	Weight	Weight	Termination	Material - Blade	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Lifetime @ Temp.	Power (Watts)	Current Rating (Amps)	Features	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Static Pressure	Static Pressure	Air Flow	Air Flow	Ingress Protection	Width [y]
Delta Electronics AFB0524HB	CE, CSA, UL, VDE	15 mm	5600 RPM	0.071 lb	32.21 g	2 Wire Leads	Plastic	50 mm	50 mm	Tubeaxial	Ball	27.6 VDC	14 VDC	Plastic	70000 Hrs	1.68 W	70 mA	Locked Rotor Protection, Speed Sensor (Tach)	32 dB	70 °C	70 °C	-10 °C	-10 °C	24 VDC	59.8 Pa	0.24 in H2O
Delta Electronics AFB0524VHD-TZW5	CE, CSA, UL, VDE		7000 RPM	0.085 lb	38.56 g	2 Wire Leads	Plastic	50 mm	50 mm	Tubeaxial	Ball	27.6 VDC	14 VDC	Plastic	70000 Hrs	2.4 W	100 mA		40.5 dB(A)	70 °C	70 °C	-10 °C	-10 °C	24 VDC	75.5 Pa	0.303 in H2O	20.3 CFM	0.568 mł/min	IP55 - Dust Protected, Water Resistant	20 mm
Delta Electronics AFB0524HHB	CE, CSA, UL, VDE	15 mm	6400 RPM	0.071 lb	32.21 g	2 Wire Leads	Plastic	50 mm	50 mm	Tubeaxial	Ball	27.6 VDC	14 VDC	Plastic	70000 Hrs	1.92 W			36 dB	70 °C	70 °C	-10 °C	-10 °C	24 VDC	78.5 Pa	0.315 in H2O	16.2 CFM	0.454 m³/min
Delta Electronics AFB0524VHD	CE, CSA, UL, VDE		7000 RPM	0.085 lb	38.56 g	2 Wire Leads	Plastic	50 mm	50 mm	Tubeaxial	Ball	27.6 VDC	14 VDC	Plastic	70000 Hrs	2.4 W	100 mA		40.5 dB(A)	70 °C	70 °C	-10 °C	-10 °C	24 VDC	75.5 Pa	0.303 in H2O	20.3 CFM	0.568 mł/min		20 mm
Delta Electronics AFB0524MB	CE, CSA, UL, VDE	15 mm	4800 RPM	0.071 lb	32.21 g	2 Wire Leads	Plastic	50 mm	50 mm	Tubeaxial	Ball	27.6 VDC	14 VDC	Plastic	70000 Hrs	1.44 W	60 mA		28 dB	70 °C	70 °C	-10 °C	-10 °C	24 VDC	44.8 Pa	0.18 in H2O	12.4 CFM	0.347 m³/min
Delta Electronics AFB0524HHD	CE, CSA, UL, VDE		6400 RPM	0.085 lb	38.56 g	2 Wire Leads	Plastic	50 mm	50 mm	Tubeaxial	Ball	27.6 VDC	14 VDC	Plastic	70000 Hrs	2.16 W	0.09 A		37 dB	70 °C	70 °C	-10 °C	-10 °C	24 VDC	63.3 Pa	0.254 in H2O	18.3 CFM	0.512 m³/min		20 mm
