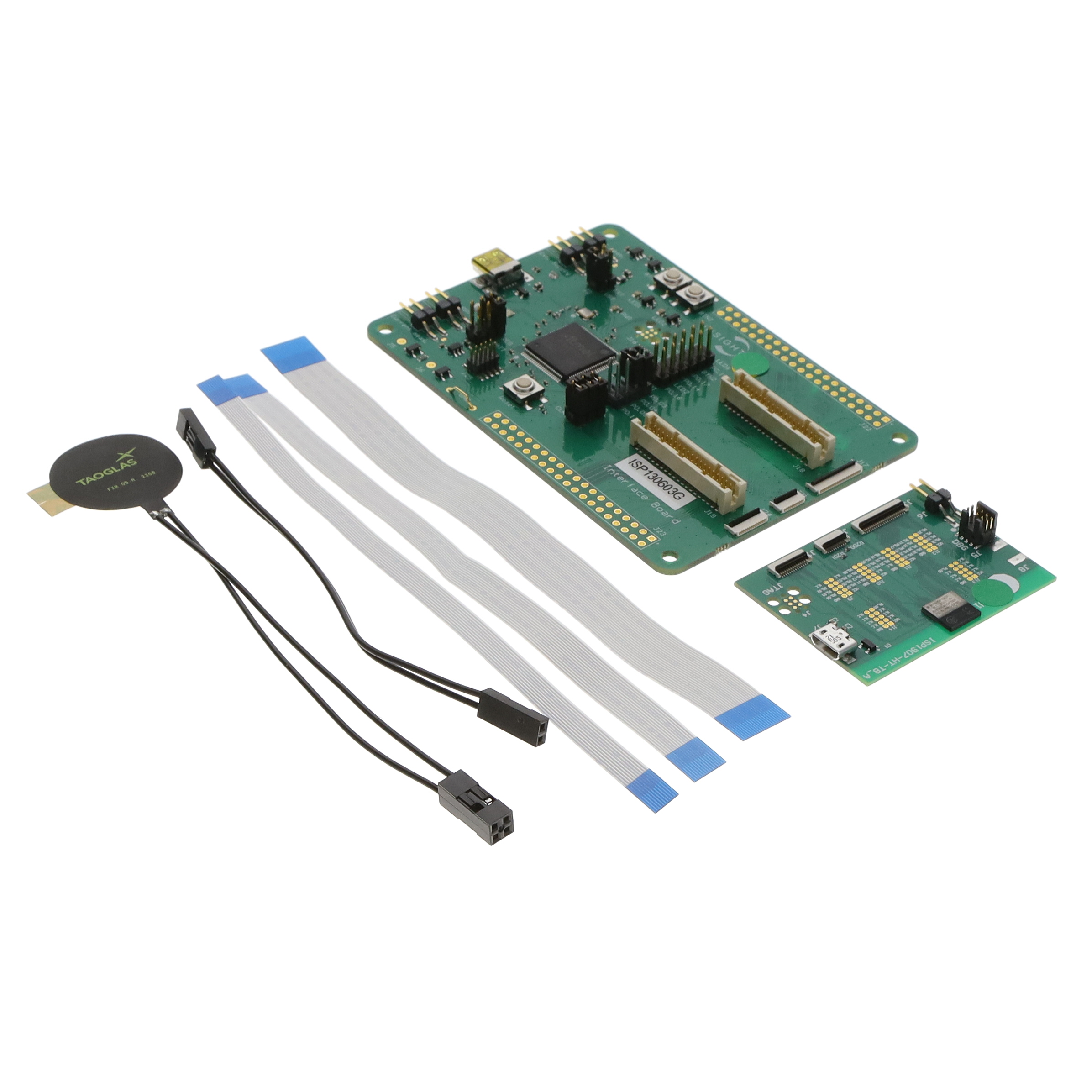

ISP1907-HT-EB
ActiveInsight SIP
BT 5.1 EVAL KIT
Deep-Dive with AI
Search across all available documentation for this part.
ISP1907-HT-EB
ActiveInsight SIP
BT 5.1 EVAL KIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ISP1907-HT-EB | ISP1907 Series |
|---|---|---|
| Antenna Type | - | Integrated, Chip |
| Current - Receiving | - | 6 - 6.1 mA |
| Current - Transmitting | - | 5.8 - 6.1 mA |
| Current - Transmitting | - | 3.4 - 3.5 mA |
| Data Rate | - | 2 Mbps |
| For Use With/Related Products | ISP1907 | ISP1907 |
| Frequency | 2.4 GHz | 2.4 GHz |
| Frequency | - | 2.5 GHz |
| Frequency | - | 2.36 GHz |
| Memory Size | - | 1.5 - 512 kB |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 - 105 ░C |
| Package / Case | - | 62-SMD Module |
| Power - Output | - | 4 - 8 dBm |
| Protocol | - | Bluetooth v5.1, ANT®, Thread, Zigbee® |
| RF Family/Standard | - | 802.15.4, Bluetooth/ANT |
| Sensitivity | - | -104 dBm |
| Serial Interfaces | - | PDM, GPIO, USB, I2C, ADC, SPI, UART |
| Supplied Contents | Board(s) | Board(s) |
| Type | Transceiver, Bluetooth® 5.x (BLE) | Transceiver, Bluetooth® 5.x (BLE) |
| Utilized IC / Part | - | nRF52833, nRF52811 |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 1.7 V |
ISP1907 Series
RF TXRX MOD BT /ANT CHIP SMD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Serial Interfaces | RF Family/Standard | Power - Output | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensitivity | Current - Receiving | Utilized IC / Part | Memory Size | Mounting Type | Package / Case | Protocol | Antenna Type | Data Rate | Current - Transmitting [Max] | Current - Transmitting [Min] | Frequency [Max] | Frequency [Min] | Frequency | Supplied Contents | For Use With/Related Products | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Insight SIP ISP1907-HT-RS | -40 °C | 105 ░C | ADC, GPIO, I2C, PDM, SPI, UART, USB | 802.15.4, Bluetooth/ANT | 8 dBm | 3.6 V | 1.7 V | -104 dBm | 6 mA | nRF52833 | 128 kB, 512 kB | Surface Mount | 62-SMD Module | ANT®, Bluetooth v5.1, Thread, Zigbee® | Integrated, Chip | 2 Mbps | 6.1 mA | 3.5 mA | 2.5 GHz | 2.36 GHz | ||||
Insight SIP ISP1907-LL-JT | -40 °C | 85 °C | ADC, GPIO, I2C, PDM, SPI, UART | 802.15.4, Bluetooth/ANT | 4 dBm | 3.6 V | 1.7 V | -104 dBm | 6.1 mA | nRF52811 | 1.5 Mb, 24 kB | Surface Mount | 62-SMD Module | ANT®, Bluetooth v5.1, Thread, Zigbee® | Integrated, Chip | 2 Mbps | 5.8 mA | 3.4 mA | 2.5 GHz | 2.36 GHz | ||||
Insight SIP ISP1907-LL-RS | -40 °C | 85 °C | ADC, GPIO, I2C, PDM, SPI, UART | 802.15.4, Bluetooth/ANT | 4 dBm | 3.6 V | 1.7 V | -104 dBm | 6.1 mA | nRF52811 | 1.5 Mb, 24 kB | Surface Mount | 62-SMD Module | ANT®, Bluetooth v5.1, Thread, Zigbee® | Integrated, Chip | 2 Mbps | 5.8 mA | 3.4 mA | 2.5 GHz | 2.36 GHz | ||||
Insight SIP ISP1907-LL-R2 | -40 °C | 85 °C | ADC, GPIO, I2C, PDM, SPI, UART | 802.15.4, Bluetooth/ANT | 4 dBm | 3.6 V | 1.7 V | -104 dBm | 6.1 mA | nRF52811 | 1.5 Mb, 24 kB | Surface Mount | 62-SMD Module | ANT®, Bluetooth v5.1, Thread, Zigbee® | Integrated, Chip | 2 Mbps | 5.8 mA | 3.4 mA | 2.5 GHz | 2.36 GHz | ||||
Insight SIP ISP1907-HT-EB | 2.4 GHz | Board(s) | ISP1907 | Bluetooth® 5.x (BLE), Transceiver | ||||||||||||||||||||
Insight SIP ISP1907-LL-TB | 2.4 GHz | Board(s) | ISP1907 | Bluetooth® 5.x (BLE), Transceiver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 203.00 | |
Description
General part information
ISP1907 Series
- ISP1907 Transceiver; Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board
Documents
Technical documentation and resources
