ISP1907-LL-TB

Active

Insight SIP

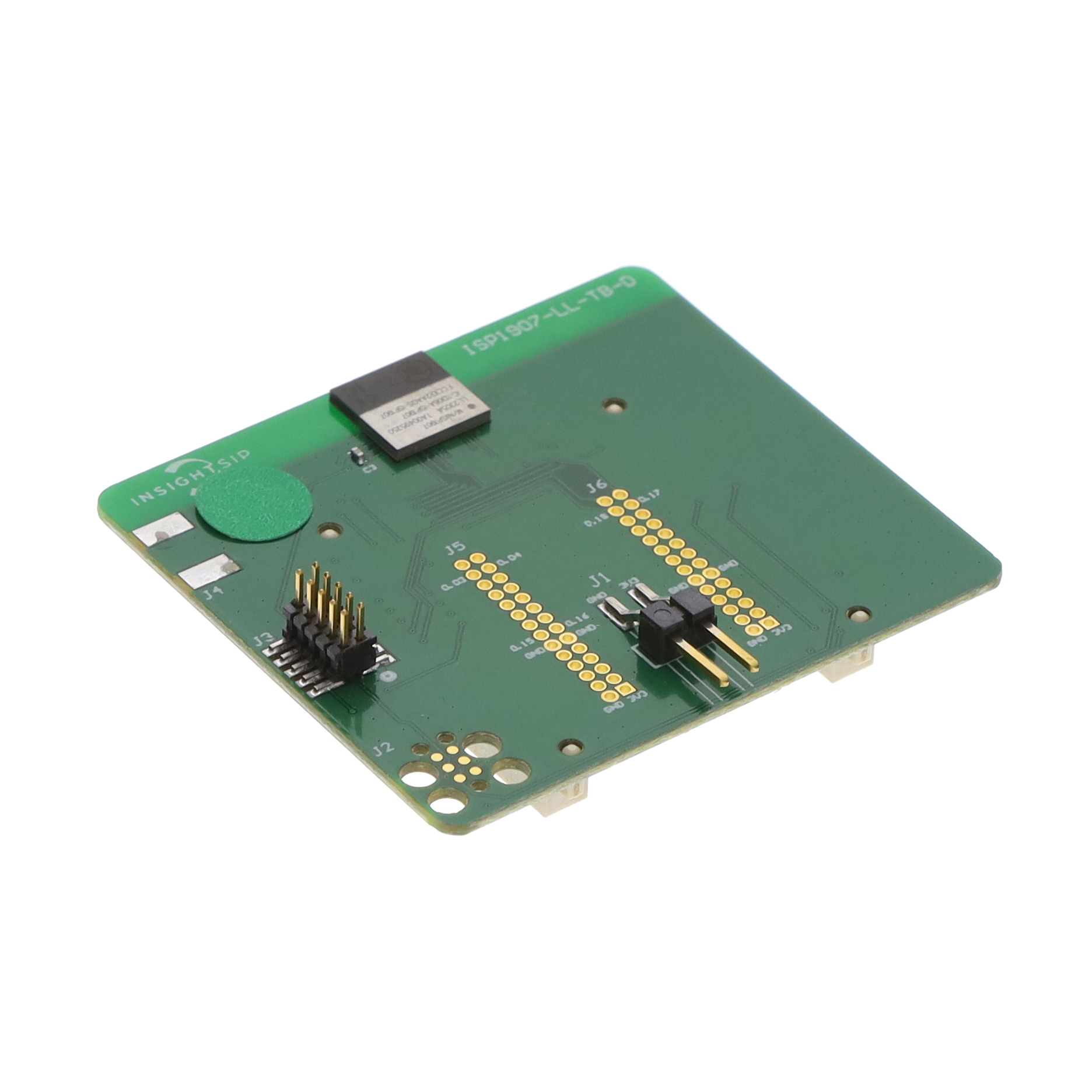

BT 5.1 TEST BOARD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Guide for Nordic nRF52 Based Modules

ISP1907-LL-TB

Active

Insight SIP

BT 5.1 TEST BOARD

Deep-Dive with AI

DocumentsDatasheet Product Guide for Nordic nRF52 Based Modules

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.00

Description

General part information

ISP1907 Series

- ISP1907 Transceiver; Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board

Documents

Technical documentation and resources

Datasheet

Product Guide for Nordic nRF52 Based Modules

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ISP1907-LL-TB	ISP1907 Series

Antenna Type	-	Integrated, Chip
Current - Receiving	-	6 - 6.1 mA
Current - Transmitting	-	5.8 - 6.1 mA
Current - Transmitting	-	3.4 - 3.5 mA
Data Rate	-	2 Mbps
For Use With/Related Products	ISP1907	ISP1907
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.5 GHz
Frequency	-	2.36 GHz
Memory Size	-	1.5 - 512 kB
Mounting Type	-	Surface Mount
Operating Temperature	-	-40 °C
Operating Temperature	-	85 - 105 ░C
Package / Case	-	62-SMD Module
Power - Output	-	4 - 8 dBm
Protocol	-	Bluetooth v5.1, ANT®, Thread, Zigbee®
RF Family/Standard	-	802.15.4, Bluetooth/ANT
Sensitivity	-	-104 dBm
Serial Interfaces	-	PDM, GPIO, USB, I2C, ADC, SPI, UART
Supplied Contents	Board(s)	Board(s)
Type	Transceiver, Bluetooth® 5.x (BLE)	Transceiver, Bluetooth® 5.x (BLE)
Utilized IC / Part	-	nRF52833, nRF52811
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.7 V

ISP1907 Series

RF TXRX MOD BT /ANT CHIP SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Serial Interfaces	RF Family/Standard	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity	Current - Receiving	Utilized IC / Part	Memory Size	Mounting Type	Package / Case	Protocol	Antenna Type	Data Rate	Current - Transmitting [Max]	Current - Transmitting [Min]	Frequency [Max]	Frequency [Min]	Frequency	Supplied Contents	For Use With/Related Products	Type
Insight SIP ISP1907-HT-RS	-40 °C	105 ░C	ADC, GPIO, I2C, PDM, SPI, UART, USB	802.15.4, Bluetooth/ANT	8 dBm	3.6 V	1.7 V	-104 dBm	6 mA	nRF52833	128 kB, 512 kB	Surface Mount	62-SMD Module	ANT®, Bluetooth v5.1, Thread, Zigbee®	Integrated, Chip	2 Mbps	6.1 mA	3.5 mA	2.5 GHz	2.36 GHz
Insight SIP ISP1907-LL-JT	-40 °C	85 °C	ADC, GPIO, I2C, PDM, SPI, UART	802.15.4, Bluetooth/ANT	4 dBm	3.6 V	1.7 V	-104 dBm	6.1 mA	nRF52811	1.5 Mb, 24 kB	Surface Mount	62-SMD Module	ANT®, Bluetooth v5.1, Thread, Zigbee®	Integrated, Chip	2 Mbps	5.8 mA	3.4 mA	2.5 GHz	2.36 GHz
Insight SIP ISP1907-LL-RS	-40 °C	85 °C	ADC, GPIO, I2C, PDM, SPI, UART	802.15.4, Bluetooth/ANT	4 dBm	3.6 V	1.7 V	-104 dBm	6.1 mA	nRF52811	1.5 Mb, 24 kB	Surface Mount	62-SMD Module	ANT®, Bluetooth v5.1, Thread, Zigbee®	Integrated, Chip	2 Mbps	5.8 mA	3.4 mA	2.5 GHz	2.36 GHz
Insight SIP ISP1907-LL-R2	-40 °C	85 °C	ADC, GPIO, I2C, PDM, SPI, UART	802.15.4, Bluetooth/ANT	4 dBm	3.6 V	1.7 V	-104 dBm	6.1 mA	nRF52811	1.5 Mb, 24 kB	Surface Mount	62-SMD Module	ANT®, Bluetooth v5.1, Thread, Zigbee®	Integrated, Chip	2 Mbps	5.8 mA	3.4 mA	2.5 GHz	2.36 GHz
Insight SIP ISP1907-HT-EB																					2.4 GHz	Board(s)	ISP1907	Bluetooth® 5.x (BLE), Transceiver
Insight SIP ISP1907-LL-TB																					2.4 GHz	Board(s)	ISP1907	Bluetooth® 5.x (BLE), Transceiver
