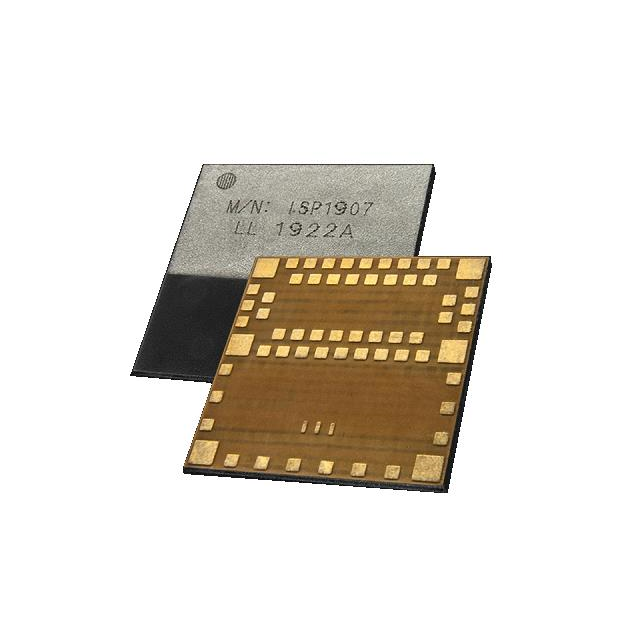

ISP1907-LL-JT

Active

Insight SIP

RF TXRX MOD BT /ANT CHIP SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Guide for Nordic nRF52 Based Modules Datasheet

ISP1907-LL-JT

Active

Insight SIP

RF TXRX MOD BT /ANT CHIP SMD

Deep-Dive with AI

DocumentsProduct Guide for Nordic nRF52 Based Modules Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ISP1907-LL-JT	ISP1907 Series

Antenna Type	Integrated, Chip	Integrated, Chip
Current - Receiving	6.1 mA	6 - 6.1 mA
Current - Transmitting [Max]	5.8 mA	5.8 - 6.1 mA
Current - Transmitting [Min]	3.4 mA	3.4 - 3.5 mA
Data Rate	2 Mbps	2 Mbps
For Use With/Related Products	-	ISP1907
Frequency	-	2.4 GHz
Frequency [Max]	2.5 GHz	2.5 GHz
Frequency [Min]	2.36 GHz	2.36 GHz
Memory Size	1.5 Mb, 24 kB	1.5 - 512 kB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 - 105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	62-SMD Module	62-SMD Module
Power - Output	4 dBm	4 - 8 dBm
Protocol	Bluetooth v5.1, ANT®, Thread, Zigbee®	Bluetooth v5.1, ANT®, Thread, Zigbee®
RF Family/Standard	802.15.4, Bluetooth/ANT	802.15.4, Bluetooth/ANT
Sensitivity	-104 dBm	-104 dBm
Serial Interfaces	SPI, UART, ADC, GPIO, I2C, PDM	PDM, GPIO, USB, I2C, ADC, SPI, UART
Supplied Contents	-	Board(s)
Type	-	Transceiver, Bluetooth® 5.x (BLE)
Utilized IC / Part	nRF52811	nRF52833, nRF52811
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.7 V	1.7 V

ISP1907 Series

RF TXRX MOD BT /ANT CHIP SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Serial Interfaces	RF Family/Standard	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity	Current - Receiving	Utilized IC / Part	Memory Size	Mounting Type	Package / Case	Protocol	Antenna Type	Data Rate	Current - Transmitting [Max]	Current - Transmitting [Min]	Frequency [Max]	Frequency [Min]	Frequency	Supplied Contents	For Use With/Related Products	Type
Insight SIP ISP1907-HT-RS	-40 °C	105 ░C	ADC, GPIO, I2C, PDM, SPI, UART, USB	802.15.4, Bluetooth/ANT	8 dBm	3.6 V	1.7 V	-104 dBm	6 mA	nRF52833	128 kB, 512 kB	Surface Mount	62-SMD Module	ANT®, Bluetooth v5.1, Thread, Zigbee®	Integrated, Chip	2 Mbps	6.1 mA	3.5 mA	2.5 GHz	2.36 GHz
Insight SIP ISP1907-LL-JT	-40 °C	85 °C	ADC, GPIO, I2C, PDM, SPI, UART	802.15.4, Bluetooth/ANT	4 dBm	3.6 V	1.7 V	-104 dBm	6.1 mA	nRF52811	1.5 Mb, 24 kB	Surface Mount	62-SMD Module	ANT®, Bluetooth v5.1, Thread, Zigbee®	Integrated, Chip	2 Mbps	5.8 mA	3.4 mA	2.5 GHz	2.36 GHz
Insight SIP ISP1907-LL-RS	-40 °C	85 °C	ADC, GPIO, I2C, PDM, SPI, UART	802.15.4, Bluetooth/ANT	4 dBm	3.6 V	1.7 V	-104 dBm	6.1 mA	nRF52811	1.5 Mb, 24 kB	Surface Mount	62-SMD Module	ANT®, Bluetooth v5.1, Thread, Zigbee®	Integrated, Chip	2 Mbps	5.8 mA	3.4 mA	2.5 GHz	2.36 GHz
Insight SIP ISP1907-LL-R2	-40 °C	85 °C	ADC, GPIO, I2C, PDM, SPI, UART	802.15.4, Bluetooth/ANT	4 dBm	3.6 V	1.7 V	-104 dBm	6.1 mA	nRF52811	1.5 Mb, 24 kB	Surface Mount	62-SMD Module	ANT®, Bluetooth v5.1, Thread, Zigbee®	Integrated, Chip	2 Mbps	5.8 mA	3.4 mA	2.5 GHz	2.36 GHz
Insight SIP ISP1907-HT-EB																					2.4 GHz	Board(s)	ISP1907	Bluetooth® 5.x (BLE), Transceiver
Insight SIP ISP1907-LL-TB																					2.4 GHz	Board(s)	ISP1907	Bluetooth® 5.x (BLE), Transceiver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 8.48

Description

General part information

ISP1907 Series

802.15.4, Bluetooth/ANT ANT®, Bluetooth v5.1, Thread, Zigbee® Transceiver Module 2.36GHz ~ 2.5GHz Integrated, Chip Surface Mount
