HPM-05-02-T-S-RA
ActiveSamtec Inc.

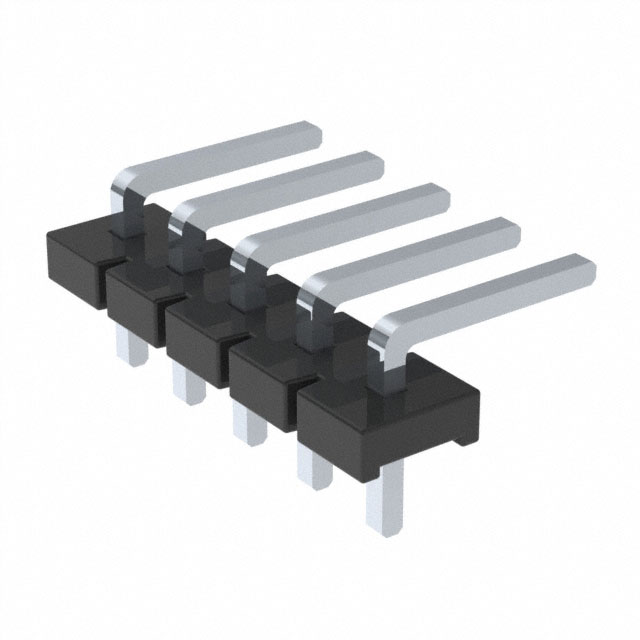

CONN HEADER R/A 5POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
HPM-05-02-T-S-RA
ActiveSamtec Inc.
CONN HEADER R/A 5POS 5.08MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HPM-05-02-T-S-RA |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating [x] | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm |
| Contact Length - Post | 0.18 in |
| Contact Length - Post | 4.57 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 5.08 mm |
| Pitch - Mating | 0.2 in |
| Shrouding | Unshrouded |
| Termination | Solder |
| Voltage Rating | 1200 VDC, 850 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.09 | |
| 10 | $ 1.59 | |||
| 100 | $ 1.23 | |||
| 500 | $ 1.15 | |||
Description
General part information
HPM-05 Series
Connector Header Through Hole, Right Angle 5 position 0.200" (5.08mm)
