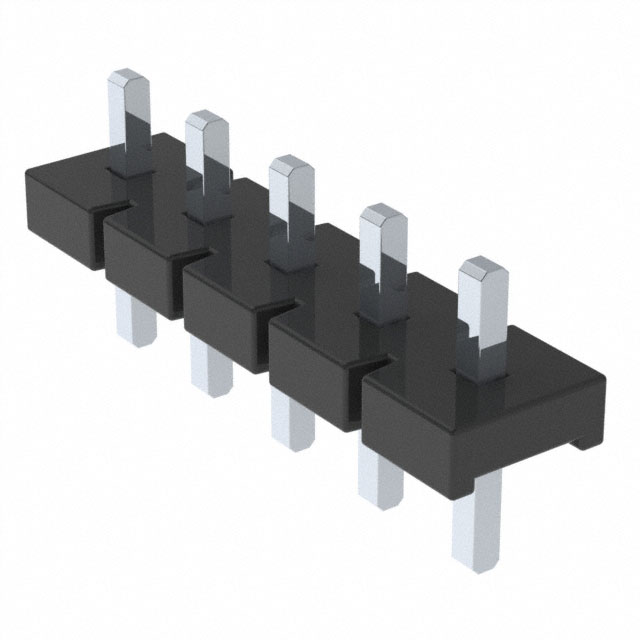

HPM-05-05-T-S

Active

Samtec Inc.

CONN HEADER VERT 5POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHPM Series Other Related Documents 01 HPM Datasheet +1

HPM-05-05-T-S

Active

Samtec Inc.

CONN HEADER VERT 5POS 5.08MM

Deep-Dive with AI

DocumentsHPM Series Other Related Documents 01 HPM Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HPM-05-05-T-S

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.15 in
Contact Length - Mating	3.81 mm
Contact Length - Post	0.18 in
Contact Length - Post	4.57 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.43 in
Overall Contact Length	10.92 mm
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	1200 VDC, 850 VAC

HPM-05 Series

Part	Contact Finish - Post	Insulation Material	Fastening Type	Voltage Rating	Contact Shape	Number of Positions Loaded	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Termination	Number of Rows	Contact Material	Contact Length - Post	Contact Length - Post	Shrouding	Features	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. HPM-05-05-T-S	Tin	Polybutylene Terephthalate (PBT)	Push-Pull	850 VAC 1200 VDC	Square	All	Black	0.43 in	10.92 mm	0.15 in	3.81 mm	Through Hole	Male Pin	5.08 mm	0.2 in	UL94 V-0	0.1 in	2.54 mm	105 ░C	-55 °C	Header	Solder	1	Copper Alloy	0.18 in	4.57 mm	Unshrouded
Samtec Inc. HPM-05-02-TM-S-RA	Tin	Polybutylene Terephthalate (PBT)	Push-Pull	850 VAC 1200 VDC	Square	All	Black					Through Hole Right Angle	Male Pin	5.08 mm	0.2 in	UL94 V-0	0.1 in	2.54 mm	105 ░C	-55 °C	Header	Solder	1	Copper Alloy			Unshrouded
Samtec Inc. HPM-05-02-T-S-VS	Tin	Liquid Crystal Polymer (LCP)	Push-Pull	850 VAC 1200 VDC	Square	All	Natural					Surface Mount	Male Pin	5.08 mm	0.2 in	UL94 V-0	0.1 in	2.54 mm	105 ░C	-55 °C	Header	Solder	1	Copper Alloy			Unshrouded
Samtec Inc. HPM-05-01-T-S	Tin	Polybutylene Terephthalate (PBT)	Push-Pull	850 VAC 1200 VDC	Square	All	Black	0.75 in	19.05 mm	0.47 in	11.94 mm	Through Hole	Male Pin	5.08 mm	0.2 in	UL94 V-0	0.1 in	2.54 mm	105 ░C	-55 °C	Header	Solder	1	Copper Alloy	0.18 in	4.57 mm	Unshrouded
Samtec Inc. HPM-05-01-T-S-VS-P	Tin	Liquid Crystal Polymer (LCP)	Push-Pull	850 VAC 1200 VDC	Square	All	Natural					Surface Mount	Male Pin	5.08 mm	0.2 in	UL94 V-0	0.1 in	2.54 mm	105 ░C	-55 °C	Header	Solder	1	Copper Alloy			Unshrouded	Pick and Place
Samtec Inc. HPM-05-02-T-S	Tin	Polybutylene Terephthalate (PBT)	Push-Pull	850 VAC 1200 VDC	Square	All	Black	0.8 in	20.32 mm			Through Hole	Male Pin	5.08 mm	0.2 in	UL94 V-0	0.1 in	2.54 mm	105 ░C	-55 °C	Header	Solder	1	Copper Alloy	0.18 in	4.57 mm	Unshrouded		13.21 mm	0.52 in
Samtec Inc. HPM-05-01-T-S-VS	Tin	Liquid Crystal Polymer (LCP)	Push-Pull	850 VAC 1200 VDC	Square	All	Natural					Surface Mount	Male Pin	5.08 mm	0.2 in	UL94 V-0	0.1 in	2.54 mm	105 ░C	-55 °C	Header	Solder	1	Copper Alloy			Unshrouded
Samtec Inc. HPM-05-02-T-S-RA	Tin	Polybutylene Terephthalate (PBT)	Push-Pull	850 VAC 1200 VDC	Square	All	Black					Through Hole Right Angle	Male Pin	5.08 mm	0.2 in	UL94 V-0	0.1 in	2.54 mm	105 ░C	-55 °C	Header	Solder	1	Copper Alloy	0.18 in	4.57 mm	Unshrouded		8.08 mm	0.318 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.62
		10	$ 2.00
		100	$ 1.54
		500	$ 1.30
		1000	$ 1.21
		5000	$ 1.03
		10000	$ 1.00

Description

General part information

HPM-05 Series

Connector Header Through Hole 5 position 0.200" (5.08mm)

Documents

Technical documentation and resources

HPM Series Other Related Documents 01

HPM Datasheet

Datasheet
