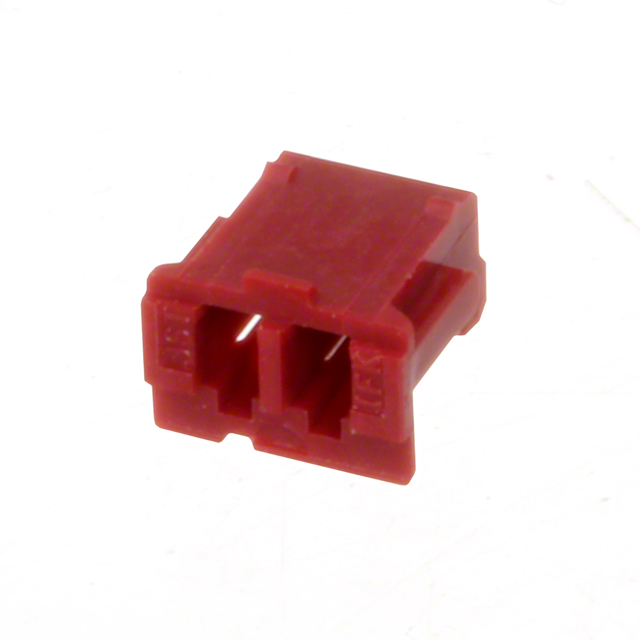

ZHR-2-R

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 1.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZHR-2-R

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 1.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.04

Description

General part information

ZHR Series

2 Rectangular Connectors - Housings Receptacle Red 0.059" (1.50mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZHR-2-R	ZHR Series

Color	Red	Black, Natural, Red, Green, Blue
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2 - 13
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	1.5 mm	1.5 mm
Pitch [x]	0.059 in	0.059 in

ZHR Series

CONN RCPT HSG 4POS 1.50MM

Part	Connector Type	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Material	Color	Number of Rows	Note	Contact Termination	Pitch [x]	Pitch [x]
JST Sales America Inc. ZHR-4-K	Receptacle	Free Hanging (In-Line)	4	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Black	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-6	Receptacle	Free Hanging (In-Line)	6	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-3	Receptacle	Free Hanging (In-Line)		-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-2-R	Receptacle	Free Hanging (In-Line)	2	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Red	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-7	Receptacle	Free Hanging (In-Line)	7	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-10	Receptacle	Free Hanging (In-Line)	10	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-4	Receptacle	Free Hanging (In-Line)	4	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-2	Receptacle	Free Hanging (In-Line)	2	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-12	Receptacle	Free Hanging (In-Line)	12	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-11	Receptacle	Free Hanging (In-Line)	11	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
