ZHR-12

Active

JST Sales America Inc.

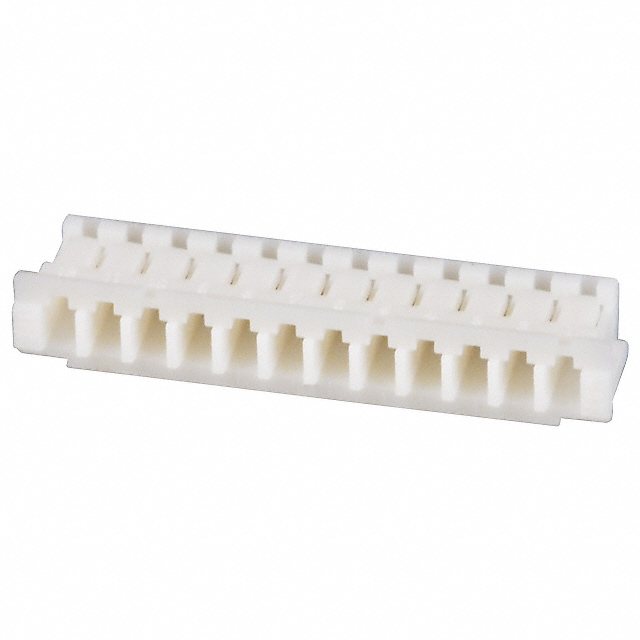

CONN RCPT HSG 12POS 1.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

ZHR-12

Active

JST Sales America Inc.

CONN RCPT HSG 12POS 1.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZHR-12	ZHR Series

Color	Natural	Black, Natural, Red, Green, Blue
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	12	2 - 13
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	1.5 mm	1.5 mm
Pitch [x]	0.059 in	0.059 in

ZHR Series

CONN RCPT HSG 4POS 1.50MM

Part	Connector Type	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Material	Color	Number of Rows	Note	Contact Termination	Pitch [x]	Pitch [x]
JST Sales America Inc. ZHR-4-K	Receptacle	Free Hanging (In-Line)	4	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Black	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-6	Receptacle	Free Hanging (In-Line)	6	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-3	Receptacle	Free Hanging (In-Line)		-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-2-R	Receptacle	Free Hanging (In-Line)	2	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Red	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-7	Receptacle	Free Hanging (In-Line)	7	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-10	Receptacle	Free Hanging (In-Line)	10	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-4	Receptacle	Free Hanging (In-Line)	4	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-2	Receptacle	Free Hanging (In-Line)	2	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-12	Receptacle	Free Hanging (In-Line)	12	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in
JST Sales America Inc. ZHR-11	Receptacle	Free Hanging (In-Line)	11	-25 °C	85 °C	Female Socket	Polyamide (PA66), Nylon 6/6	Natural	1	Contacts Not Included	Crimp	1.5 mm	0.059 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.26
		10	$ 0.22
		100	$ 0.17
		1000	$ 0.12
		5000	$ 0.10
		10000	$ 0.09

Description

General part information

ZHR Series

12 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
